ISO17357 Standard 3.3*6.5M 50Kpa Black Pneumatic Rubber Fender For Sale

Qingdao Henger Shipping Supplies Co., Ltd

Qingdao Henger Shipping Supplies Co., Ltd is a most professional manufacturer in Shipping Supplies with 20 years production experience. Mainly supply you shipping supplies.

Main products:

Pneumatic rubber fender;

Floating foam filled fender;

Marine rubber airbag;

D-type /V-type/Cylindrical-type/Cell-type rubber fenders;

Mooring buoy;

Anchor;

Chain;

Bollard;

Mooring rope

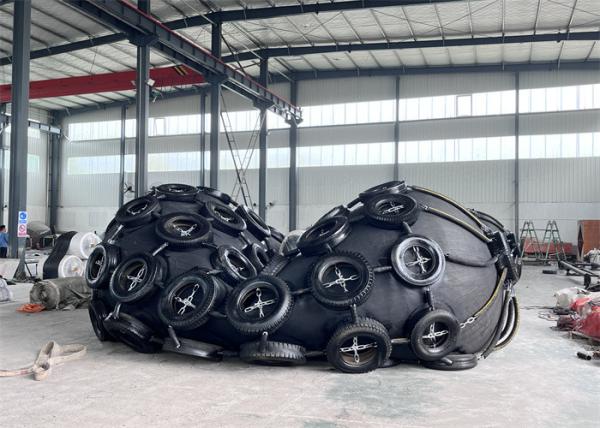

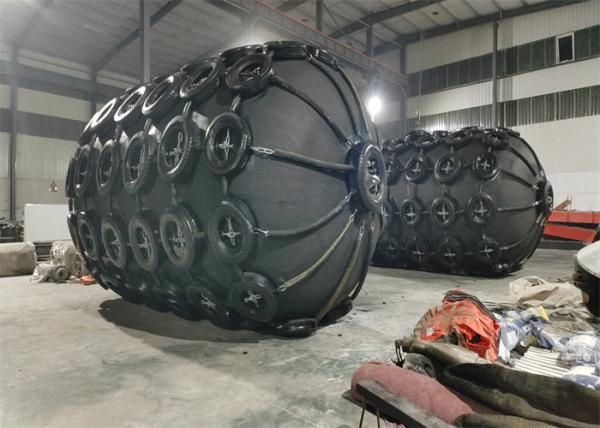

3.3*6.5M Pneumatic Rubber Fender:

ISO17357:2014 Floating pneumatic rubber fender is an anti-clossion device for marine application in the world. It is made of synthetic-cord-reinforced rubber sheet with compressed air inside to enable it to float on the sea surface and work as a shock absorber when ship to ship transfer operation and ship to dock berthing and mooring operations.

Advantage:

The basic body construction of Floating pneumatic rubber fender consists of outer rubber layers, synthetic-tire-cord layers and inner layers

Net Type Pneumatic Fenders are covered with a chain net, wire net, or fiber net. Each end of longitudinal chains, wires, or fibers is linked together with one or two ring(s), which shall be connected with a guy chain or guy-rope. Usually, these nets have used tires together with rubber sleeves for additional protection to the fender body, except for fiber net which has only rubber sleeves. Chain nets last longer against corrosion, while wire nets are light and more easily repaired.

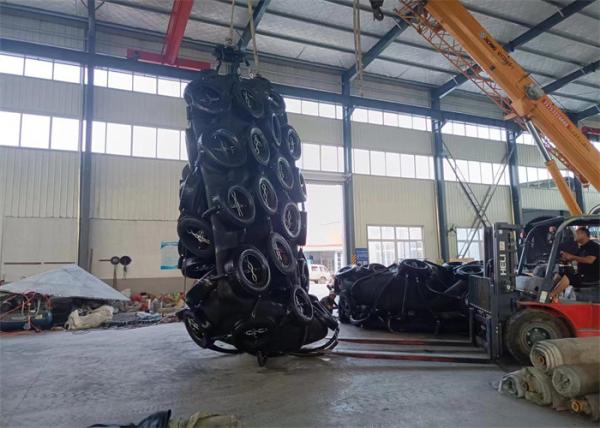

The 3.3*6.5M fenders are generally installed bare, because the size after deflation is relatively large, and a 3.3*6.5M fender with chain tires can be loaded into a 20GP container, and 2 fenders need loaded into a 40HQ container, 3 fenders need to be loaded into a 40OT container.

Parameters:

Fender body size: 3.3*6.5M

With CTN: 3.62*6.5M

Weight with CNT: 3500KGS

Initial Pressure: 50Kpa

Reaction Force: 3015Kn

Energy ABSorption: 1814Kn M

Color:

Regular Color: Black

Other Color: White and Ship Gray (According to your request)

Application:

1. STD anti-collision

2. STS anti-collision

Applicable industries:

1. Oil and Gas

2. STS/STD

3. Shipping Industry

4. Ocean Engineering

5. Maritime Bureau

6. Offshore Service

7. Shipyard/Dockyard

50Kpa/80Kpa Pneumatic Rubber Fenders Technical Parameters:

Our Hot-sellers size is :

1000*1500mm/1000*2000mm/1200*2000mm/1500*3000mm/1700*3000mm/2000*3500mm/2500*4000mm/2500*5500mm/3300*6500mm/4500*9000mm
