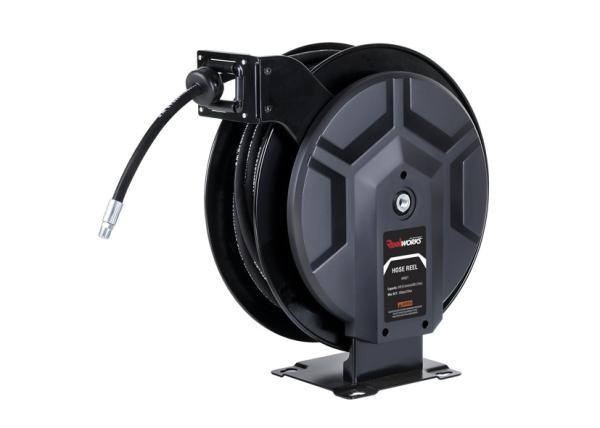

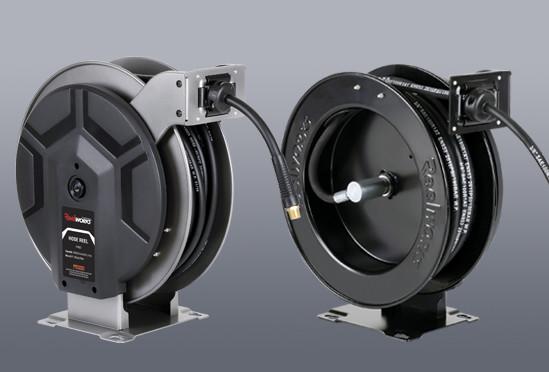

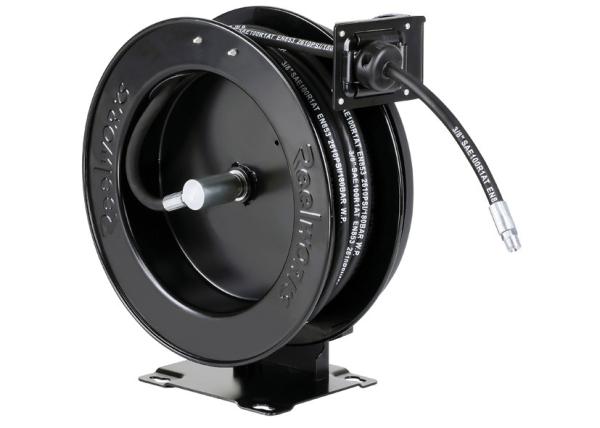

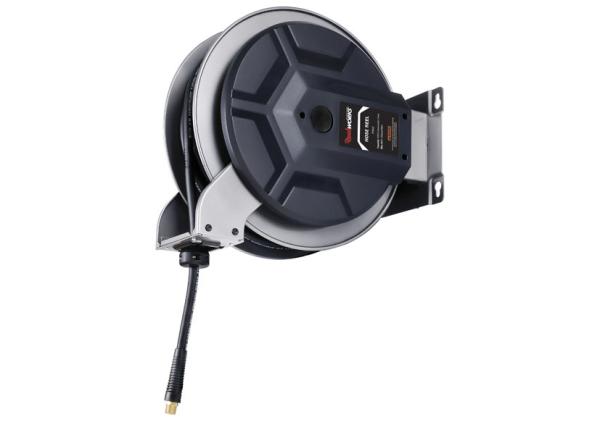

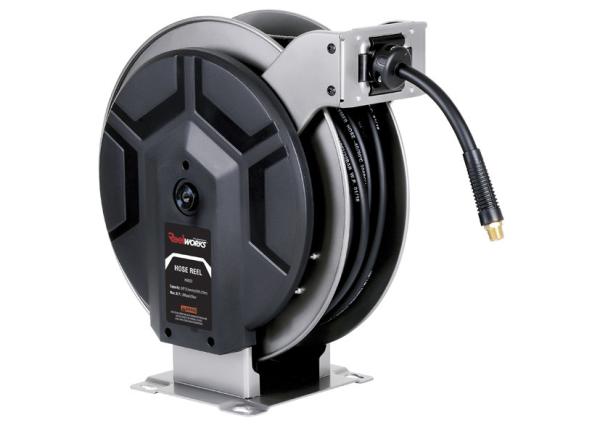

Double Arm 82ft Air Water Hose Reel Slow Retraction
Double Arm 82ft Air Water Hose Reel Slow Retraction
Double Arm 82ft Air Water Hose Reel Slow Retraction
Double Arm 82ft Air Water Hose Reel Slow Retraction
Double Arm 82ft Air Water Hose Reel Slow Retraction
Double Arm 82ft Air Water Hose Reel Slow Retraction
Double Arm 82ft Air Water Hose Reel Slow Retraction
Double Arm 82ft Air Water Hose Reel Slow Retraction
Double Arm 82ft Air Water Hose Reel Slow Retraction
Double Arm 82ft Air Water Hose Reel Slow Retraction
Specifications
Brand Name :
Reelworks
Model Number :
HR82X
Place of Origin :
China
MOQ :
50pcs
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
40000pcs/month
Delivery Time :
45 Working Day
Packaging Details :
1pc in carton and in Pallet
Product Name :
Single/ Double Guide Air and Water Hose Reel
Hose Length :
15M-25M
Application :
Air / Water / Oil / Grease
Function :
Slow retraction device
Style :
Single/double guide arm
Design :
MODULAR DESIGN
Device :
Speed control device
Hose :
Low/medium/high pressure
Installation :
Wall; Bench ; Ceiling
Working Pressure :
150psi-5800psi
Warrnty :
3 years
Description

DOUBLE/SINGLE GUIDE ARM SPRING DRIVEN HOSE REEL 82FT Hose Length

Specification:

HR82X LOW PRESSURE AIR/WATER HOSE REELS Hose maximum temperature 176˚F (80˚C).
MODELHose I.D.Hose LengthWorking PressureInlet/OutletHose MaterialPackagePackageQ'TY 20'CY
HR.821.093/8"50FT300PSI3/8" NPThybrid polymer20.3*10*23.6"40.5lbs390 pcs
HR.821.021/2"50FT300PSI1/2"NPThybrid polymer20.3*10*23.6"40.5lbs390 pcs
HR.825.223/8"25m20bar3/8" BSPNBR Rubber56*25.5*65cm22.5kgs324 pcs
HR822.043/8"50FT300PSI3/8" NPThybrid polymer20.3*12.4*23.6"44.4lbs321pcs

HR82X MEDIUM PRESSURE WATER/OIL REELS Hose maximum temperature 210˚F (100˚C).
MODELHose I.D.Hose LengthWorking PressureInlet/OutletHose MaterialPackageN.W/G.WQ'TY 20'CY
HR821.053/8"50FT2610PSI3/8"NPTS.A.E.100R1 Wire Braid20.3*10*23.6"47.3lbs390pcs
HR822.091/2"50FT3230PSI1/2"NPTS.A.E.100R1 Wire Braid20.3*10*23.6"53.9lbs321pcs

HR82X HIGH PRESSURE GREASE REELS Hose maximum temperature 210˚F (100˚C).
MODELHose I.D.Hose LengthWorking PressureInlet/OutletHose MaterialPackageN.W/G.WQ'TY 20'CY
HR821.071/4"50FT5800PSI1/4"NPTS.A.E.100R2 Wire Braid20.3*10*23.6"51lbs390pcs
HR821.273/8"20M330BAR3/8"BSPS.A.E.100R2 Wire Braid56*25.5*65cm31.2kgs324pcs

LOW PRESSURE UREA/DEF REELS Hose maximum temperature 210˚F (100˚C).
MODELHose I.D.Hose LengthWorking PressureInlet/OutletHose MaterialPackageN.W/G.WQ'TY 20'CY
HR825.153/4"30FT150PSI3/4"NPTEDPM Rubber22*10*25.6"51.7lbs324pcs
HR825.283/4"10m10bar3/4"BSPEDPM Rubber56*25.5*65cm23.5kgs324pcs

LOW PRESSURE FUEL REELS Hose maximum temperature 176˚F (80˚C).
MODELHose I.D.Hose LengthWorking PressureInlet/OutletHose MaterialPackageN.W/G.WQ'TY 20'CY
HR825.293/4"10M10bar3/4" BSPNBR Rubber56*25.5*65cm23.5kgs324pcs
HR825.163/4"30FT150psi3/4" NPTNBR Rubber22*10*25.6"51.7lbs324pcs

OXYGEN-ACETYLENE HOSE REELS

Hose maximum temperature 176˚F (80˚C).

MODELHose I.D.Hose LengthWorking PressureInlet/OutletHose MaterialPackageN.W/G.WQ'TY 20'CY
HR825.171/4"65FT300PSI9/16" UNFEPDM Rubber22*10*25.6"61.6lbs324 pcs
HR825.301/4"20m20bar1/4" BSPEPDM Rubber56*25.5*65cm26.5 kgs324pcs



Descriptions:

• Perfect for application in industries, vehicle repair & maintenance workshops
• Heavy duty designs were selected to meet the demands of an industrial grade
reel for continuous, trouble-free operation
Type of Fluid to be Delivered and Pressure of Fluid
Air-Water 20barDEF 10bar
Oil and similar products 155barDEF 10bar
Oil and similar products 155barOil 400bar
Diesel fuel 10barWelding 20bar

Hose can be STOPPED AT ANY POINT as users desire
With more secure experience, The RETRACTION time is twice SLOW than usual
MODULAR DESIGN makes inventory and maintenance more convenient
