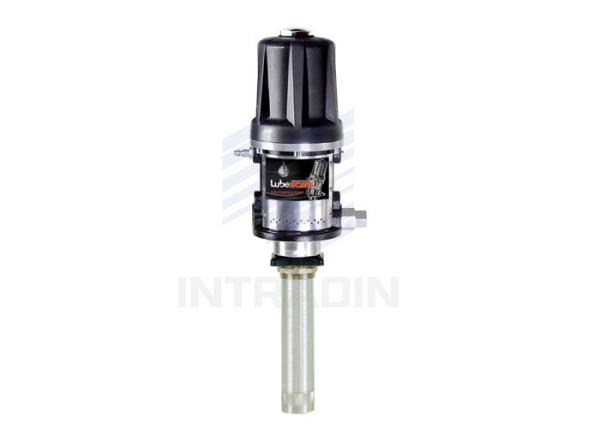

9 / 1 Air Driven Heavy Duty Oil Pump For 5 - 12 Bar Air Inlet Pressure Anti - Corrosion
9 / 1 Air Driven Heavy Duty Oil Pump For 5 - 12 Bar Air Inlet Pressure Anti - Corrosion
9 / 1 Air Driven Heavy Duty Oil Pump For 5 - 12 Bar Air Inlet Pressure Anti - Corrosion
9 / 1 Air Driven Heavy Duty Oil Pump For 5 - 12 Bar Air Inlet Pressure Anti - Corrosion
Specifications
Brand Name :
Lubeworks
Model Number :
17130901
Place of Origin :
China
MOQ :
50pcs
Price :
negotiation
Payment Terms :
T/T or L/C at sight
Supply Ability :
4,000pcs per month
Delivery Time :
40 working days after received your payment
Packaging Details :
1 piece in carton and pallet
Product Name :
Oil pump
Drum Application :
Wall Mounted
Pressure Ratio :
9:1
Air inlet pressure :
5-12bar / 70-180psi
Max. fluid pressure :
108bar / 2160ps
Accessory :
3/4"M - 1/2"F reducer
Description

9:1 Air Operated Pneumatic Oil Pump For 5-12 Bar Air inlet pressure

9:1 Air operated oil transfer pump

Specifications:

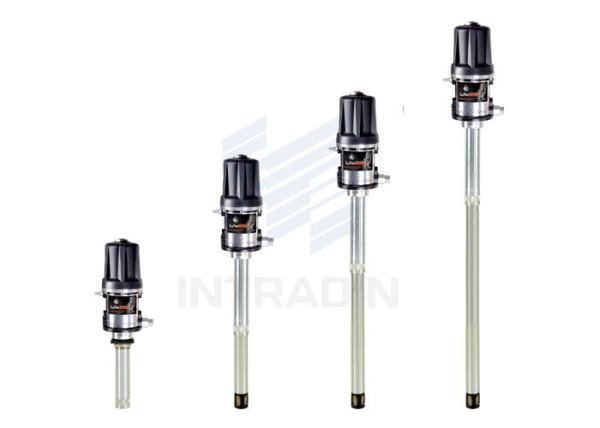

Item No. 17130901/17130903 17130931/17130933 17130961/17130963 17130971/17130973
Drum application Pail 50-60L / 13-16gallon 180-220L / 48-58gallon 1040L / 275gallon
Pressure ratio 9:1 9:1 9:1 9:1
Air inlet pressure 5-12bar / 70-180psi 5-12bar / 70-180psi 5-12bar / 70-180psi 5-12bar / 70-180psi
Max. fluid pressure 108bar / 2160ps 108bar / 2160ps 108bar / 2160ps 108bar / 2160ps
Air motor effective diameter 76mm / 3" 76mm / 3" 76mm / 3" 76mm / 3"
Air consumption (min) @ 8bar 600L @ 8bar 600L @ 8bar 600L @ 8bar 600L
　 @ 115psi / 21.6CFM @ 115psi / 21.6CFM @ 115psi / 21.6CFM @ 115psi / 21.6CFM
Max.free flow rate (min) 20L / 5.8gallon 20L / 5.8gallon 20L / 5.8gallon 20L / 5.8gallon
Suction tube diameter 42mm / 1-5/8" 42mm / 1-5/8" 42mm / 1-5/8" 42mm / 1-5/8"
Suction tube length 270mm / 11" 730mm/29" 940mm / 37" 1190mm / 46"
Air inlet connection 1/4" quick plug 1/4" quick plug 1/4" quick plug 1/4" quick plug
1/4" NPT Female 1/4" NPT Female 1/4" NPT Female 1/4" NPT Female
Oil outlet connection 3/4"F 3/4"F 3/4"F 3/4"F
Accessory 3/4"M - 1/2"F reducer 3/4"M - 1/2"F reducer 3/4"M - 1/2"F reducer 3/4"M - 1/2"F reducer
Weight 7.5kgs / 15.9lbs 8.4kgs / 18.5lbs 8.8kgs / 19.4lbs 9.3kgs / 20.5lbs
Package size 72×25×19cm 118×25×19cm 139×25×19cm 165×25×19cm

Description:

• The 9:1 is perfect for fluid oil transfer in high volume and longer distance applications such
as truck shop service fleet facilities and in-plant applications
• Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel,
aluminum and chrome on key components for longer life
• Few moving parts in the air motor assembly means less downtime and low repair cost
• Large air porting design provides efficient use of compressed air supply for continuous
pump operation without icing
