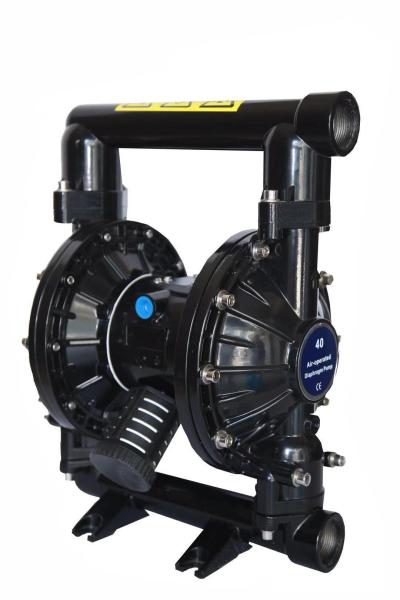

High Pressure Air Driven Double Diaphragm Pump For Foodstuff Pharmaceutical

What are Air Driven Double Diaphragm Pump ?

These are pumps without any electrical motor and run with an air pressure ranging from 1.3 to 8.0 bar. They are simple to run with minimum maintainance cost and down time. All type of liquids can be pumped. Only the MOC and capacity of pumps will vary depending on application and buyer requirements. Sizes vary from 1/4" to 3" and they are available in PP, PVDF, SS & Aluminium Models.

Air Driven Double Diaphragm Pump Parameters

Air diaphragm pump(also know as a Membrane pump, air operated double diaphragm pump(AOOD) or pneumatic diaphragm pump)that uses a combination of the reciprocating action of a rubber,thermoplastic or diaphragm and suitable valves either side of the diaphragm (check valve,butterfly valves,flap valves,or any other form of shut-off valves) to pump a fluid.

Air Driven Double Diaphragm Pump Pumping for :

1. Waste water

2. Volatile liquid

3. Flammable and explosive liquid

4. Highly toxic liquid

5. Corrosive liquids: Strong acid and alkali

6. High temperature liquid

7. Viscous liquid: Food industry, Glue, Coating

A 2 5 X X - X X X - X (model selection)

Form of pipe mouth:A-BSP B-NPT(F) C-Flange

Diaphragm material:9 – Santoprene H – Hytrel T - PTFE/Santoprene

Ball material:9 -Santoprene H – Hytre T – PTFE A - Acetal

Ball seat material:P/K –Polypropylene/Kynoar SS –Stainless Steel

Pump material: SS –Stainless Steel AL –Aluminum Alloy CI- Carbon Steel P/K –Polypropylene/Kynoar

Maximum Applied Temperature Limits (diaphragm / ball / seal material)

Acetal ···············································40°- 150°F (4.4- 65.5°C)

Santoprene········································-40°- 225°F (-40°- 107.2°C) ···············································40°- 220°F (4.4°- 104°C) Nitrile················································10°- 180°F (-12°- 82°C) Viton·················································-40°- 350°F (-40°-176.6°C) Hytrel················································-20°-150°F (-12°- 93°C) Kynar················································10°-200°F (-28.9°- 65.5°C) Polypropylene·····································32°- 175°F (0-79.4°C)

1” Flow diagram
