Silent Air Double 193M Waste Oil Diaphragm Pump
Silent Air Double 193M Waste Oil Diaphragm Pump
Silent Air Double 193M Waste Oil Diaphragm Pump
Silent Air Double 193M Waste Oil Diaphragm Pump
Silent Air Double 193M Waste Oil Diaphragm Pump
Silent Air Double 193M Waste Oil Diaphragm Pump
Specifications
Brand Name :
BOGEN
Model Number :
Air Driven Diaphragm Pump
Certification :
CE EX ISO EAC
Place of Origin :
Guangzhou
MOQ :
Negotiation
Price :
Netotiable
Payment Terms :
FOB T/T
Supply Ability :
10000/mon
Delivery Time :
5days
Packaging Details :
carton
hs code :
8413501090
product :
Air Double Diaphragm Pump
Maximum particle size :
6MM
Feature :
Silent
Weight :
12kgs
Model number :
BG40AL-PTT3-A
Dimensions(mm) :
257*142*293
Max flow rate :
358 L/Min
Max pressure :
8.4 bar
Description

AODD PUMP & pneumatic diaphragm pump

Air Double Diaphragm Pump Parameters

Item Description Unit Reference Figure
1 Maximum air inlet pressure Mpa 0.83
2 Maximum flow rate L/Min 173
3 Maximum lift M 70
4 Maximum outlet pressure Mpa 0.83
5 Maximum particle size mm 6
6 Weight kg 14
7 Noise level db ＜70

Air Double Diaphragm Pump Application


1. Chemical industry: acid, alkali, solvent, suspension, dispersion system.

2. Petrochemical industry: crude oil, thickened oil, grease, mud, sludge, etc.
3. Coating industry: resin, solvent, colorant, paint, etc.
4. Daily chemical industry: detergent, shampoo,latex, emulsion, hand cream, surfactant.
5. Ceramic industry: mud, ceramic pulp, lime slurry, clay pulp.
6. Mining industry: coal slurry, magma, mud, mortar, explosive slurry, lubricating oil, etc.
7. Water treatment: lime slurry, soft sediment, sewage, chemicals, waste water.
8. Food industry: liquid semi-solid, chocolate, salt water, vinegar, syrup, vegetable oil,
soybean oil, honey, animal blood.
9. Pharmaceutical industry: solvent, acid, alkali, plant extract, ointment, plasma and other
pharmaceutical liquids.
10. Electronics industry: solvents, plating solutions, cleaning solutions, sulfuric acid, nitric
acid, spent acid, corrosive acids, polishing fluids.
11. Textile industry: dye chemicals, resins, glues, etc.
12. Construction industry: cement slurry, ceramic tile adhesive, rock slurry, ceiling finish,
etc.
13. Automotive: polished emulsion, oil, coolant, automotive primer, oil emulsions, varnish,
varnish additives, skimming solutions, paints, etc.
14. Furniture industry: binder, varnish, dispersion, solvents, colorants, white wood glue,
epoxy resin, starch binder.
15. Metallurgy, foundry and dyeing industry: metal paste, hydroxide and carbide paste, dust
washing pulp, etc.

Diaphragm Pump Parts

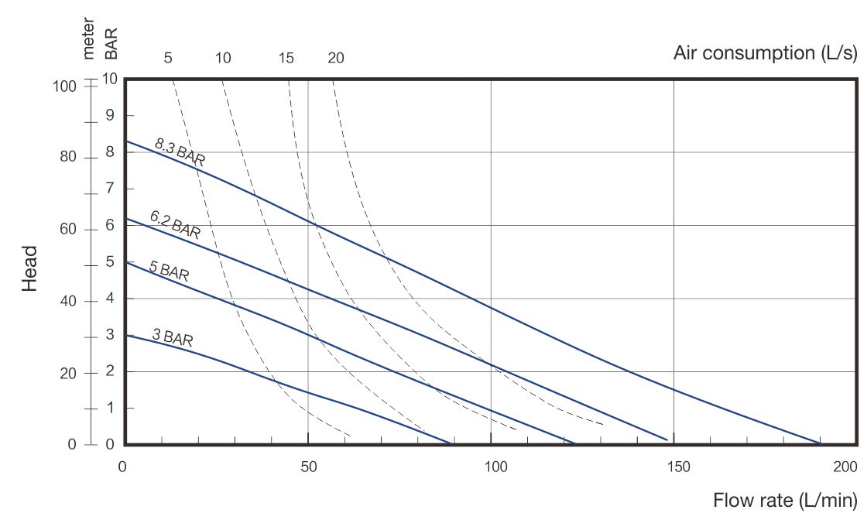

PERFORMANTCE CURVE

Silent Air Double 193M Waste Oil Diaphragm Pump

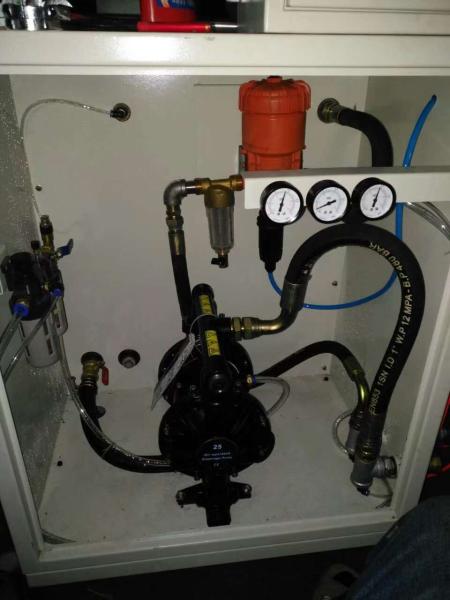

Application Case

Silent Air Double 193M Waste Oil Diaphragm Pump
