High Viscosity Pneumatic Diaphragm Pump Strong Temperature Resistance​

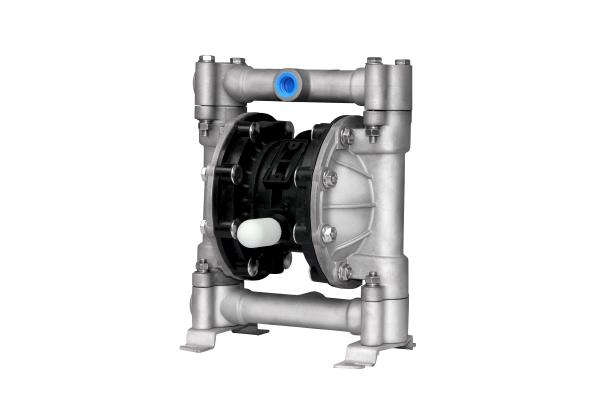

Pneumatic Diaphragm Pump Description

1. Double Diaphragm Pump Air Operated Double Diaphragm Pump Rubber Diaphragm for Pump for Food& Chemical, Chemical Resistant Diaphragm Pump is the new kind of transportation machine, adopting compress air, smoke and industry exhaust gas as power source.

2. It has two diaphragms, the compressed air come to the pump body to drive the pump in the constant action of sucking and releasing, so it can pump the liquids easily by this principle. Also it is very safe in dangerous environment since it has no electric motor.

Pneumatic Diaphragm Pump Application

Pneumatic Diaphragm Pump Parameters

BG15SS- X X - X X - XX (model selection)

Form of pipe mouth:A-BSP B-NPT(F) C-Flange

Diaphragm material:9 – Santoprene H – Hytrel T - PTFE/Santoprene

Ball material:9 -Santoprene H – Hytre T – PTFE A - Acetal

Ball seat material:P/K –Polypropylene/Kynoar SS –Stainless Steel

Pump material: SS –Stainless Steel AL –Aluminum Alloy CI- Carbon Steel P/K –Polypropylene/Kynoar

Pneumatic Diaphragm Pump Details

Maximum Applied Temperature Limits (diaphragm / ball / seal material)

Acetal ···············································40°- 150°F (4.4- 65.5°C)

Santoprene·········································-40°- 225°F (-40°- 107.2°C) ·················································40°- 220°F (4.4°- 104°C) Nitrile··················································10°- 180°F (-12°- 82°C) Viton···················································-40°- 350°F (-40°-176.6°C) Hytrel··················································-20°-150°F (-12°- 93°C) Kynar··················································10°-200°F (-28.9°- 65.5°C) Polypropylene·······································32°- 175°F (0-79.4°C)

Industrial Diaphragm Pump diagram
