NTP 48 B+C Netter Vibration Type Pneumatic Linear Vibrator For Silo Hopper
NTP 48 B+C Netter Vibration Type Pneumatic Linear Vibrator For Silo Hopper
Specifications
Frequency :
1328 to 4320 VPM
Force :
456 to 2039 N
Brand Name :
BRANDO
Model Number :
NTP 48
Certification :
None
Place of Origin :
Ningbo, China
MOQ :
5pcs
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
Negotiation
Packaging Details :
Box, Carton, Pallet
Product Name :
Pneumatic Vibrator
Working Pressure :
2 to 6 bar
Description

NTP 48 B+C Netter Vibration Type Pneumatic Linear Vibrator For Silo Hopper

NTP Series Pneumatic Linear Vibrators are especially suitable for knocking off material adhering to container walls in funnels, containers, silos and hoppers. Special features of NTP vibrators are: impacts like a rubber hammer or vibration with high peak acceleration.

The linear vibration is produced by a freely vibrating differential pressure piston. In a standard application, the piston knocks against an elastomer impact plate and works like a rubber hammer.

When used without an impact plate, the piston works against an air cushion and reduces noise. Hard knocking versions are available. The frequency can be adjusted by varying the pressure of the air supply and the amplitude by throttling the exhaust.

Technical Data:

Model

Unbalance

(cmkg)
Nominal Frequency
(min-1)
Centrifugal Force
(N)
Air Consumption
(l/min)
Sound Level
(dBA)
2 bar 4 bar 6 bar 2 bar 4 bar 6 bar 2 bar 4 bar 6 bar 2 bar to 6 bar 2 bar to 6 bar
NTP 18 B+C 0.06 0.06 0.06 6600 9420 11160 147 300 421 20 to 64 75 to 87
NTP 18 B 0.09 0.100 0.110 3828 4680 5490 69 118 183 12 to 67 65 to 77
NTP 25 B+C 0.144 0.163 0.196 5848 7000 8784 269 438 830 33 to 108 68 to 82
NTP 25 B 0.488 0.613 0.686 2645 3159 3602 190 341 487 23 to 92 64 to 73
NTP 32 B+C 0.602 0.665 0.665 2959 4080 5040 289 607 926 50 to 198 71 to 86
NTP 32 B 1.080 1.365 1.449 1824 2221 2614 197 369 543 37 to 143 64 to 77
NTP 48 B+C 2.081 1.992 1.992 2618 3456 4320 782 1305 2039 96 to 336 78 to 90
NTP 48 B 4.718 6.188 6.641 1328 1603 1963 456 872 1403 67 to 295 65 to 80

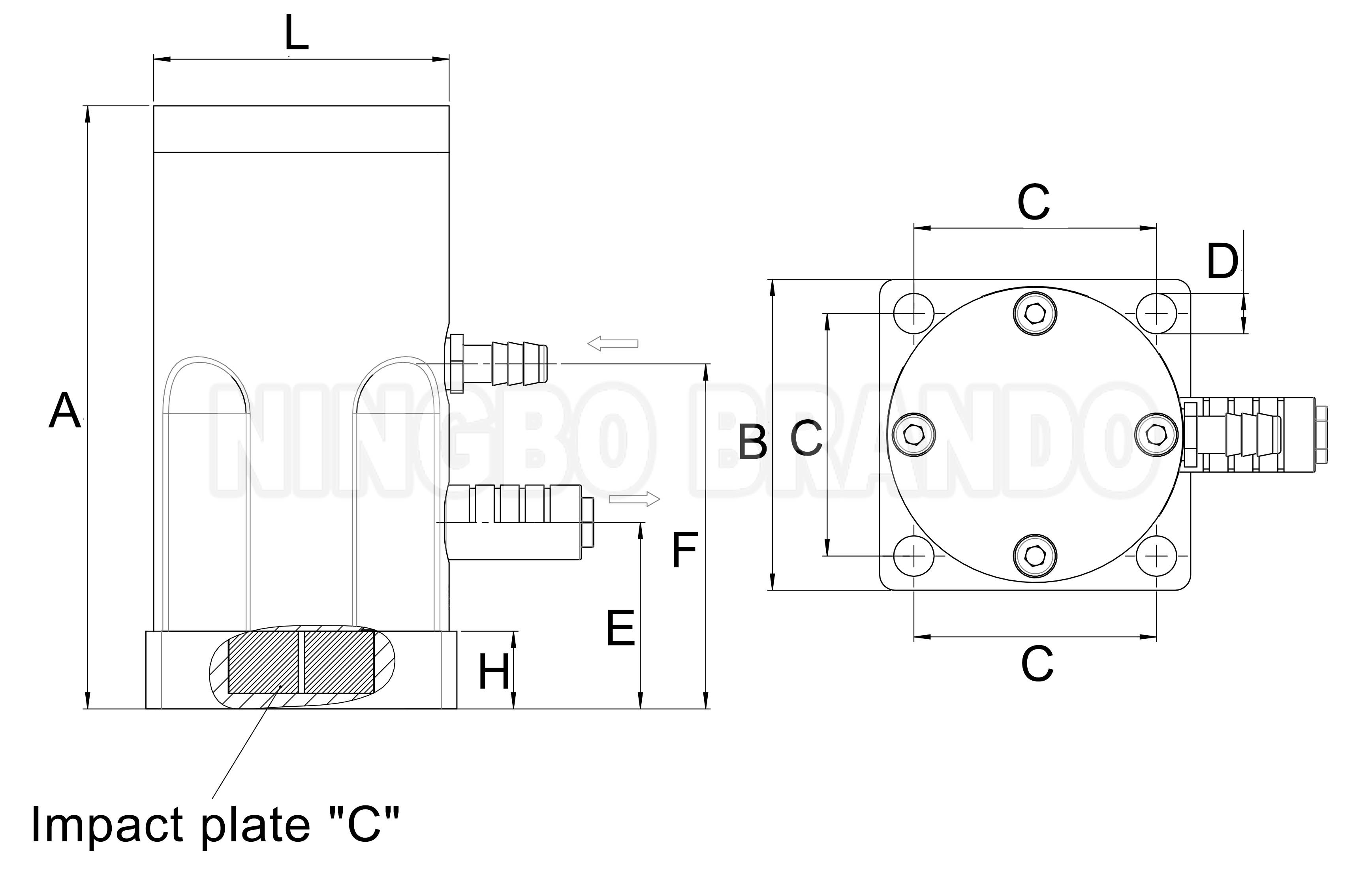

Main Dimension:

NTP 48 B+C Netter Vibration Type Pneumatic Linear Vibrator For Silo Hopper

Model
Port
A
B
C
D
E
F
H
L
NTP 18
M5
60.2
53
43
5.2
21.5
33.5
10.5
30
NTP 25
G1/8''
90
60
46
6.5
36
42.5
15
51
NTP 32
G1/4''
140
75
51
11
48
59
20
70
NTP 48
G3/8''
194
100
78
13
60
73
25
95
