2 inch Stainless Steel Normally Open Solenoid Valve 220V 12V 24V
2 inch Stainless Steel Normally Open Solenoid Valve 220V 12V 24V
Specifications
Brand Name :
BRANDO
Model Number :
2S500-50K
Certification :
None
Place of Origin :
CHINA
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Inner Box,Carton,Pallet
Port Size :
2''
Orifice Size :
50mm
Pressure Range :
0 To 8 Bar
Voltage :
2VDC, 24VDC, 24VAC, 110VAC, 220VAC
Action :
Direct Lifting Diaphragm
Media :
Water Air Gas
Body Material :
Stainless Steel
Diaphragm Material :
NBR, FKM, EPDM
Function :
2 Way Normally Open
Working Temperature :
BR: -5 To +80℃, EPDM: -5 To +120℃, FKM: -10 To +150℃
Description

2 inch Stainless Steel Normally Open Solenoid Valve 220V 12V 24V


2S-K series are 2 way normally open solenoid valves with port sizes from 3/8'' to 2''. The standard valve body material is stainless steel 304, and the standard diaphragm material is NBR, EPDM or FKM can be customized according to your requirements to control different media like water, air, gas and liquids, etc. The working pressure range is from 0 to 8 bar, and there are various voltages for you to choose, 12VDC, 24VDC, 24VAC, 110VAC or 220VAC. If you have demands, pls contact us!


Technical Data:

Model No
2S160-10K
2S160-15K
2S200-20K
2S250-25K
2S350-35K
2S400-40K
2S500-50K
Orifice Size
16mm
16mm
20mm
25mm
35mm
40mm
50mm
Port Size
3/8''
1/2''
3/4''
1''
1-1/4''
1-1/2''
2''
Body Material
Stainless Steel 304
Diaprhagm Material
NBR, EPDM, FKM
Working Medium
Water, Air, Gas, Liquid, etc
Operation
Direct Lifting Diaphragm
Function
2 Way Normally Open
Fluid Viscosity
20 CST below
Working Pressure
0 to 8 bar
Working Temperature
NBR: -5 to +80℃
EPDM: -5 to +120℃
FKM: -10 to +150℃
Voltage
12VDC, 24VDC, 24VAC, 110VAC, 220VAC

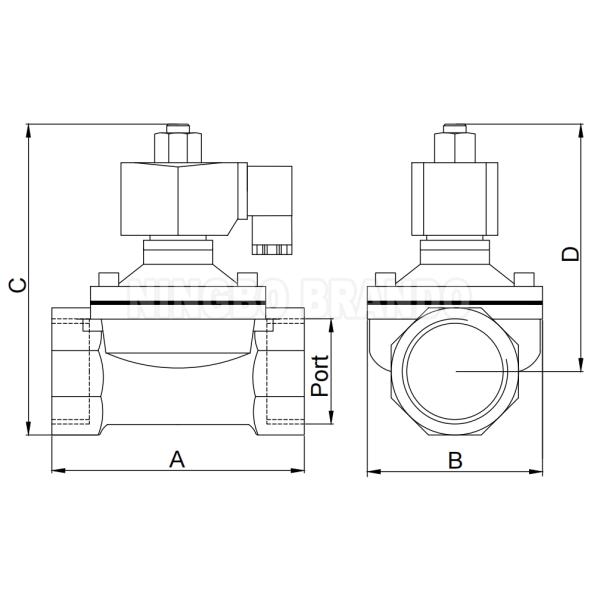

Main Dimension:

2 inch Stainless Steel Normally Open Solenoid Valve 220V 12V 24V

Model No
Port
A
B
C
D
2S160-10K
3/8''
63
56
181
118
2S160-15K
1/2''
63
56
181
118
2S200-20K
3/4''
66
56
122
123
2S250-25K
1''
90
76
130
147
2S350-35K
1-1/4''
99
76
134
160
2S400-40K
1-1/2''
115
93
160
165
2S500-50K
2''
133
93
170
176

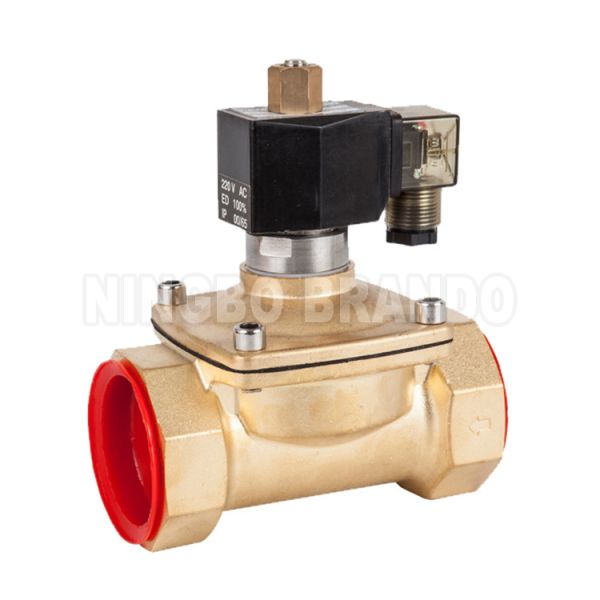

Solenoid Valve Assembly Display:

2 inch Stainless Steel Normally Open Solenoid Valve 220V 12V 24V 2 inch Stainless Steel Normally Open Solenoid Valve 220V 12V 24V




Similar Products:

2 inch Stainless Steel Normally Open Solenoid Valve 220V 12V 24V 2 inch Stainless Steel Normally Open Solenoid Valve 220V 12V 24V 2 inch Stainless Steel Normally Open Solenoid Valve 220V 12V 24V 2 inch Stainless Steel Normally Open Solenoid Valve 220V 12V 24V

Normally Open

3/8'' to 2'', 8 bar max

Normally Open

1/8'' or 1/4'', 10 bar max
Normally Open

1/8'' to 3/8'', 30 bar max

Normally Open

3/8'' to 2'', 16 bar max
