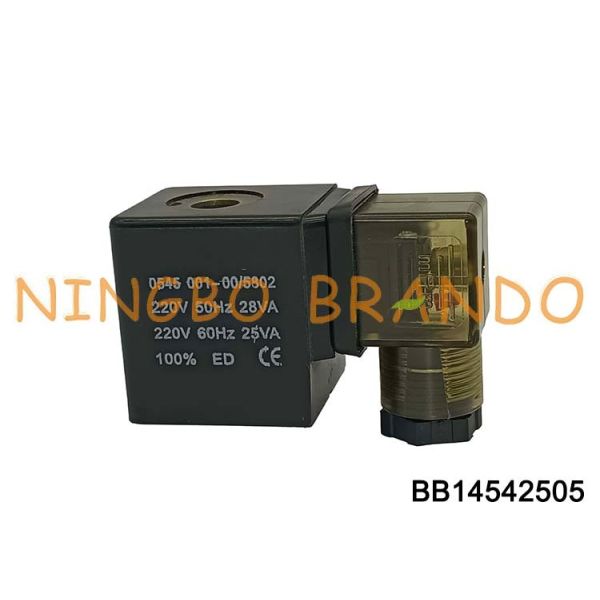

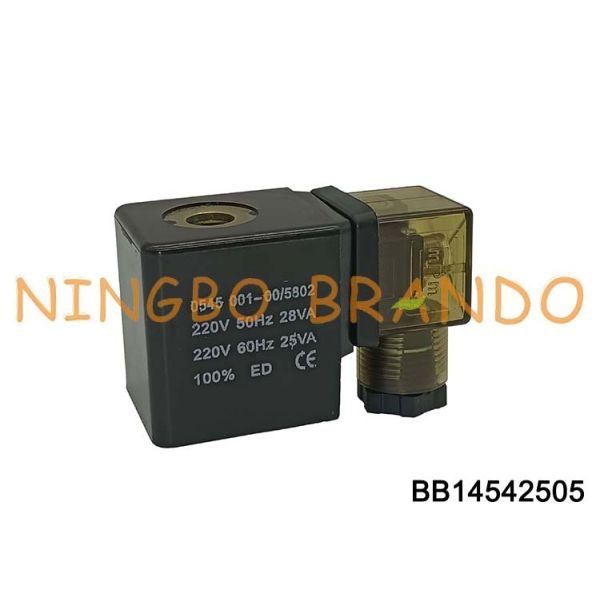

0545 00.1-00/5802 220V Solenoid Valve Coil 0545 for PU Series Valve
0545 00.1-00/5802 220V Solenoid Valve Coil 0545 for PU Series Valve
0545 00.1-00/5802 220V Solenoid Valve Coil 0545 for PU Series Valve
0545 00.1-00/5802 220V Solenoid Valve Coil 0545 for PU Series Valve
Specifications
Brand Name :
BRANDO
Model Number :
BB14542505
Certification :
None
Place of Origin :
Ningbo, China
MOQ :
200
Price :
Negotiation
Payment Terms :
T/T,PayPal,Western Union
Supply Ability :
100000pcs per month
Delivery Time :
Negotiation
Packaging Details :
inner boxes,cartons,pallets
Product Name :
Solenoid Valve Coil
Voltage :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Power :
18VA, 28VA, 14W, 20W
Connector :
DIN43650A
Description

0545 00.1-00/5802 220V Solenoid Valve Coil 0545 for PU Series Valve



This solenoid coil is same with Nass Magnet solenoid coil 0545, which is popularly used in Shako solenoid valves, like PU220A, PU225A, SPU225A, PU225S series. Coil Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC. Coil Power: 18VA, 28VA, 14W, 20W. The solenoid coil is integral in the operation of a solenoid valve. It is what converts the electric current into a magnetic field which in turn allows the operation of the solenoid valve.


Dimension & Data of 0545 Solenoid Coil, Armature:

0545 00.1-00/5802 220V Solenoid Valve Coil 0545 for PU Series Valve

BRANDO Model
BB14542505
Ordering Code
0545
Voltage
220VAC, 110VAC,
24VDC, 12VDC
Power
18VA, 28VA, 14W, 20W
Other voltage and power can be customized
Connector
DIN43650A


0545 00.1-00/5802 220V Solenoid Valve Coil 0545 for PU Series Valve

BRANDO Model
BAPC214548001
Function
2 Way Normally Closed
Tube Material
Stainless Steel
Seal Material
NBR, EPDM, FKM


Ordering Code of 0545 Solenoid Coil:

Code No Voltages Frequency(Hz)
Power (W)
 Power (VA)
113-030-0123 24VDC
4,1
113-030-0144 24VAC 50
8,8
113-030-0144 24VAC 60
7,6
113-030-0128 220VAC 50
9,0
113-030-0128 240VAC 60
9,2
113-030-0142 230VAC 50
8,8
113-030-0142 230VAC 60
7,6
113-030-0121 220VAC 50
14,0
113-030-0124 24VDC - 7,9
113-030-0135 24VAC 50
14,0
113-030-0135 24VAC 60
12,0
113-030-0279 110VAC 50
13,9
113-030-0279 110VAC 60
12,2
113-030-0125 24VDC - 11,9
113-030-0129 24VAC 50
21,0
113-030-0129 24VAC 60
18,0
113-030-0126 110VAC 50
21,5
113-030-0141 230VAC 50
22,0
113-030-0141 230VAC 60
19,0
113-030-0120 12VDC - 17,5
113-030-0127 24VAC 50
25,0
113-030-0132 24VDC - 18,5
113-030-0120 36VAC 50
25,0
113-030-0137 110VAC 50
27,5
113-030-0140 110VAC 60
26,5
113-030-0137 120VAC 60
28,0
113-030-0133 220VAC 50
25,5
113-030-0122 220VAC 50
22,0
113-030-0138 230VAC 50
25,5
113-030-0133 240VAC 60
25,0
113-030-0138 240VAC 60
27,0
