SHAKO Type Brass valve PU225A-06 2/2 Normally Closed Solenoid Valve PU225A Series
SHAKO Type Brass valve PU225A-06 2/2 Normally Closed Solenoid Valve PU225A Series
Specifications
Brand Name :
BRANDO
Model Number :
PU225A-06
Certification :
None
Place of Origin :
CHINA
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Inner Box,Carton,Pallet
Port Size :
3/4''
Orifice Size :
25mm
Working Pressure Range :
0.05 To 1 MPa
Function :
2 Way Normally Closed
Body Material :
Brass
Diaphragm Material :
NBR, FKM, EPDM
Voltage :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Operation :
Diaphragm Pilot Operated
Description

SHAKO Type Brass valve PU225A-06 2/2 Normally Closed Solenoid Valve PU225A Series


This is PU225A-06 solenoid valve, 3/4'' port, 25mm orifice, 0.5 to 10 bar, diaphragm pilot operated, 2 way normally closed, brass body, NBR standard diaphragm, can be customized as EPDM or FKM diaphragm to suit different working mediums, various voltages for your choice, such as 12VDC, 24VDC, 24VAC, 110VAC and 220VAC, etc. It is used for a wide arrange of industrial applications to control fluids.


Product Features:

1. Working Medium: Water, Air, Gas, Liquid, Light Oil, etc
2. Working Pressure: 0.5 to 10 bar
3. Medium Temperature: NBR (-5 to +80ºC), EPDM (-5 to +120ºC), FKM (-10 to +150ºC)
4. Port Size: 3/8'', 1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2''
5. Orifice Size: 13mm, 25mm, 38mm, 50mm
6. Body Material: Brass
7. Diaphragm Material: NBR, EPDM, FKM
8. Operation: Diaphragm Pilot Operated
9. Function: 2 Way Normally Closed
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)


Technical Data:

Model No
PU225A-03
PU225A-04
PU225A-06
PU225A-08
PU225A-12
PU225A-14
PU225A-20
Orifice Size
13mm
25mm
38mm
50mm
Port Size
3/8''
1/2''
3/4''
1''
1-1/4''
1-1/2''
2''
Medium
Water, Air, Light oil, Gas, Liquid, etc
Operation
Diaphragm Pilot Operated
Function
2 Way Normally Closed
Body Material
Brass
Diaphragm Material
NBR (Standard), EPDM, FKM (Optional)
Working Pressure
0.5 to 10 bar
Working Temperature
NBR: -5 to +80ºC
EPDM: -5 to +120ºC
FKM: -10 to +150ºC
Voltage
12VDC, 24VDC, 24VAC, 110VAC, 220VAC

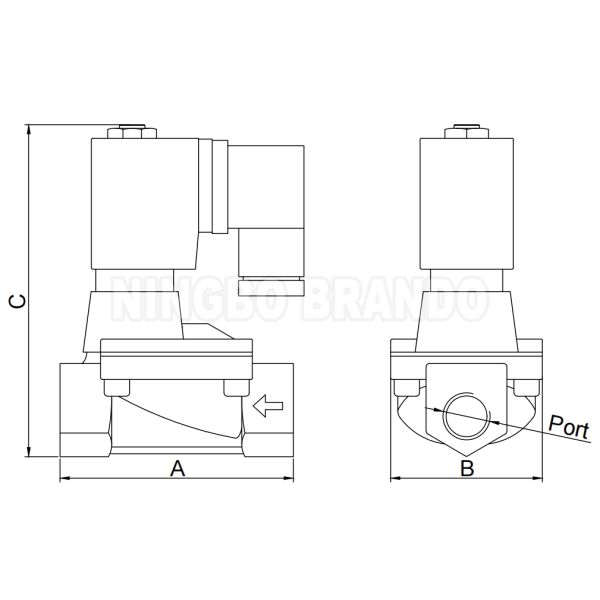

Main Dimension:

SHAKO Type Brass valve PU225A-06 2/2 Normally Closed Solenoid Valve PU225A Series

Model Number
Port
A
B
C
PU225A-03
3/8''
67.5
106
48
PU225A-04
1/2''
67.5
106
48
PU225A-06
3/4''
75
112
58
PU225A-08
1''
96
124.5
70
PU225A-12
1-1/4''
130
139
97
PU225A-14
1-1/2''
130
139
97
PU225A-20
2''
161
160.5
112
