1/4 Inch 2W025-08 Brass Electric Solenoid Valve 24V 100V 220V
1/4 Inch 2W025-08 Brass Electric Solenoid Valve 24V 100V 220V
Specifications
Brand Name :
BRANDO
Model Number :
2W025-08S
Certification :
None
Place of Origin :
CHINA
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Inner Box,Carton,Pallet
Port Size :
1/4''
Orifice Size :
2.5mm
Action :
Direct Acting
Media :
Water Air Gas
Body Material :
Brass
Diaphragm Material :
NBR, FKM, EPDM
Voltage :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Coil Type :
IP65
Description

1/4 Inch 2W025-08 Brass Electric Solenoid Valve 24V 100V 220V


2W025-08 Normal Closed (N/C) Electric Solenoid Valve Is Constructed With Brass Body;standard seal material defaults to Nitrile rubber,suitable for a variety of working media.
Used to control the direction, flow, speed of medium in industry.
This 220V AC brass electric solenoid valve easily replaces broken valves for use with water, air, and gas (viscosity≤20cst).
This unit fits a 1/4" NPT thread.


1.This 220V AC brass solenoid valve Wide range of uses In industry

2..Rated voltage: AC110V / AC220V / DC24V (50 / 60Hz).Voltage Tolerance: 10%

3.The Operation Fluid Viscosity of Solenoid Valve is 20 CST below.

4.Valve body is made of brass and sealing material is NBR, with good medium compatibility, high reliability, long service life and low cost.



Specifications of 2W, UD & UW Series 2/2 Way Brass Solenoid Valves:

Ref No Model No Pipe Size CV Orifice

Fluid Temp.

(°C)

Operating Pressure

kgf/ cm2 (bar)
Water Air Light oil
UD-6 2W025-06 1/8'' 0.23 2.5mm -5°C- +80°C 0~7 0~7 0~7
UD-8 2W025-08 1/4'' 0.23 2.5mm -5°C- +80°C 0~7 0~7 0~7
UD-10 2W040-10 3/8'' 0.58 4mm -5°C- +80°C 0~10 0~10 0~10
UW-10 2W160-10 3/8" 4.5 15mm -5°C- +80°C 0~5 0~7 0~5
UW-15 2W160-15 1/2'' 4.5 15mm -5°C - +80°C 0~5 0~7 0~5
UW-20 2W200-20 3/4" 8.6 20mm -5°C- +80°C 0~5 0~7 0~5
UW-25 2W250-25 1" 12 25mm -5°C- +80°C 0~5 0~7 0~5
UW-35 2W350-35 1-1/4" 24 35mm -5°C- +80°C 0~5 0~7 0~5
UW-40 2W400-40 1-1/2" 28 40mm -5°C - +80°C 0~5 0~7 0~5
UW-50 2W500-50 2" 48 50mm -5°C - +80°C 0~5 0~7 0~5

Main dimension of 2W & 2S Series Solenoid Valves:
1/4 Inch 2W025-08 Brass Electric Solenoid Valve 24V 100V 220V



2S Series
2W Series
A
B
C
D
E
2S025-06
2W025-06
64.5
30
75
43
1/8''
2S025-08
2W025-08
64.5
30
75
43
1/4''
2S040-10
2W040-10
70.6
32
82.4
53
3/8''
2S160-10
2W160-10
101.5
57
117
69
3/8''
2S160-15
2W160-15
101.5
57
117
69
1/2''
2S200-20
2W200-20
107
57
123.5
73
3/4''
2S250-25
2W250-25
111.5
73.5
134.5
99
1''
2S350-35
2W350-35
142
95
172
123
1-1/4''
2S400-40
2W400-40
142
95
172
123
1-1/2''
2S500-50
2W500-50
172
123
209
168
2''

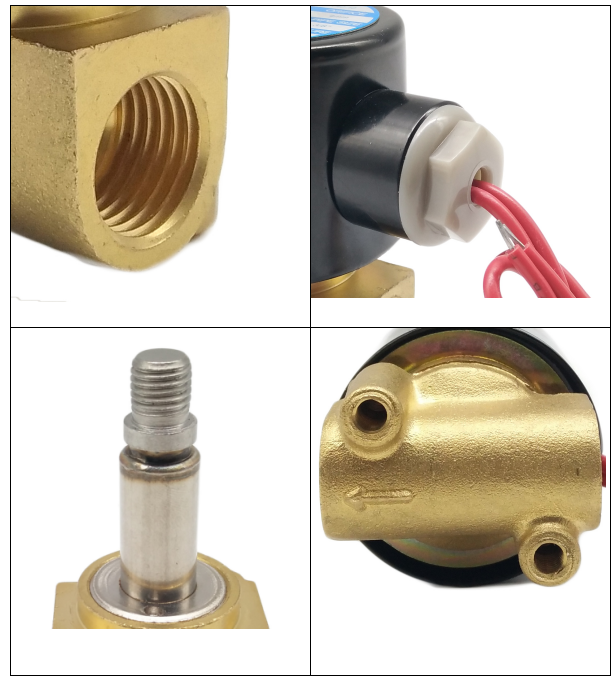

Details of Solenoid Water Valve:

1/4 Inch 2W025-08 Brass Electric Solenoid Valve 24V 100V 220V
