2/2 Way Normally Open Espresso Coffee Maker Brass Solenoid Valve For Coffee Machines
2/2 Way Normally Open Espresso Coffee Maker Brass Solenoid Valve For Coffee Machines
Specifications
Brand Name :
BRANDO
Model Number :
55AE-02
Certification :
None
Place of Origin :
CHINA
MOQ :
1pc
Price :
Negotiation
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Inner Box,Carton,Pallet
Port Size :
Valve Body: φ4mm, Valve Top: φ7mm
Orifice Size :
1.5mm
Seal Material :
FKM
Working Pressure Range :
0 To 20 Bar
Body Material :
Brass
Function :
2 Way Normally Open
Voltage :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Medium :
Water, Air, Oil, Hot Water, Steam, Etc
Description

2/2 Way Normally Open Espresso Coffee Maker Brass Solenoid Valve For Coffee Machines


Product Feature:

1. Working Medium: Water, Air, Oil, Hot Water, Steam, etc
2. Working Temperature: -30 to +150℃
3. Working Pressure: 0 to 20 Bar
4. Port Size: Valve Body: φ4mm, Valve Top: φ7mm
5. Orifice Size: 1.5mm
6. Function: 2 Way Normally Open
7. Operation: Direct Acting
8. Voltage: DC: 12VDC, 24VDC; AC: 24VAC, 110VAC, 120VAC, 220VAC, 230VAC (50/60Hz)

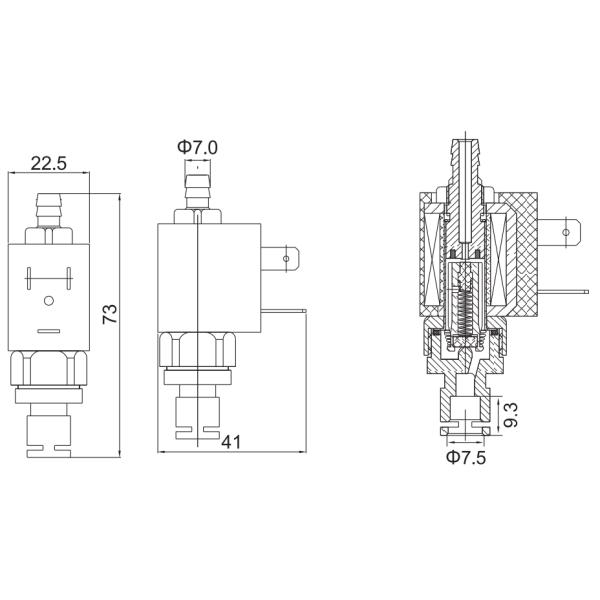

Dimension and Data of Solenoid Valve:

2/2 Way Normally Open Espresso Coffee Maker Brass Solenoid Valve For Coffee Machines

Working Medium
Water, Air, Oil, Hot Water, Steam, etc
Working Temperature
FKM: -30 to +150℃
Working Pressure
0 to 20 Bar
Port Size
Valve Body: φ4mm, Valve Top: φ7mm
Orifice Size
1.5mm
Function
2 Way Normally Open
Operation
Direct Acting
Voltage
DC: 12VDC, 24VDC
AC: 24VAC, 110VAC, 120VAC, 220VAC, 230VAC (50/60Hz)
Tolerance
±10%
Material
Body: Brass or Stainless Steel
Seal: FKM
Armature Tube: Stainless Steel 304
Plunger: Stainless Steel 430F
Stop: Stainless Steel 430F
Spring: Stainless Steel 304
Shading ring: Stainless Steel 304
