Solenoid valve CEME Type 5510 NC 1/8'' 10bar 12V 24V 110V 220V
Solenoid valve CEME Type 5510 NC 1/8'' 10bar 12V 24V 110V 220V
Solenoid valve CEME Type 5510 NC 1/8'' 10bar 12V 24V 110V 220V
Solenoid valve CEME Type 5510 NC 1/8'' 10bar 12V 24V 110V 220V
Solenoid valve CEME Type 5510 NC 1/8'' 10bar 12V 24V 110V 220V
Solenoid valve CEME Type 5510 NC 1/8'' 10bar 12V 24V 110V 220V
Solenoid valve CEME Type 5510 NC 1/8'' 10bar 12V 24V 110V 220V
Solenoid valve CEME Type 5510 NC 1/8'' 10bar 12V 24V 110V 220V
Specifications
Brand Name :
BRANDO
Model Number :
5510
Certification :
None
Place of Origin :
CHINA
MOQ :
5pcs
Price :
Negotiation
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Inner Box,Carton,Pallet
Port Size :
1/8'', 1/4'' (G, NPT)
Orifice Size :
1mm To 3mm
Seal Material :
NBR, EPDM, FKM
Working Pressure Range :
0 To 10 Bar
Body Material :
Brass
Action :
Direct Acting
Function :
2 Way Normally Closed
Working Temperature Range :
NBR: -5 To +120 ºC, EPDM: -30 ℃ To +120℃, FKM: -30 ℃ To +150℃
Voltage :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Description

Solenoid valve CEME Type 5510 NC 1/8'' 10bar 12V 24V 110V 220V


Product Features:

1. Port Size: 1/8'', 1/4'' (G, NPT)
2. Orifice Size: 1mm to 3mm
3. Body Material: Brass
4. Seal Material: NBR, EPDM, FKM
5. Working Medium: Water, Air, Gas, Oil, Steam, etc
6. Working Medium Temperature Range: NBR: -5 to +120 ºC, EPDM: -30 ℃ to +120℃, FKM: -30 ℃ to +150℃
7. Working Pressure Range: 0 to 10 bar
8. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC

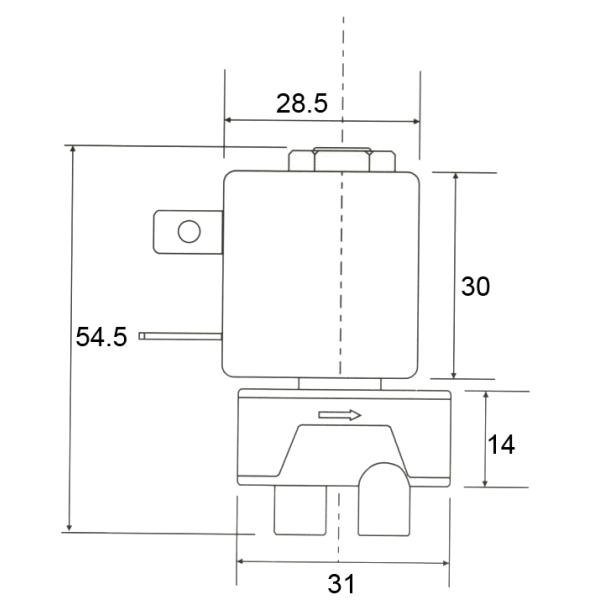

Dimension and Data of Solenoid Valve:

Solenoid valve CEME Type 5510 NC 1/8'' 10bar 12V 24V 110V 220V

Port Size
1/8'', 1/4''
Orifice Size
1mm to 3mm
Body Material
Brass
Seal Material
NBR, EPDM, FKM
Working Medium
Water, Air, Gas, Oil, Steam, etc
Working Medium Temperature Range
NBR: -10 ℃ to +80 ℃
EPDM: -30 ℃ to +120 ℃
FKM: -30 ℃ to +150 ℃
Working Pressure Range
0 to 10 bar
Operation
Direct Acting
Function
2 Way Normally Closed
Voltage
DC: 12V, 24V
AC: 24V, 110V, 120V, 220V, 230V (50/60Hz)


BRANDO Solenoid Valve Production Video:


More Coffee Machine Solenoid Valves for you to choose:


Brass Solenoid Valve
Solenoid valve CEME Type 5510 NC 1/8'' 10bar 12V 24V 110V 220V Solenoid valve CEME Type 5510 NC 1/8'' 10bar 12V 24V 110V 220V Solenoid valve CEME Type 5510 NC 1/8'' 10bar 12V 24V 110V 220V Solenoid valve CEME Type 5510 NC 1/8'' 10bar 12V 24V 110V 220V
Solenoid valve CEME Type 5510 NC 1/8'' 10bar 12V 24V 110V 220V Solenoid valve CEME Type 5510 NC 1/8'' 10bar 12V 24V 110V 220V Solenoid valve CEME Type 5510 NC 1/8'' 10bar 12V 24V 110V 220V Solenoid valve CEME Type 5510 NC 1/8'' 10bar 12V 24V 110V 220V


Plastic Solenoid Valve
Solenoid valve CEME Type 5510 NC 1/8'' 10bar 12V 24V 110V 220V Solenoid valve CEME Type 5510 NC 1/8'' 10bar 12V 24V 110V 220V Solenoid valve CEME Type 5510 NC 1/8'' 10bar 12V 24V 110V 220V Solenoid valve CEME Type 5510 NC 1/8'' 10bar 12V 24V 110V 220V
Solenoid valve CEME Type 5510 NC 1/8'' 10bar 12V 24V 110V 220V Solenoid valve CEME Type 5510 NC 1/8'' 10bar 12V 24V 110V 220V Solenoid valve CEME Type 5510 NC 1/8'' 10bar 12V 24V 110V 220V Solenoid valve CEME Type 5510 NC 1/8'' 10bar 12V 24V 110V 220V


Manifold Solenoid Valve
Solenoid valve CEME Type 5510 NC 1/8'' 10bar 12V 24V 110V 220V Solenoid valve CEME Type 5510 NC 1/8'' 10bar 12V 24V 110V 220V Solenoid valve CEME Type 5510 NC 1/8'' 10bar 12V 24V 110V 220V
