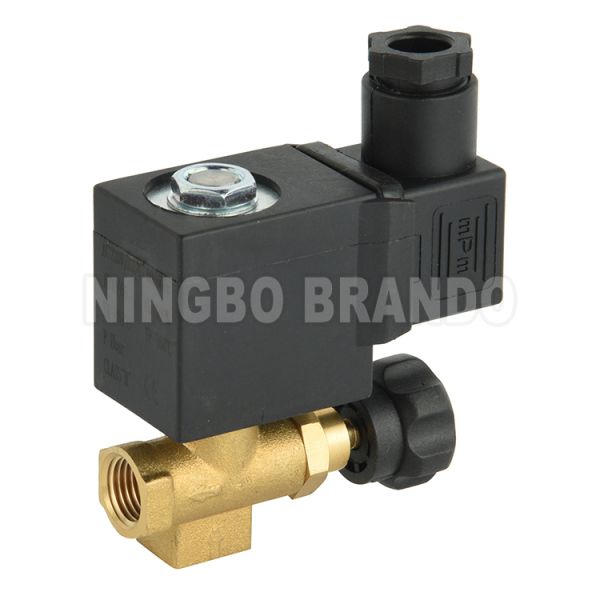

CEME Type 9934 Solenoid Valve AC220V 1/4 Inch Steam Regulating Valve
CEME Type 9934 Solenoid Valve AC220V 1/4 Inch Steam Regulating Valve
CEME Type 9934 Solenoid Valve AC220V 1/4 Inch Steam Regulating Valve
CEME Type 9934 Solenoid Valve AC220V 1/4 Inch Steam Regulating Valve
CEME Type 9934 Solenoid Valve AC220V 1/4 Inch Steam Regulating Valve
CEME Type 9934 Solenoid Valve AC220V 1/4 Inch Steam Regulating Valve
CEME Type 9934 Solenoid Valve AC220V 1/4 Inch Steam Regulating Valve
CEME Type 9934 Solenoid Valve AC220V 1/4 Inch Steam Regulating Valve
Specifications
Brand Name :
BRANDO
Model Number :
9934
Certification :
None
Place of Origin :
CHINA
MOQ :
5pcs
Price :
Negotiation
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Inner Box,Carton,Pallet
Product Name :
Solenoid Valve
Port Size :
1/4''
Orifice Size :
2mm, 3mm
Seal Material :
FKM
Working Pressure Range :
0 To 10 Bar
Body Material :
Brass
Working Temperature Range :
-30 To +150 ℃
Voltage :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Application :
Steam Iron, Steam Boiler, Etc
Function :
2 Way Normally Closed
Working Medium :
Hot Water, Steam, Etc
Description

CEME Type 9934 Solenoid Valve AC220V 1/4 Inch Steam Regulating Valve


This is 9934 solenoid valve with flow rate regulation, 1/4'' female threaded port, 2mm or 3mm orifice size, 0 to 10 bar working pressure, 2 way normally closed, brass body, FKM seal, various voltages for your choice, 12VDC, 24VDC, 24VAC, 110VAC or 220VAC, etc. It is popularly used in steam iron or steam boiler to control steam flow rate.


Technical Data:

Model No
9934
Port Size
1/4''
Orifice Size
2mm, 3mm
Body Material
Brass
Seal Material
FKM
Working Medium
Steam, Hot Water, etc
Medium Temperature
-20 to +160℃
Working Pressure
0 to 10 bar
Operation
Direct Acting
Function
2 Way Normally Closed

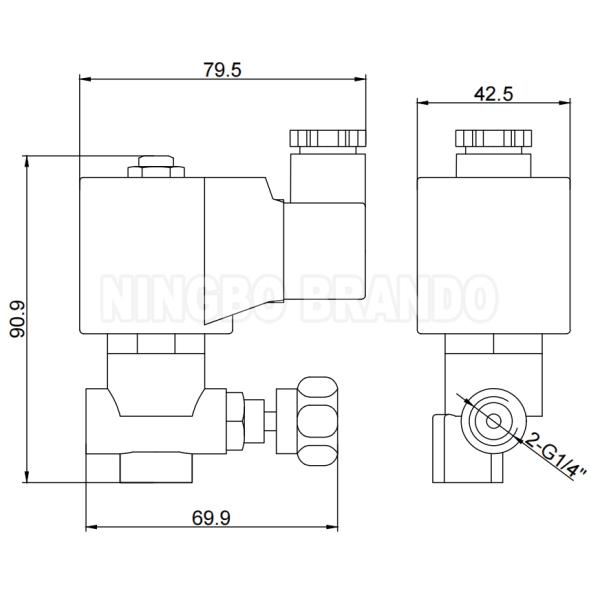

Main Dimension:

CEME Type 9934 Solenoid Valve AC220V 1/4 Inch Steam Regulating Valve


Our Production:

CEME Type 9934 Solenoid Valve AC220V 1/4 Inch Steam Regulating Valve


FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of applications.

Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.
