AirTac Type 4V330C-10 Double Solenoid Air Valve 5/3 Way 3/8''
AirTac Type 4V330C-10 Double Solenoid Air Valve 5/3 Way 3/8''
AirTac Type 4V330C-10 Double Solenoid Air Valve 5/3 Way 3/8''
AirTac Type 4V330C-10 Double Solenoid Air Valve 5/3 Way 3/8''
AirTac Type 4V330C-10 Double Solenoid Air Valve 5/3 Way 3/8''
AirTac Type 4V330C-10 Double Solenoid Air Valve 5/3 Way 3/8''
Specifications
Brand Name :
BRANDO
Model Number :
4V330C-10
Certification :
None
Place of Origin :
CHINA
MOQ :
300pcs
Price :
Negotiation
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Inner Box,Carton,Pallet
Port Size :
In=Out=3/8'', Exhaust=1/4''
Pressure Range :
0.15 To 0.8 MPa
Body Material :
Aluminum Alloy
Valve Type :
5 Port 3 Position
Max Pressure Resistance :
1.2MPa
Fluid :
Air
Voltages :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Description

AirTac Type 4V330C-10 Double Solenoid Air Valve 5/3 Way 3/8''


Pneumatic solenoid valves control airflow by applying electricity to the solenoid. These components are designed to stop, start or change the direction of airflow.


We carry numerous port and position configurations. Most air control valves are available with AC220V, DC24V, AC110V, AC24V or DC12V solenoid coils. Choose from the 5/2 way NAMUR type, 3/2 way, or the 5/2 way and 5/3 way.


When choosing thread type, please reference the following standards:
NPT - American standard taper pipe threads for general use
M - Metric screw threads M profile
Rp or G (BSPP) - British standard pipe (parallel) threads
PT - JIS taper pipe threads


Data of 4V300 Series Pneumatic Solenoid Valves:

Model
4V310-08
4V320-08
4V330C-08
4V330E-08
4V330P-08
4V310-10
4V320-10
4V330C-10
4V330E-10
4V330P-10
Fluid
Air(to be filtered by 40 μ m filter element)
Acting
Internal pilot or external pilot
Port Size
In=Out=Exhaust=1/4''
In=Out=3/8'' Exhaust=1/4''
Orifice Size
25.00 mm2 (Cv=1.40)
18.00 mm2 (Cv=1.00)
30.00 mm2 (Cv=1.68)
18.00 mm2 (Cv=1.00)
Valve Type
5 port 2 position
5 port 3 position
5 port 2 position
5 port 3 position
Operating Pressure
0.15~0.8MPa(21~114psi)
Proof Pressure
1.5MPa(215psi)
Temperature ℃
-20~70
Material of Body
Aluminum alloy
Max. frequency
4 cycle/sec
4 cycle/sec
4 cycle/sec
4 cycle/sec

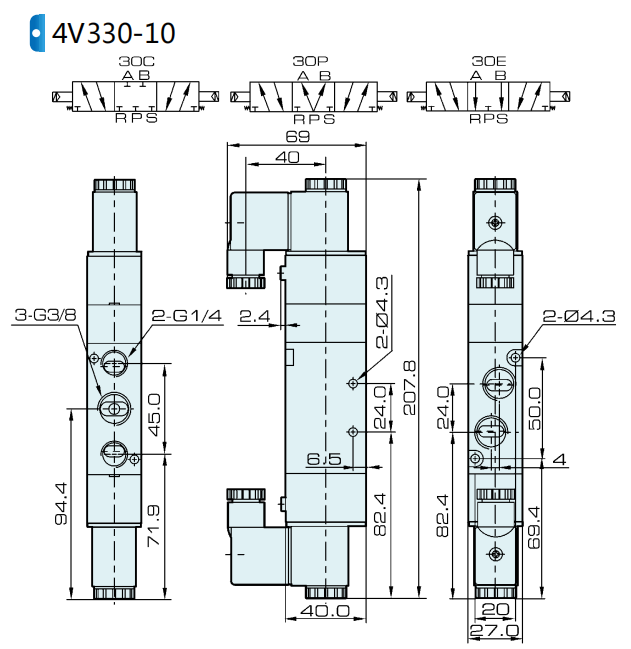

Main Dimension of 4V330C-10 Solenoid Valve:

AirTac Type 4V330C-10 Double Solenoid Air Valve 5/3 Way 3/8''


Video of 4V330C-10 Solenoid Valve:

Production Video of Pneumatic Solenoid Valves:


More Pneumatic Products for you to choose:

AirTac Type 4V330C-10 Double Solenoid Air Valve 5/3 Way 3/8''AirTac Type 4V330C-10 Double Solenoid Air Valve 5/3 Way 3/8''AirTac Type 4V330C-10 Double Solenoid Air Valve 5/3 Way 3/8''AirTac Type 4V330C-10 Double Solenoid Air Valve 5/3 Way 3/8''

Solenoid Operator Manifold Silencer Pneumatic Hose Fittings
