Danfoss Type 034L0025 Evaporation Pressure Regulator 7/8 in Kvp 22
Danfoss Type 034L0025 Evaporation Pressure Regulator 7/8 in Kvp 22
Danfoss Type 034L0025 Evaporation Pressure Regulator 7/8 in Kvp 22
Danfoss Type 034L0025 Evaporation Pressure Regulator 7/8 in Kvp 22
Specifications
Brand Name :
BRANDO
Model Number :
KVP 22
Certification :
None
Place of Origin :
CHINA
MOQ :
5pcs
Price :
Negotiation
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Inner Box,Carton,Pallet
Product Name :
Condensing Pressure Regulator
Port Size :
7/8''
Connection :
Solder (ODF)
Regulation Range :
0 to 5.5 bar, Factory Setting = 2 bar
Max Working Pressure :
18 bar
Medium Temperature Range :
-45 to +130℃
Refrigerant :
CFC, HCFC, HFC
Code No :
034L0094
Description

Danfoss Type 034L0025 Evaporation Pressure Regulator 7/8 in Kvp 22


An Evaporator Pressure Regulator (EPR) is a mechanical or electronic valve installed in the suction line of a refrigeration or air-conditioning system. Its primary function is to prevent the pressure (and thus the temperature) inside the evaporator from dropping below a specific, preset minimum.


Technical Data:

Refrigerants
CFC, HCFC, HFC
Adjustment range
0 to 5.5 bar, Factory Setting = 2 bar
Maximum working pressure
18 bar
Maximum test pressure
Pe = PSx1.1 = 19.8 bar
Medium temperature range
-45 – 130 °C
MAX P-band
KVP 12 – 22 = 1.7 bar
KVP 28 – 35 = 2.8 bar
KV Value With Offset 0.6bar
KVP 12 – 22 = 1.7 m³/h
KVP 28 – 35 = 2.8 m³/h
Kv Value With MAX P-band
KVP 12 – 22 = 2.5 m³/h
KVP 28 – 35 = 8 m³/h


Ordering Code:


Model
Rated capacity
(kW)
Flare
 Code No
Solder
Connection
 Code No
R22 R134a R404A/R507 R407C inch inch
KVP 12 7.1 5.3 6.3 6.5 1/2'' 034L0021 1/2''
034L0023
034L0028
KVP 15 7.1 5.3 6.3 6.5 5/8'' 034L0022 5/8''
034L0029
KVP 22 7.1 5.3 6.3 6.5 /
7/8''
034L0025
KVP 28 17.8 13.2 15.9 15.4 /
1 1/8''
034L0026
034L0031
KVP 35 17.8 13.2 15.9 15.4 /
1 3/8''
034L0032

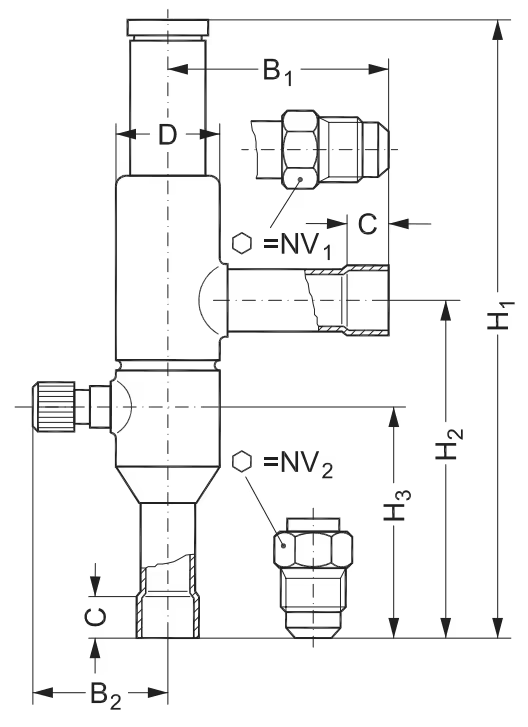

Dimension:

Danfoss Type 034L0025 Evaporation Pressure Regulator 7/8 in Kvp 22

Model NV1 NV2 H1 H2 H3 B1 B2 C
Solder		 φ D
KVP 12 19 19 179 99 66 64 41 10 30
KVP 15 24 24 179 99 66 64 41 12 30
KVP 22 24 24 179 99 66 64 41 17 30
KVP 28 24 24 259 151 103 105 48 20 43
KVP 35 / / 259 151 103 105 48 25 43
