3/4'' Inch Brass High Pressure Electric Steam Solenoid Valve Normally Closed
3/4'' Inch Brass High Pressure Electric Steam Solenoid Valve Normally Closed
Specifications
Brand Name :
BRANDO
Model Number :
PSB20B06
Certification :
None
Place of Origin :
CHINA
MOQ :
5pcs
Price :
Negotiation
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Inner Box,Carton,Pallet
Port Size :
3/4''
Orifice Size :
20mm
Seal Material :
PTFE
Media Temperature :
-10 to +180 ℃
Working Pressure Range :
0.5 to 25 bar
Body Material :
Brass
Function :
2 Way Normally Closed
Voltage :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Media :
Air, Water, Oil, Steam
Description

3/4'' Inch Brass High Pressure Electric Steam Solenoid Valve Normally Closed


Product Features of Steam Solenoid Valve:

1. Working Medium: Steam, High Temperature Liquid, etc.
2. Working Meidum Temperature Range: 0 to +180℃
3. Working Pressure Range: 0.1 to 25 bar
4. Function, 2 Way Normally Closed, 2 Way Normally Open
5. Operation: Piston Pilot Operated
6. Body Material: Brass, Stainless Steel
7. Seal Material: PTFE
8. Port Size: 1/4'', 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
9. Thread Type: G, NPT
10. Supply Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

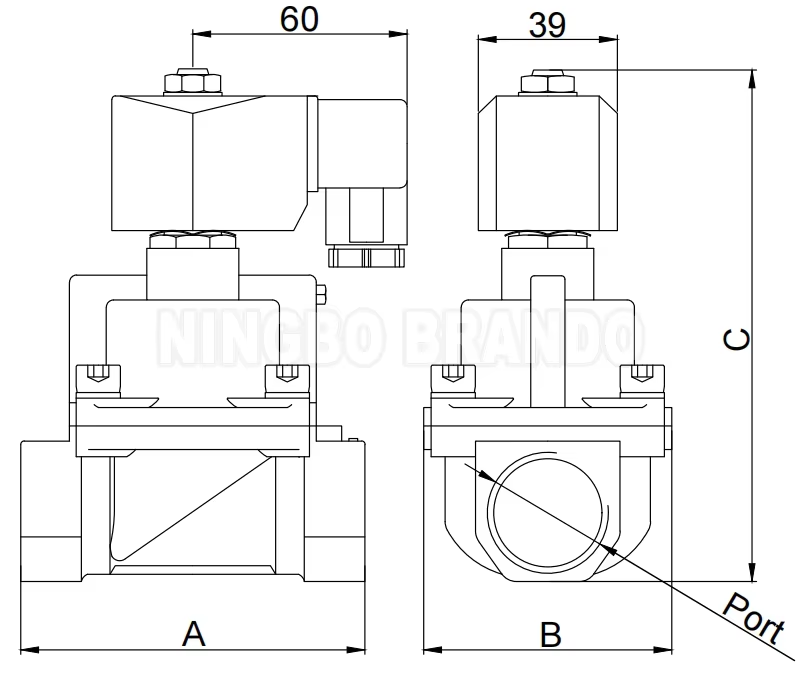

Main Dimension of Steam Solenoid Valve:

3/4'' Inch Brass High Pressure Electric Steam Solenoid Valve Normally Closed

Model No
Port Size
A
B
C
PSB15B03
3/8''
68
49
122
PSB15B04
1/2''
68
49
122
PSB20B06
3/4''
76
57
133
PSB25B25
1
96
70
144
PSB35B35
1 1/4''
120
90
168
PSB35B40
1 1/2''
120
90
168
PSB50B50
2''
150
112
190



Technical Data of Steam Solenoid Valve:

3/4'' Inch Brass High Pressure Electric Steam Solenoid Valve Normally Closed

Model No
Port Size
Orifice Size
CV
Working pressure
Body
Seal
Function
Voltage
PSB15B03
3/8''
15mm
4.6
0.5 to 25 bar
Brass
PTFE
2 Way Normally Closed
12VDC
24VDC
24VAC
110VAC
220VAC
PSB15B04
1/2''
15mm
4.6
PSB20B06
3/4''
20mm
8.5
PSB25B25
1''
25mm
12
PSB35B35
1 1/4''
35mm
26
PSB35B40
1 1/2''
35mm
26
PSB50B50
2''
50mm
48


Brando Factory Production of Solenoid Valves:


More Steam Solenoid Valves for you to choose:


Brass Solenoid Valves
3/4'' Inch Brass High Pressure Electric Steam Solenoid Valve Normally Closed 3/4'' Inch Brass High Pressure Electric Steam Solenoid Valve Normally Closed 3/4'' Inch Brass High Pressure Electric Steam Solenoid Valve Normally Closed 3/4'' Inch Brass High Pressure Electric Steam Solenoid Valve Normally Closed
3/4'' Inch Brass High Pressure Electric Steam Solenoid Valve Normally Closed 3/4'' Inch Brass High Pressure Electric Steam Solenoid Valve Normally Closed 3/4'' Inch Brass High Pressure Electric Steam Solenoid Valve Normally Closed 3/4'' Inch Brass High Pressure Electric Steam Solenoid Valve Normally Closed



Stainless Steel Solenoid Valves
3/4'' Inch Brass High Pressure Electric Steam Solenoid Valve Normally Closed 3/4'' Inch Brass High Pressure Electric Steam Solenoid Valve Normally Closed 3/4'' Inch Brass High Pressure Electric Steam Solenoid Valve Normally Closed 3/4'' Inch Brass High Pressure Electric Steam Solenoid Valve Normally Closed
3/4'' Inch Brass High Pressure Electric Steam Solenoid Valve Normally Closed 3/4'' Inch Brass High Pressure Electric Steam Solenoid Valve Normally Closed 3/4'' Inch Brass High Pressure Electric Steam Solenoid Valve Normally Closed 3/4'' Inch Brass High Pressure Electric Steam Solenoid Valve Normally Closed


Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing
