3/4'' Anti-corrosion PTFE Solenoid Valve DC24V AC110V AC220V
3/4'' Anti-corrosion PTFE Solenoid Valve DC24V AC110V AC220V
Specifications
Brand Name :
BRANDO
Model Number :
6.16DAP20B06
Certification :
None
Place of Origin :
Ningbo, China
MOQ :
200
Price :
Negotiation
Payment Terms :
T/T,PayPal,Western Union
Supply Ability :
100000pcs per month
Delivery Time :
Negotiation
Packaging Details :
inner boxes,cartons,pallets
Function :
2 Way, Normally Closed
Port Size :
3/4''
Orifice Size :
20mm
Valve Body Material :
PTFE
Seal Material :
EPDM, FKM, PTFE
Working Pressure Range :
0.01 To 0.6 MPa
Voltages :
12VDC, 24VDC, 110VAC, 220VAC
Operation :
Piston Pilot Operated
Working Medium :
Chemical, Acid, Alkali, Corrosive Liquids, Etc
Description

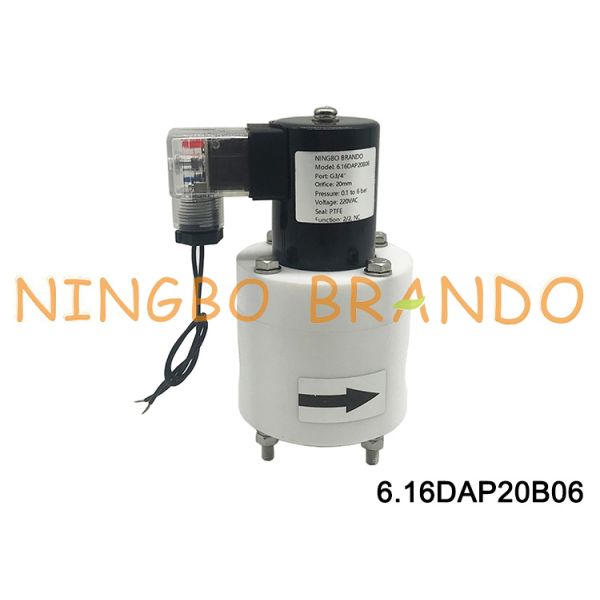

3/4'' Anti-corrosion PTFE Solenoid Valve DC24V AC110V AC220V



This is an anti corrosive PTFE solenoid valve, 3/4'' female threaded port size, 20mm orifice size, 2/2 way normally closed, pilot piston operated, 0.01 to 0.6 MPa working pressure, can be EPDM, FKM or PTFE seal to suit different working mediums, various voltages for your choice, such as 12VDC, 24VDC, 24VAC, 110VAC and 220VAC, etc. It is used for a wide arrange of industrial applications to control fluids.


Technical Data:

Model No
Port Size
Orifice Size
CV
Working Pressure
Body Material
Seal Material
Function
Voltage
6.16DAP15B04
1/2''
15mm
4
0 to 6 bar
PTFE
EPDM
FKM
PTFE
2 Way NC
12VDC
24VDC
24VAC
110VAC
220VAC
6.16DAP20B06
3/4''
20mm
5.5
6.16DAP25B25
1''
25mm
13
6.16DAP32B32
1-1/4''
32mm
17
6.16DAP40B40
1-1/2''
40mm
25
6.16DAP50B50
2''
50mm
40
6.16DAP65B65
2-1/2''
60mm
62

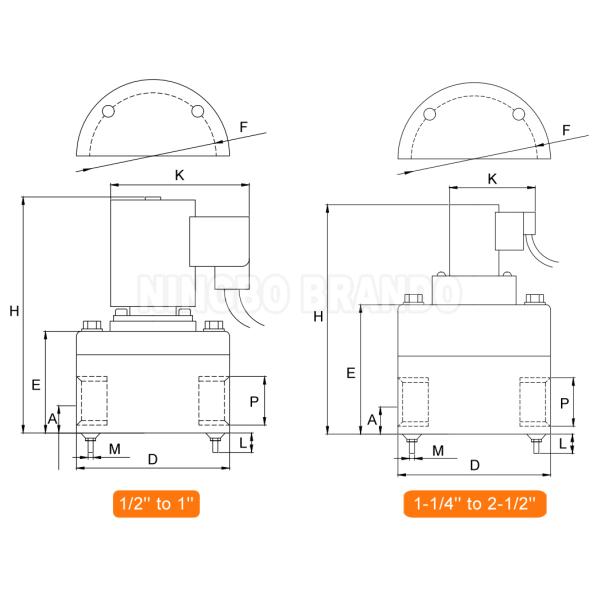

Main Dimension:

3/4'' Anti-corrosion PTFE Solenoid Valve DC24V AC110V AC220V

Model No
Dimension
P
D
H
E
A
M
L
K
F
6.16DAP15B04
1/2''
70
127
56.5
18.5
M5
14
92
58
6.16DAP20B06
3/4''
80
136
70.5
20
M6
10
92
67
6.16DAP25B25
1''
95
145
78
25
M6
12
92
75
6.16DAP32B32
1-1/4''
120
200
110
31
M8
20
94
98
6.16DAP40B40
1-1/2''
130
220
113
33.5
M8
18
94
106
6.16DAP50B50
2''
150
249
140
43
M10
20
94
116
6.16DAP65B65
2-1/2''
180
262
152
49
M10
25
94
116


Our Production:

3/4'' Anti-corrosion PTFE Solenoid Valve DC24V AC110V AC220V


FAQ:


Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of applications.

Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.


More Anti Corrosive Solenoid Valves:

3/4'' Anti-corrosion PTFE Solenoid Valve DC24V AC110V AC220V 3/4'' Anti-corrosion PTFE Solenoid Valve DC24V AC110V AC220V 3/4'' Anti-corrosion PTFE Solenoid Valve DC24V AC110V AC220V 3/4'' Anti-corrosion PTFE Solenoid Valve DC24V AC110V AC220V
PTFE Solenoid Valve PTFE Solenoid Valve UPVC Solenoid Valve CPVC Solenoid Valve


Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
