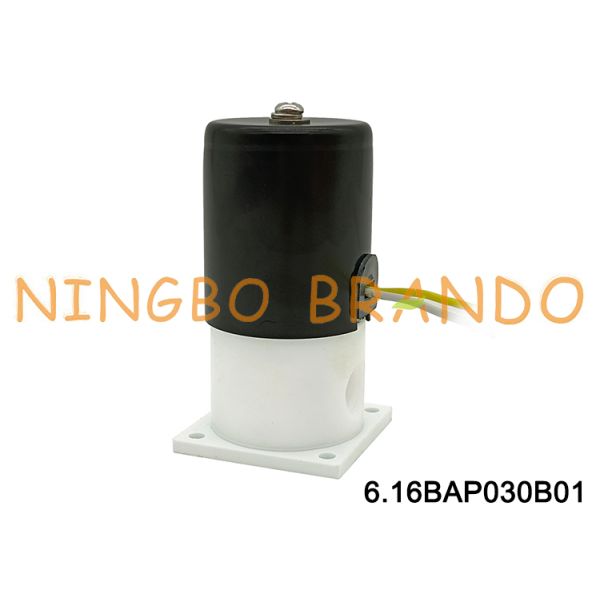

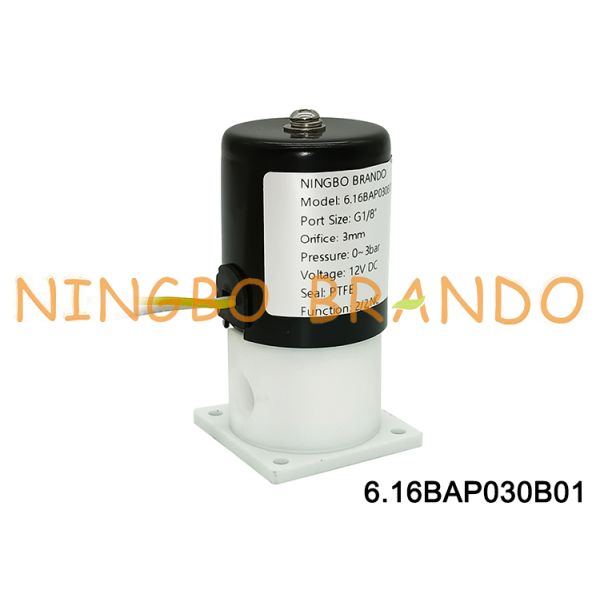

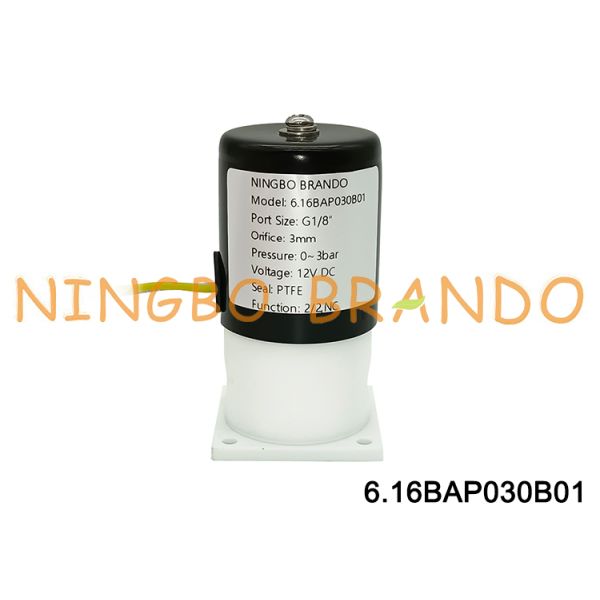

1/8'' PTFE Solenoid Valve For Acid Alkali Corrosion Resistance Isolation
1/8'' PTFE Solenoid Valve For Acid Alkali Corrosion Resistance Isolation
1/8'' PTFE Solenoid Valve For Acid Alkali Corrosion Resistance Isolation
1/8'' PTFE Solenoid Valve For Acid Alkali Corrosion Resistance Isolation
1/8'' PTFE Solenoid Valve For Acid Alkali Corrosion Resistance Isolation
1/8'' PTFE Solenoid Valve For Acid Alkali Corrosion Resistance Isolation
Specifications
Brand Name :
BRANDO
Model Number :
6.16BAP030B01
Certification :
None
Place of Origin :
Ningbo, China
MOQ :
200
Price :
Negotiation
Payment Terms :
T/T,PayPal,Western Union
Supply Ability :
100000pcs per month
Delivery Time :
Negotiation
Packaging Details :
inner boxes,cartons,pallets
Function :
2 Way, Normally Closed
Port Size :
1/8''
Orifice Size :
3mm
Valve Body Material :
PTFE
Seal Material :
PTFE
Working Pressure Range :
0 To 0.3 MPa
Voltages :
12VDC, 24VDC, 110VAC, 220VAC
Description

1/8'' PTFE Solenoid Valve For Acid Alkali Corrosion Resistance Isolation



Product Features:

Our isolation solenoid valves offer instrument designers a completely inert, non-metallic fluid path. The valves use a flexible diaphragm to isolate the solenoid actuation mechanism from the fluid path. Isolation Valves offer low internal volumes, precise flow control and excellent ease of installation making them particularly suitable for use in highly aggressive and / or high purity fluid applications such as analytical chemistry and clinical diagnostics. The highly inert fluid path is especially useful in liquid chromatography, genomics and protein synthesis applications. The high flow factor makes these valves well suited to environmental and water analysis applications.


Technical Data of Isolation Solenoid Valve:

Model No. Port size Orifice (mm) Cv Mini Pressure Max Pressure Seal Material
AC(6VA) DC(10W)
6.16BAP030BM8 M8x1 3.0 0.1 0.0MPa 0.3MPa 0.3MPa PTFE
6.16BAP030B01 1/8'' 3.0 0.1 0.0MPa 0.3MPa 0.3MPa
6.16BAP030B02 1/4'' 3.0 0.1 0.0MPa 0.15MPa 0.15MPa





AC(24VA) DC(13W)
6.16BAP060B02 1/4'' 6.0 0.28 0.0MPa 0.15MPa 0.15MPa
6.16BAP060B03 3/8'' 6.0 0.28 0.0MPa 0.15MPa 0.15MPa
6.16BAP060B04 1/2'' 6.0 0.28 0.0MPa 0.15MPa 0.15MPa
6.16BAP060B06 3/4'' 6.0 0.28 0.0MPa 0.15MPa 0.15MPa

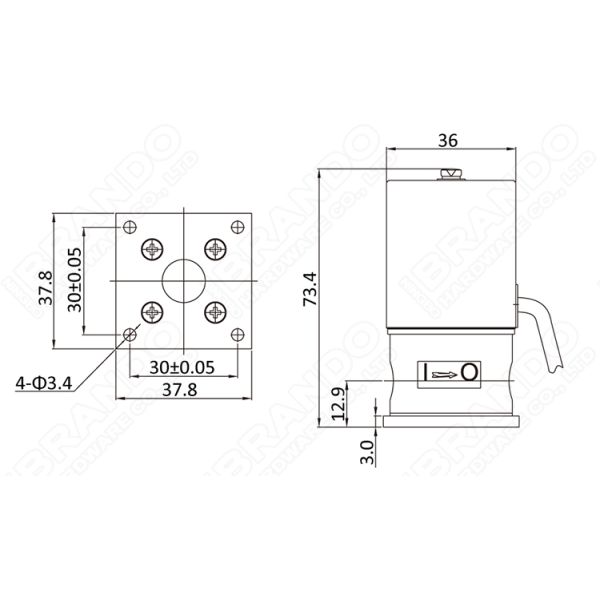

Main Dimension of Isolation Solenoid Valve:

1/8'' PTFE Solenoid Valve For Acid Alkali Corrosion Resistance Isolation




More PTFE () Body Solenoid Valves for you to choose:

1/8'' PTFE Solenoid Valve For Acid Alkali Corrosion Resistance Isolation 1/8'' PTFE Solenoid Valve For Acid Alkali Corrosion Resistance Isolation 1/8'' PTFE Solenoid Valve For Acid Alkali Corrosion Resistance Isolation
1/8'' PTFE Solenoid Valve For Acid Alkali Corrosion Resistance Isolation 1/8'' PTFE Solenoid Valve For Acid Alkali Corrosion Resistance Isolation 1/8'' PTFE Solenoid Valve For Acid Alkali Corrosion Resistance Isolation
