Type 6213 A 3/8 1/2 3/4 10.0 13.0 20.0 25.0 Servo-assisted 2/2-way diaphragm valve
Type 6213 A 3/8 1/2 3/4 10.0 13.0 20.0 25.0 Servo-assisted 2/2-way diaphragm valve
Type 6213 A 3/8 1/2 3/4 10.0 13.0 20.0 25.0 Servo-assisted 2/2-way diaphragm valve
Type 6213 A 3/8 1/2 3/4 10.0 13.0 20.0 25.0 Servo-assisted 2/2-way diaphragm valve
Type 6213 A 3/8 1/2 3/4 10.0 13.0 20.0 25.0 Servo-assisted 2/2-way diaphragm valve
Type 6213 A 3/8 1/2 3/4 10.0 13.0 20.0 25.0 Servo-assisted 2/2-way diaphragm valve
Specifications
Brand Name :
BRANDO
Model Number :
6023
Certification :
None
Place of Origin :
CHINA
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Inner Box,Carton,Pallet
Port Size :
1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
Orifice Size :
10mm, 13mm, 20mm, 25mm
Operation :
Diaphragm Pilot Operated
Pressure Range :
0.03 To 1 MPa
Body Material :
Brass
Voltage :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Seal Material :
NBR, VITON, EPDM
Function :
2 Way, Normally Close
Description

Type 6213 A 3/8 1/2 3/4 10.0 13.0 20.0 25.0 Servo-assisted 2/2-way diaphragm valve


The 6213 solenoid is a 2/2- way servo-assisted (semi-direct) solenoid valve. It is mainly used for liquid or gaseous media with little or no differential pressure. The operating process is supported by a spring coupled diaphragm and a plunger pilot control, which allows the valve to partially open without differential pressure. 6213 solenoid valve features a wide range of body materials, seal material, and voltages to meet the needs of your application. 6213 solenoid valve is similar to other servo-assisted valves like the 0290, 6281, 5282, and 0141 despite the differences in their opening/closing mechanism.


Technical Data of 6213 Solenoid Valve:

Type 6213 A 3/8 1/2 3/4 10.0 13.0 20.0 25.0 Servo-assisted 2/2-way diaphragm valve

Model
Orifice Size
(mm)
Port Size
(Inch)
Working Pressure
(bar)
Medium Temperature
(℃)
Body Material

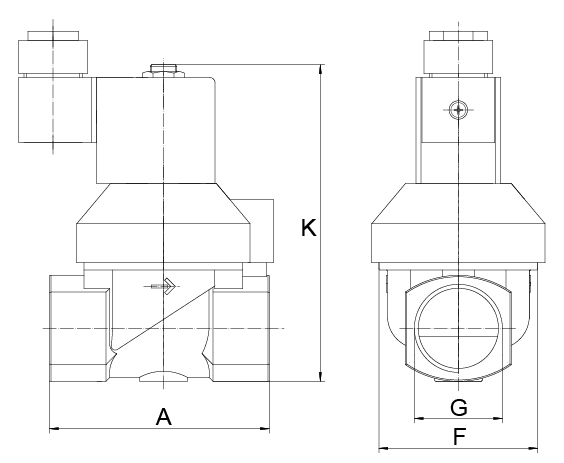

Dimension
A
F
K
6213
10
1/4''
0.3 to 10
NBR: -10 to +80
EPDM: -30 to +120
FKM: -30 to +150
Brass
Stainless Steel
50
32
90/85
10
3/8''
50
32
90/85
13
3/8''
65
41
91
10
1/2''
50/55
32
90
13
1/2''
58/65
41
91
13
3/4''
58/69
41
94
20
3/4''
83
60
115
20
1''
83
60
115
25
1''
83
60
115
