Burkert Type 6013 Brass Direct Acting Solenoid Valve 1/8'' 1/4''
Burkert Type 6013 Brass Direct Acting Solenoid Valve 1/8'' 1/4''
Burkert Type 6013 Brass Direct Acting Solenoid Valve 1/8'' 1/4''
Burkert Type 6013 Brass Direct Acting Solenoid Valve 1/8'' 1/4''
Burkert Type 6013 Brass Direct Acting Solenoid Valve 1/8'' 1/4''
Burkert Type 6013 Brass Direct Acting Solenoid Valve 1/8'' 1/4''
Specifications
Brand Name :
BRANDO
Model Number :
6013
Certification :
None
Place of Origin :
CHINA
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Inner Box,Carton,Pallet
Port Size :
1/8'', 1/4''
Orifice Size :
1.5mm, 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm
Operation :
Plunger Direct Acting
Pressure Range :
0 To 2.5MPa
Body Material :
Brass
Voltage :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Seal Material :
NBR, VITON, EPDM
Function :
2 Way, Normally Close
Description

Burkert Type 6013 Brass Direct Acting Solenoid Valve 1/8'' 1/4''


Features of 6013 Brass Solenoid Valve:

1.Type 6013 is a general-purpose valve used for shut-off, filling, dosing and ventilation.
2.The compact valve is suitable for small flow rates, the nominal diameter lies between 2 and 6 mm.
3.The maximum pressure varies from 0.75 up to 25 bars, depending on the orifice size and coil. Because of the direct acting design, the valve can be used in systems without a pressure differential, such as a closed circulating circuit or gravity fed system. It can even be used for technical vacuum.
4.The bolted-coil design is designed to withstand strong vibrations. Housing materials are brass or stainless steel (grade 303).
5.The valve is available with an inline design with port sizes from G1/8” up to G3/8” or a subbase design suitable for manifold mounting (SFB).

6. The system is simple, just connect to the computer, and the price is low

7.The adjustment accuracy is limited

8.Express action, small power, light appearance

9.Diverse models, wide range of applications, limited media

10.External leakage is blocked, internal leakage is easy to control, safe to use


Technical Data of 6013 Solenoid Valve:

Burkert Type 6013 Brass Direct Acting Solenoid Valve 1/8'' 1/4''

Model
Port Size
(Inch)
Orifice Size
(mm)
Kv
Pressure Range (bar)
Medium Temperature (℃)

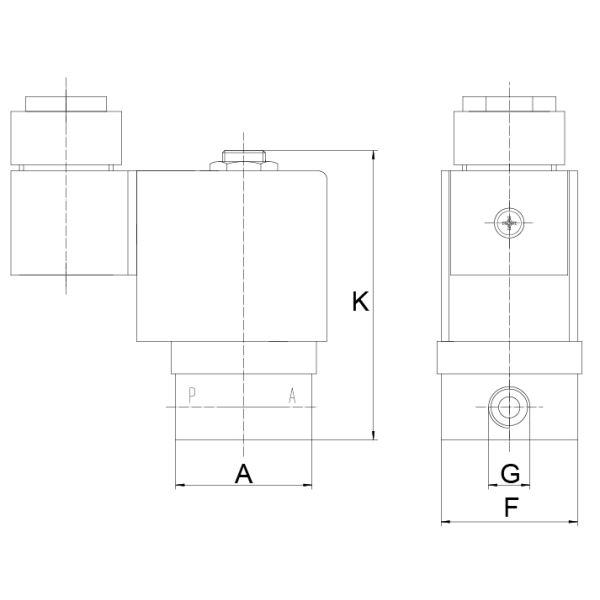

Dimension
A
F
K
6013
1/8''
1.5
0.05
0 to 40
NBR: -10 to +80
EPDM: -30 to +120
FKM: -30 to +150
32
32
66
2
0.12
0 to 25
2.5
0.16
0 to 16
3
0.23
0 to 10
1/4''
1.5
0.05
0 to 40
46
32
70
2
0.12
0 to 25
3
0.23
0 to 10
4
0.3
0 to 4
5
0.35
0 to 2
6
0.55
0 to 1.5
Sub-base
(SFB)
1.5
0.1
0 to 40
32
32
66/68
2
0.15
0 to 25
3
0.23
0 to 10
