Airtac Type 4V120-06 Solenoid Air Valve 5/2 Double Pneumatic Solenoid valve
Airtac Type 4V120-06 Solenoid Air Valve 5/2 Double Pneumatic Solenoid valve
Specifications
Brand Name :
BRANDO
Model Number :
4V120-06
Certification :
None
Place of Origin :
CHINA
MOQ :
300pcs
Price :
Negotiation
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Inner Box,Carton,Pallet
Port Size :
In=Out=1/8''
Pressure Range :
0.15 To 0.8 MPa
Body Material :
Aluminum Alloy
Valve Type :
5 Port 2 Position
Max Pressure Resistance :
1.2MPa
Fluid :
Air (to Be Filtered By 40 μm Filter Element)
Voltages :
220V AC, 110V AC, 24V AC, 24V DC, 12V DC
Description

Airtac Type 4V110-06 Single Solenoid Pneumatic Air Valve 4V100 Series


Pneumatic valve is where air or an inert gas is the pneumatic drive force. These type of pneumatic valves control or manage the source air within an automated system. While frequently referred to as pneumatic valves, they can be actuated (operated) by manually, by pneumatic actuation (Air Pilot Valve), by solenoid actuation (Pneumatic Solenoid Valve), or by motorized actuation. Ultimately, they all serve the same purpose: they modulate or control the source air for an automated system.


Data of 4V100 Series Pneumatic Solenoid Valves:

Model
4V110-06
4V120-06
4V130C-06
4V130E-06
4V130P-06
4V110-08
4V120-08
4V130C-08
4V130E-08
4V130P-08
Fluid
Air(to be filtered by 40 μ m filter element)
Acting
Internal pilot or external pilot
Port Size
In=Out=1/8''
In=Out=1/4''
Orifice Size
5.5 mm2
(Cv=0.31)
5.0 mm2
(Cv=0.28)
12.00 mm2
(Cv=0.67)
9.00 mm2 (Cv=0.50)
Valve Type
5 port 2 position
5 port 3 position
5 port 2 position
5 port 3 position
Operating Pressure
0.15~0.8MPa (21~114psi)
Proof Pressure
1.5MPa (215psi)
Temperature ℃
-20~70
Material of Body
Aluminum alloy
Max. frequency
5 cycle/sec
3 cycle/sec
5 cycle/sec
3 cycle/sec

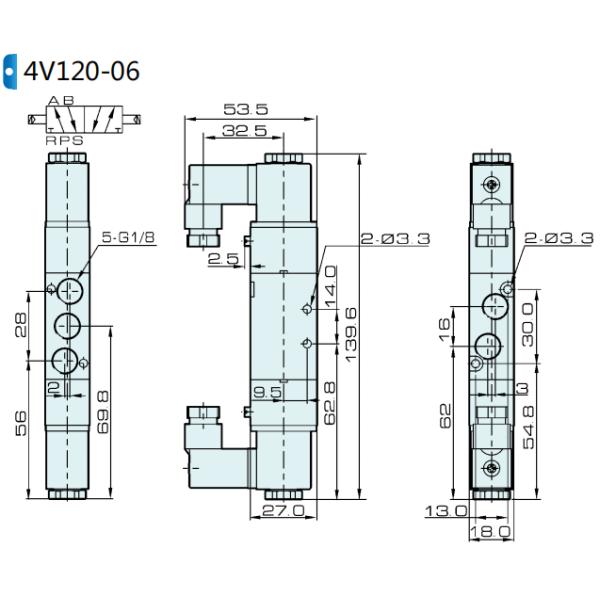

Main Dimension of 4V120-06 Solenoid Valve:

Airtac Type 4V120-06 Solenoid Air Valve 5/2 Double Pneumatic Solenoid valve

Production Video of Pneumatic Solenoid Valves:


More Pneumatic Products for you to choose:

Airtac Type 4V120-06 Solenoid Air Valve 5/2 Double Pneumatic Solenoid valveAirtac Type 4V120-06 Solenoid Air Valve 5/2 Double Pneumatic Solenoid valveAirtac Type 4V120-06 Solenoid Air Valve 5/2 Double Pneumatic Solenoid valveAirtac Type 4V120-06 Solenoid Air Valve 5/2 Double Pneumatic Solenoid valve

Solenoid Operator Manifold Silencer Pneumatic Hose Fittings


Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
