3/8'' 120 160 bar High Pressure Water Air Gas Stainless Steel 304 Solenoid Valve
3/8'' 120 160 bar High Pressure Water Air Gas Stainless Steel 304 Solenoid Valve
Specifications
Brand Name :
BRANDO
Model Number :
H1S10B03
Certification :
None
Place of Origin :
CHINA
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Inner Box,Carton,Pallet
Port Size :
3/8''
Orifice Size :
10mm
Max Working Pressure :
160 Bar
Function :
2 Way Normally Closed
Body Material :
Stainless Steel
Diaphragm Material :
PTFE
Voltage :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Operation :
Piston Pilot Operated
Description

3/8'' 120 160 bar High Pressure Water Air Gas Stainless Steel 304 Solenoid Valve


Product Features:

1. Working Medium: Air, Water, Gas, Liquid, etc
2. Max Working Pressure: 160 bar (See the parameter table below for details)
3. Seal Material: PTFE
4. Body Material: Stainless Steel 304
5. Port Size: 3/8'', 1/2'', 3/4'', 1''
6. Orifice Size: 10mm, 15mm, 20mm, 25mm
7. Operation: Piston Pilot Operated
8. Function: 2 Way Normally Closed
9. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)


Technical Data:

Model No
Orifice
Size
(mm)
Port
Size
(Inch)
CV
Working Pressure
(bar)
Body Material
Seal Material
Function
220VAC
24VDC
H1S10B03
10
3/8''
3.5
6 to 160
6 to 120
SS304
PTFE
2 Way NC
H1S15B04
15
1/2''
4.7
6 to 160
6 to 120
H1S20B06
20
3/4''
7.0
6 to 160
6 to 120
H1S25B25
25
1''
11.0
6 to 160
6 to 120

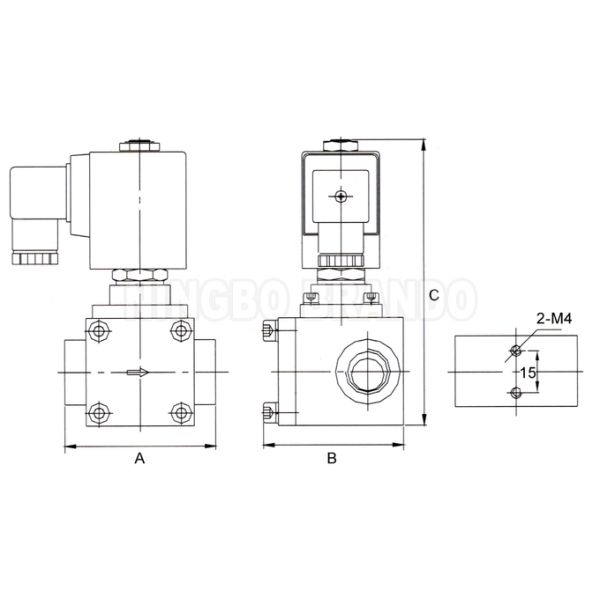

Main Dimension:

3/8'' 120 160 bar High Pressure Water Air Gas Stainless Steel 304 Solenoid Valve

Model No
Port Size
A
B
C
H1S10B03
3/8''
60
55
109
H1S15B04
1/2''
70
65
119
H1S20B06
3/4''
80
74
124
H1S25B25
1''
90
87
134


More Solenoid Valves for you to choose:

3/8'' 120 160 bar High Pressure Water Air Gas Stainless Steel 304 Solenoid Valve3/8'' 120 160 bar High Pressure Water Air Gas Stainless Steel 304 Solenoid Valve3/8'' 120 160 bar High Pressure Water Air Gas Stainless Steel 304 Solenoid Valve

3/8'' 120 160 bar High Pressure Water Air Gas Stainless Steel 304 Solenoid Valve3/8'' 120 160 bar High Pressure Water Air Gas Stainless Steel 304 Solenoid Valve3/8'' 120 160 bar High Pressure Water Air Gas Stainless Steel 304 Solenoid Valve


Our Production:

3/8'' 120 160 bar High Pressure Water Air Gas Stainless Steel 304 Solenoid Valve


FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of applications.

Question 2: How can you tell if your solenoid is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, orifice size, temperature, pressure, voltage, response time and certification required for your application.


Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
