ASCO Type 322108 HYT Diaphragm For 8353J039 Pulse Jet Valve Replacement Kit
ASCO Type 322108 HYT Diaphragm For 8353J039 Pulse Jet Valve Replacement Kit
ASCO Type 322108 HYT Diaphragm For 8353J039 Pulse Jet Valve Replacement Kit
ASCO Type 322108 HYT Diaphragm For 8353J039 Pulse Jet Valve Replacement Kit
Specifications
Brand Name :
BRANDO
Model Number :
322108
Certification :
CE, ISO
Place of Origin :
China
MOQ :
5 set
Price :
Negotiation
Payment Terms :
T/T,PayPal,Western Union
Supply Ability :
100000 sets per month
Delivery Time :
3 to 5 working days
Packaging Details :
Plastic bag, Box, Carton, Pallet
Product Name :
Pulse Valve Diaphragm
Fitted Pulse Valve Port Size :
1 1/2''
Fitted Pulse Valve Model :
8353J039
Diaphragm Material :
HYT (HYTREL)
Color :
White, Black
1 Set :
1x Big Diaphragm, 1x Small Diaphragm, 1x Spring
Description

ASCO Type 322108 HYT Diaphragm For 8353J039 Pulse Jet Valve Replacement Kit


The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.

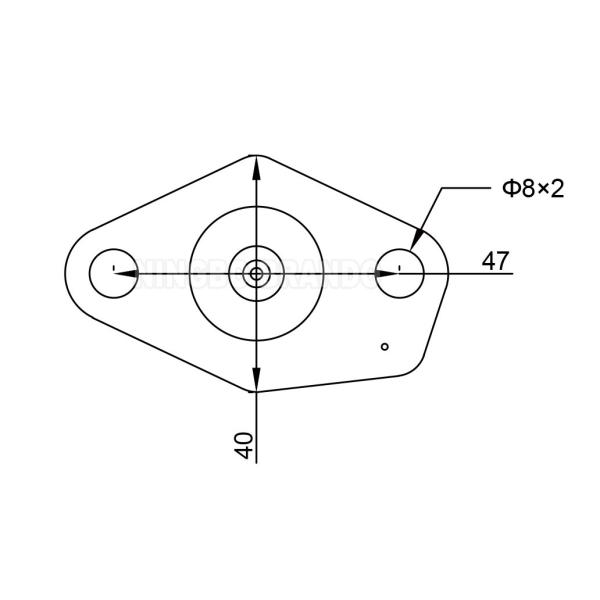

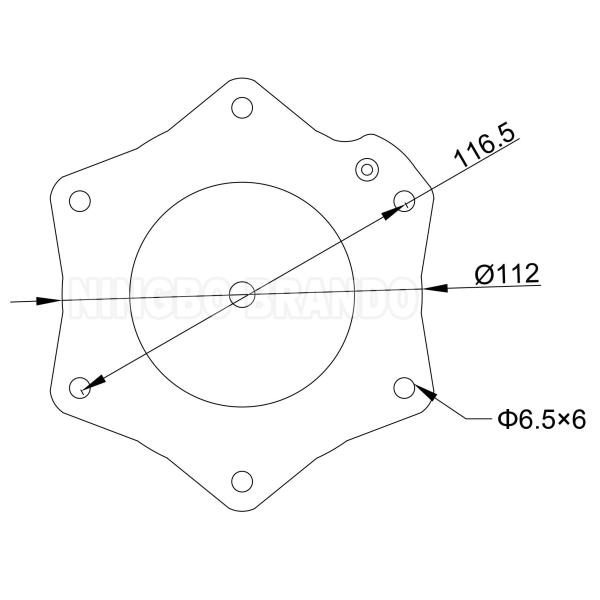

Overall Dimension of 322108 Diaphragm:

ASCO Type 322108 HYT Diaphragm For 8353J039 Pulse Jet Valve Replacement Kit ASCO Type 322108 HYT Diaphragm For 8353J039 Pulse Jet Valve Replacement Kit
Main Diaphragm Secondary Diaphragm


Model No of Pulse Valve Diaphragm:

Integral Pilot
Pulse Valve
Model No
Remote Pilot
Pulse Valve
Model No
Pulse Valve
Port Size

Diaphragm

Model
Diaphragm
Model
(10 pack)
Diaphragm Material
-
8353C033
3/4''
96875
238864
NBR diaphragm
-
8353C030
3/4''
96875
238864
NBR diaphragm
-
8353C004
3/4''
96875
238864
NBR diaphragm
-
8353C035
1''
200262
238866
HYTREL diaphragm
8353G041
-
1''
316563
238866
HYTREL diaphragm
8353G006
-
1''
300144
-
CR diaphragm, PA disc
8353G005
-
1 1/4''
300144
-
CR diaphragm, PA disc
8353G001
-
1 1/2''
300144
-
CR diaphragm, PA disc
-
8353H038
1 1/2''
276886
238870
HYTREL diaphragm
8353J039
-
1 1/2''
322108
238870
HYTREL diaphragm
8353G061
-
1 1/2''
316297
-
NBR diaphragm, PA disc
-
8353A062
1 1/2''
276884
-
NBR diaphragm, PA disc
8353G002
-
2''
300145
-
CR diaphragm, PA disc
-
8353 048
2''
256802
256797
CR diaphragm
8353G050
-
2''
316029
256797
CR diaphragm
8353G007
-
2 1/2''
176878
-
CR diaphragm, PA disc
8353G008
-
3''
176878
-
CR diaphragm, PA disc

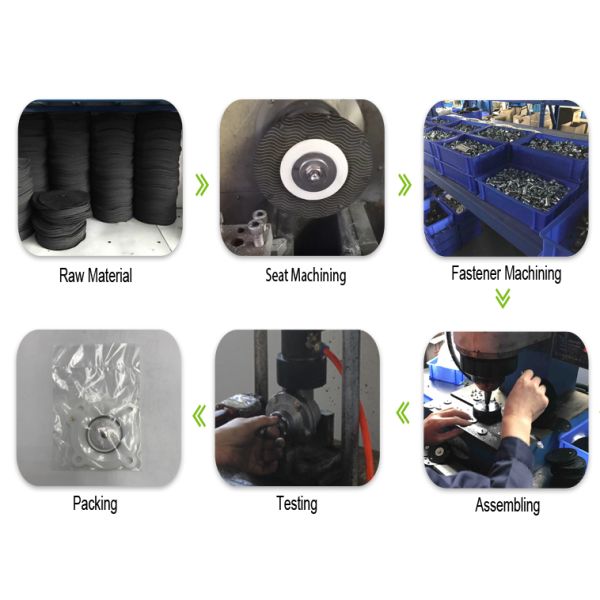

Our Production of Pulse Valve Diaphragm:

ASCO Type 322108 HYT Diaphragm For 8353J039 Pulse Jet Valve Replacement Kit


Related Products:

ASCO Type 322108 HYT Diaphragm For 8353J039 Pulse Jet Valve Replacement Kit ASCO Type 322108 HYT Diaphragm For 8353J039 Pulse Jet Valve Replacement Kit ASCO Type 322108 HYT Diaphragm For 8353J039 Pulse Jet Valve Replacement Kit

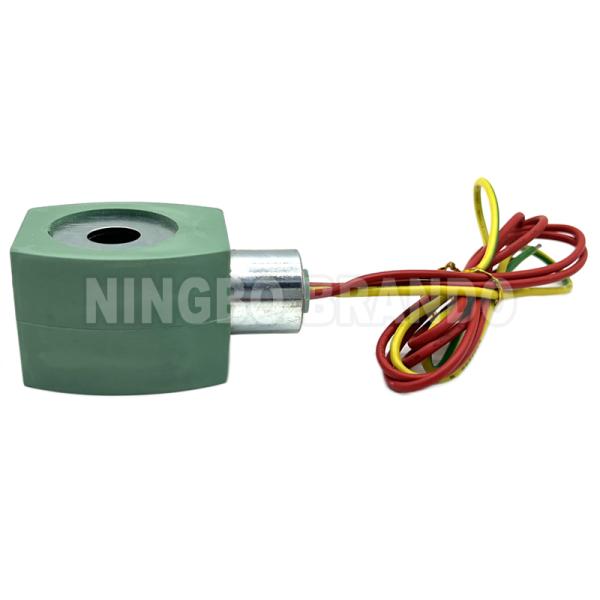

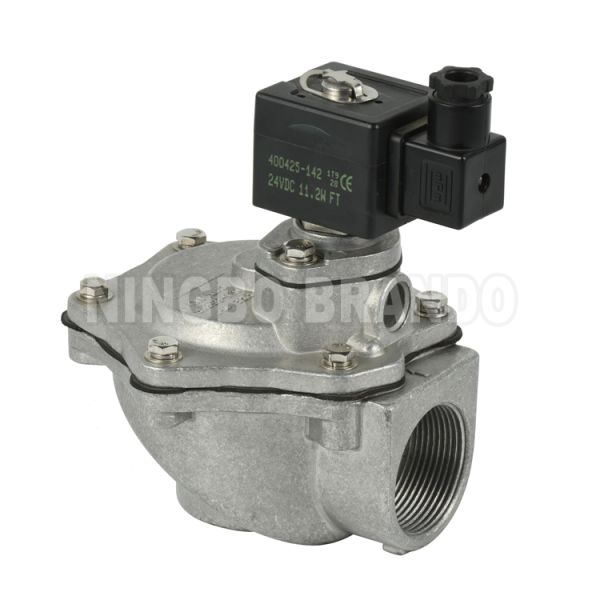

Solenoid Coil Pulse Valve Pulse Controller


Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
