C113827 C113-827 Diaphragm Kit For ASCO Solenoid Pulse Diaphragm Valve SCG353A047
C113827 C113-827 Diaphragm Kit For ASCO Solenoid Pulse Diaphragm Valve SCG353A047
C113827 C113-827 Diaphragm Kit For ASCO Solenoid Pulse Diaphragm Valve SCG353A047
C113827 C113-827 Diaphragm Kit For ASCO Solenoid Pulse Diaphragm Valve SCG353A047
Specifications
Brand Name :
Brando
Model Number :
C113827
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C,T/T,PayPal,Western Union
Supply Ability :
100000 sets per month
Delivery Time :
4 to 7 working days
Packaging Details :
Plastic bag, Box, Carton, Pallet
Product Name :
Pulse Valve Diaphragm
Ordering Code :
C113827, C113-827
Diaphragm Material :
NBR, VITON
1 Set :
1pc Big Diaphragm, 1pc Small Diaphragm, 1pc Springs
Fitted Pulse Valve Port Size :
1.5''
Fitted Pulse Valve Model :
SCG353A047
Description

C113827 C113-827 Diaphragm Kit For ASCO Solenoid Pulse Diaphragm Valve SCG353A047


C113827, C113-827 Diaphragm (Membrane) for ASCO pulse valve SCG353A047; NBR material is standard, working temperature range is -5 to +80 ℃; Viton material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.


Ordering Number of Diaphragm For ASCO Pulse Valve:

Valve Port Size
Pulse Valve Model
Diaphragm Model
Diaphragm Material
(FKM is also available)
3/4''
SCG353A043
C113444
TPE (White), NBR (Black)
1''
SCG353A044
3/4''
SCG353-052
1''
SCG353-053
3/4''
SGG353A043
1''
SGG353A044
3/4''
SGG353-052
1''
SGG353-053
1 1/2''
SCG353A047
C113827
NBR
SGG353A065
2''
SCG353A050
C113685, C113686
NBR
2 1/2''
SCG353A051
3''
SCXE353.060
C123432, C123433
NBR
SCG353D060
3/4''
G3530A41
C113443
NBR
1''
G353A042
3/4''
G353-055
1''
G353-056
1 1/2''
G353A045
C113825
NBR
G353-066
1 1/2''
G353A046
C113826
NBR
G353A063
2''
G353A048
C113684
NBR
2 1/2''
G353A049

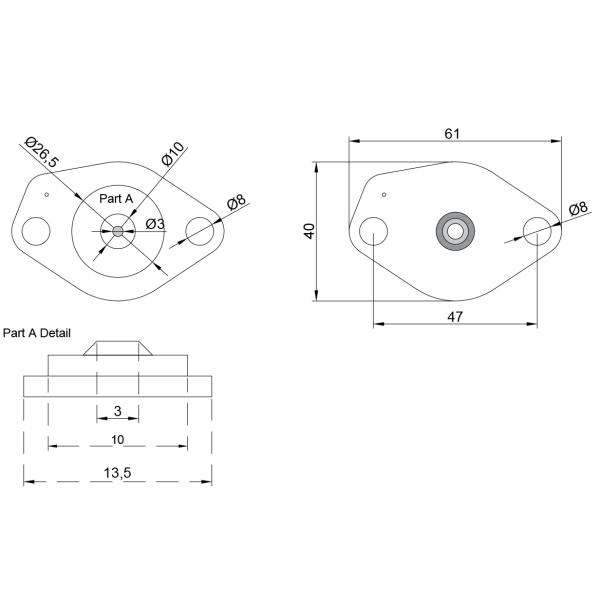

Main Dimension of C113827 Diaphragm:


Secondary Diaphragm:

C113827 C113-827 Diaphragm Kit For ASCO Solenoid Pulse Diaphragm Valve SCG353A047

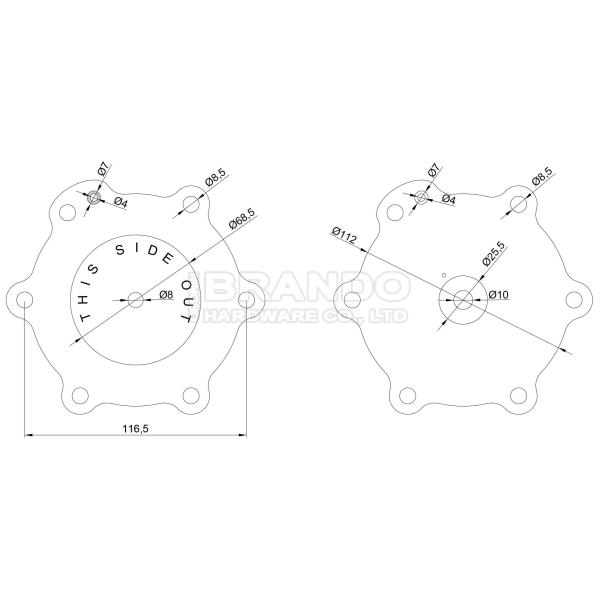

Main Diaphragm:

C113827 C113-827 Diaphragm Kit For ASCO Solenoid Pulse Diaphragm Valve SCG353A047


Product Video of C113827 Membrane:


Pictures of Pulse Valve Diaphragm Production:

C113827 C113-827 Diaphragm Kit For ASCO Solenoid Pulse Diaphragm Valve SCG353A047
