QR N282 CY123 Solenoid Coil For Goyen Pulse Solenoid Valve 24VDC 20W 25W
QR N282 CY123 Solenoid Coil For Goyen Pulse Solenoid Valve 24VDC 20W 25W
QR N282 CY123 Solenoid Coil For Goyen Pulse Solenoid Valve 24VDC 20W 25W
QR N282 CY123 Solenoid Coil For Goyen Pulse Solenoid Valve 24VDC 20W 25W
QR N282 CY123 Solenoid Coil For Goyen Pulse Solenoid Valve 24VDC 20W 25W
QR N282 CY123 Solenoid Coil For Goyen Pulse Solenoid Valve 24VDC 20W 25W
Specifications
Brand Name :
BRANDO
Model Number :
BB12039508
Certification :
None
Place of Origin :
Ningbo, China
MOQ :
200
Price :
Negotiation
Payment Terms :
T/T,PayPal,Western Union
Supply Ability :
200000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Inner Box, Carton, Pallet
Product Name :
Pulse Valve Solenoid Coil
Ordering Code :
QR, CY123, N282, C53056N
Voltage :
24VDC, 110VAC, 220VAC
Power :
20W, 25W
Connector :
DIN43650A
Fitted Pulse Valve Model :
CA15T, CA20T, CA25T, CA35T, CA45T, CA50T, CA62T, CA76T, CA25DD, CA45DD, CAC25FS, CA45FS, CA76MM
Description

QR N282 CY123 Solenoid Coil For Goyen Pulse Solenoid Valve 24VDC 20W 25W

This is a solenoid coil for goyen pulse valve CA15T, CA20T, CA25T, CA35T, CA45T, CA50T, CA62T, CA76T, CA25DD, CA45DD, CAC25FS, CA45FS, CA76MM; Ordering Code: QR, CY123, N282, C53056N; Voltage: 24VDC, 110VAC, 220VAC; Power: 20W, 25W; connector type: DIN 43650 Form A.


Pulse valves (also called diaphragm valves) are the “switch” for compressed air in the dust clean blowing system of the pulse bag filter. It is used to control the release of air pulses in the cleaning cycle. When the dust collector control board starts the cleaning cycle, it sends an electrical signal to the solenoid valve, and then activates the pulse valve. Inside the pulse valve, the rubber diaphragm opens and closes to release the compressed air stored in the air header. At this time, the air enters the blowing pipe above the filter through the valve, and then enters the filter down to clean the filter bag.

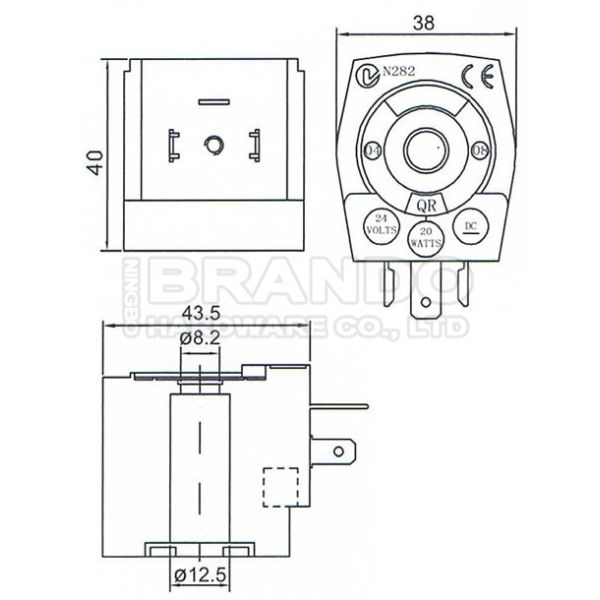

Dimension & Data of QR Coil & K0380 Armature:

QR N282 CY123 Solenoid Coil For Goyen Pulse Solenoid Valve 24VDC 20W 25W

BRANDO Model
BB12039508
Ordering Code

QR, N282, CY123
Voltage
220VAC, 110VAC, 24VDC
Power
25W, 20W
Connector
DIN 43650 Form A

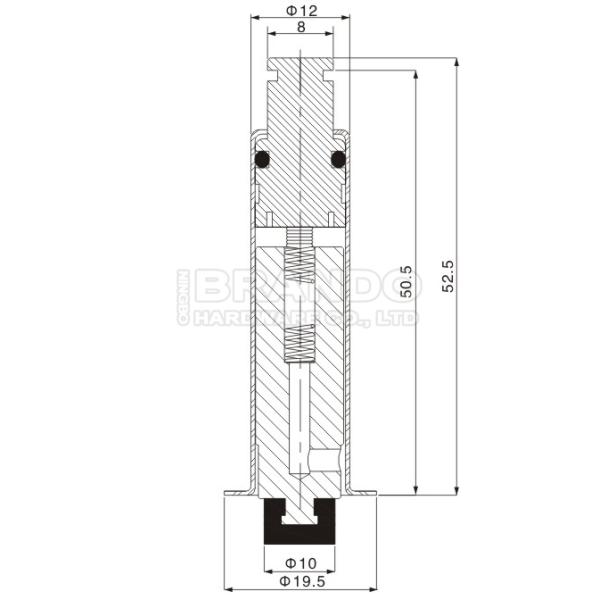

QR N282 CY123 Solenoid Coil For Goyen Pulse Solenoid Valve 24VDC 20W 25W

BRANDO Model
BAPC212050501
Ordering Code
K0380, M1138B
Guide Tube Material
Stainless Steel
Seal Material
NBR


Video of QR N282 CY123 Solenoid Coil:


BRANDO Solenoid Valve Coils Production Video:


More Goyen Type Pulse Valves for you to choose:

QR N282 CY123 Solenoid Coil For Goyen Pulse Solenoid Valve 24VDC 20W 25W QR N282 CY123 Solenoid Coil For Goyen Pulse Solenoid Valve 24VDC 20W 25W QR N282 CY123 Solenoid Coil For Goyen Pulse Solenoid Valve 24VDC 20W 25W QR N282 CY123 Solenoid Coil For Goyen Pulse Solenoid Valve 24VDC 20W 25W
T Series DD Series FS Series MM Series
QR N282 CY123 Solenoid Coil For Goyen Pulse Solenoid Valve 24VDC 20W 25W QR N282 CY123 Solenoid Coil For Goyen Pulse Solenoid Valve 24VDC 20W 25W QR N282 CY123 Solenoid Coil For Goyen Pulse Solenoid Valve 24VDC 20W 25W QR N282 CY123 Solenoid Coil For Goyen Pulse Solenoid Valve 24VDC 20W 25W
RCA Series Solenoid Coil Solenoid Armature Diaphragm
