ASCO Type Solenoid Valve Coil MP-C-011 24VAC 110VAC 120VAC 220VAC 240VAC
ASCO Type Solenoid Valve Coil MP-C-011 24VAC 110VAC 120VAC 220VAC 240VAC
ASCO Type Solenoid Valve Coil MP-C-011 24VAC 110VAC 120VAC 220VAC 240VAC
ASCO Type Solenoid Valve Coil MP-C-011 24VAC 110VAC 120VAC 220VAC 240VAC
Specifications
Certification :
None
Place of Origin :
Ningbo, China
Ordering Code :
MP-C-011
Reference No :
099257-004G,099257-014G, 099257-016D,099257-006G, 099257-009D
Application :
Henny Penny Fryer
Model Number :
BB17540010
MOQ :
200
Supply Ability :
250000 pieces per month
Packaging Details :
Inner Box,Carton,Pallet
Connector :
Flying Leads
Fitted Solenoid Valve Model :
18724, 18721, 29515, 29547, 17120, 17121
Brand Name :
BRANDO
Price :
Negotiation
Delivery Time :
Negotiation
Product Name :
Solenoid Valve Coil
Voltage :
24VAC, 110VAC, 120VAC, 220VAC, 240VAC (50/60Hz)
Payment Terms :
T/T,PayPal,Western Union
Description

ASCO Type Solenoid Valve Coil MP-C-011 24VAC 110VAC 120VAC 220VAC 240VAC




This solenoid coil is same with ASCO Red-Hat MP-C-011 solenoid coil, which is popularly used for Henny Penny fryer steam solenoid valve. Solenoid Coil Standard Voltage: 24VAC, 110VAC, 120VAC, 220VAC, 240VAC. Fitted Solenoid Valve Model: 18724, 18721, 29515, 29547, 17120, 17121. The solenoid coil is integral in the operation of a solenoid valve. It is what converts the electric current into a magnetic field which in turn allows the operation of the solenoid valve.

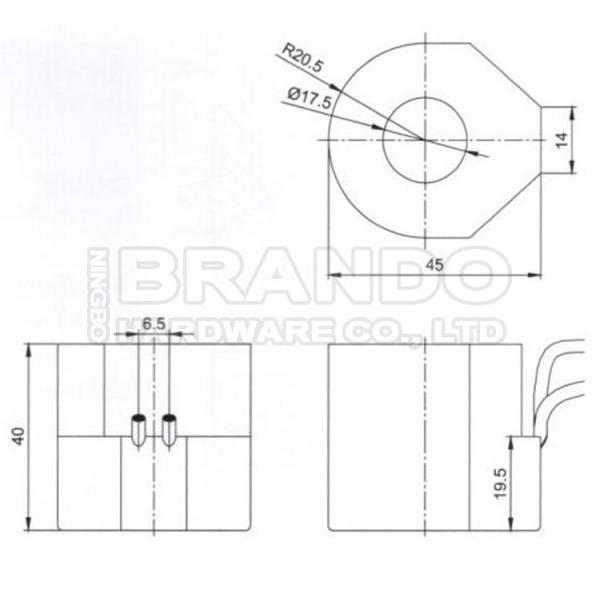

Dimension & Data of MP-C-011 Solenoid Coil, Armature:

ASCO Type Solenoid Valve Coil MP-C-011 24VAC 110VAC 120VAC 220VAC 240VAC

BRANDO Model
MP-C-011
Connector
Flying Leads
Voltage


24VAC, 110VAC, 120VAC,

220VAC, 240VAC (50/60Hz)
Insulation Class
F, H
Temperature Class
T, B
Fitted Solenoid Valve Model
18724, 18721, 29515, 29547, 17120, 17121
Application
Henny Penny Fryer

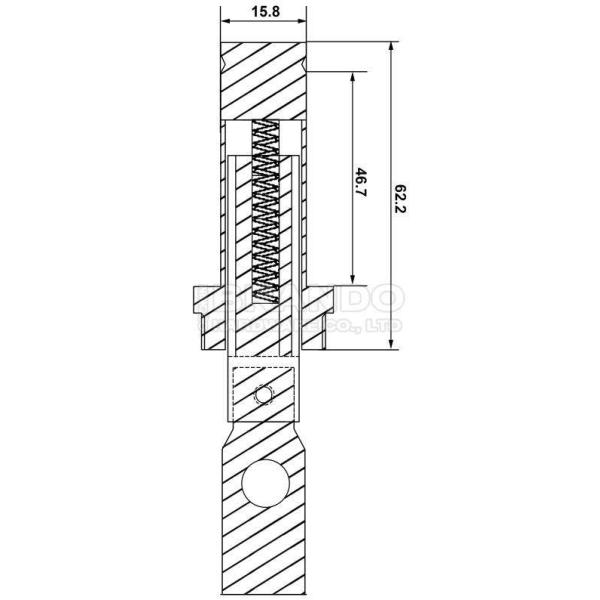

ASCO Type Solenoid Valve Coil MP-C-011 24VAC 110VAC 120VAC 220VAC 240VAC

BRANDO Model
BAPC216049003
Function
2 Way Normally Closed
Plunger Tube Material
Stainless Steel
Shading Ring Material
Copper
Connection Type
Thread
Fitted Solenoid Coil
MP-C-011
Application
Henny Penny Fryer

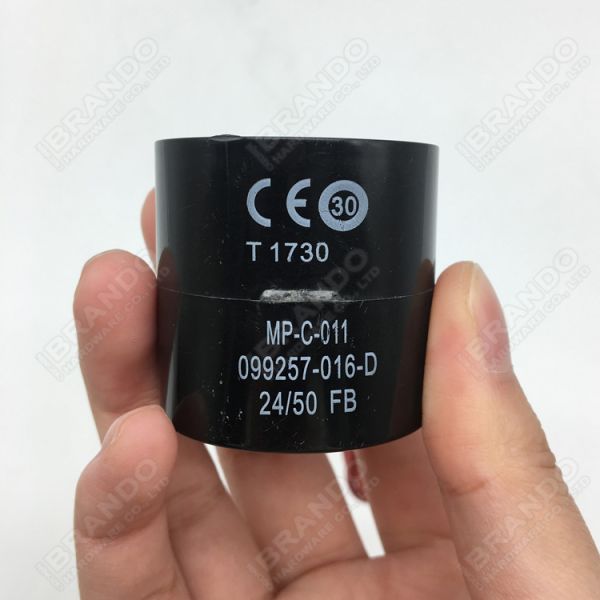

Video of Solenoid Valve Coil MP-C-011 240VAC:


BRANDO Solenoid Valve Coils Production Video:

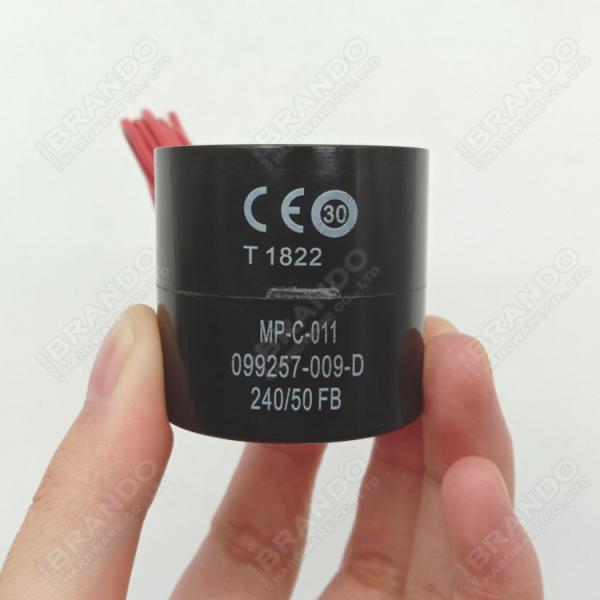

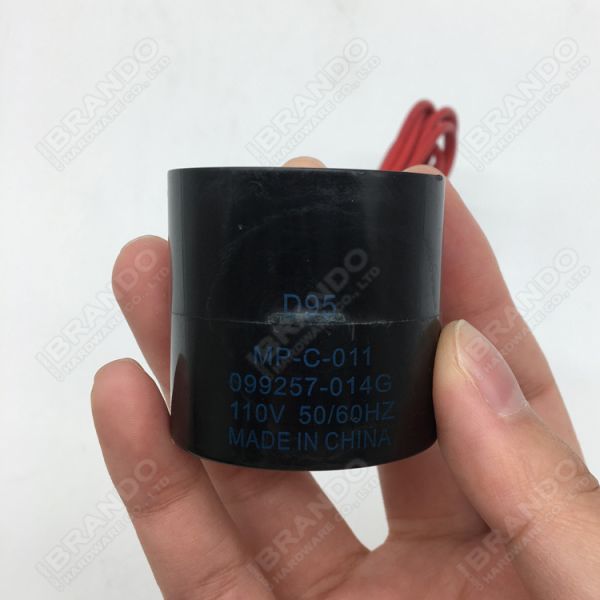

More Voltages of MP-C-011 Solenoid Coils for you to choose:

ASCO Type Solenoid Valve Coil MP-C-011 24VAC 110VAC 120VAC 220VAC 240VAC ASCO Type Solenoid Valve Coil MP-C-011 24VAC 110VAC 120VAC 220VAC 240VAC ASCO Type Solenoid Valve Coil MP-C-011 24VAC 110VAC 120VAC 220VAC 240VAC
24VAC 110VAC, 120VAC 220VAC, 240VAC
