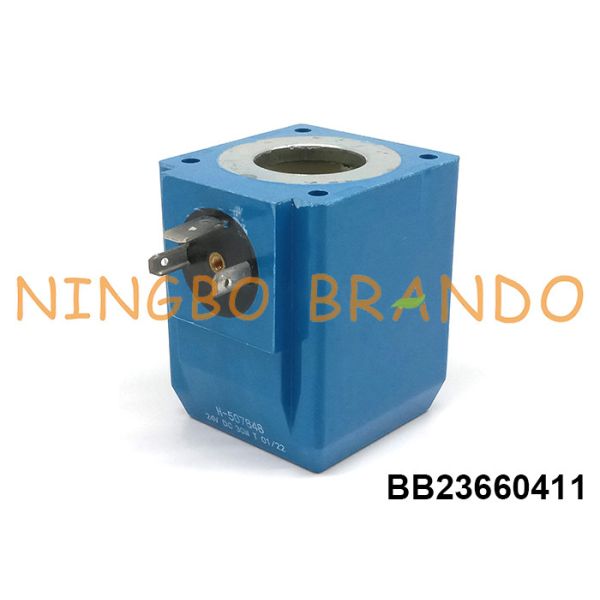

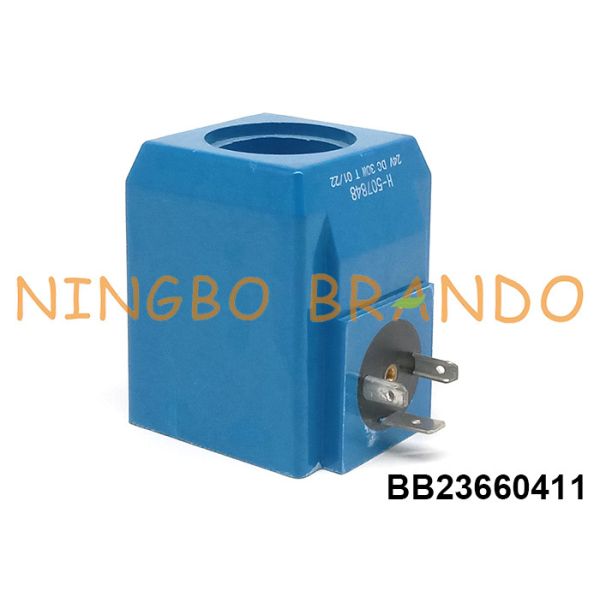

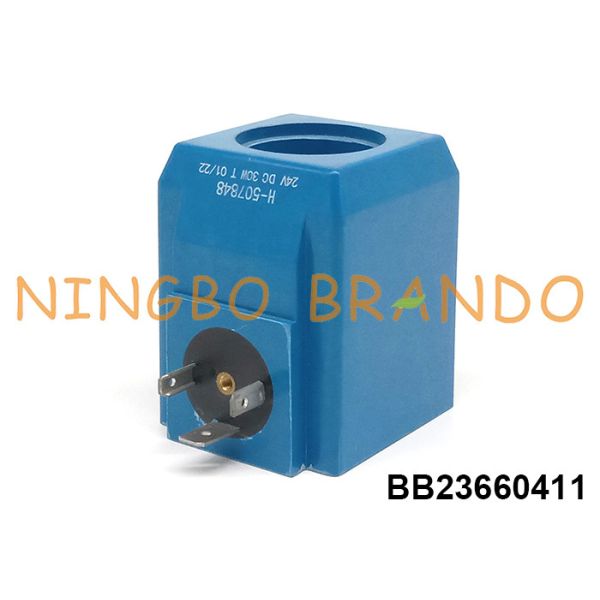

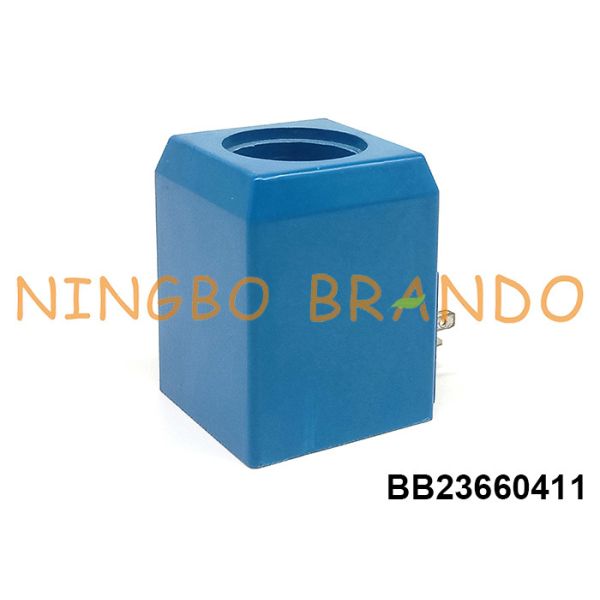

Eaton Vickers Type Hydraulic Solenoid Valve Coil 507847 12VDC 507848 24VDC 30W
Eaton Vickers Type Hydraulic Solenoid Valve Coil 507847 12VDC 507848 24VDC 30W
Eaton Vickers Type Hydraulic Solenoid Valve Coil 507847 12VDC 507848 24VDC 30W
Eaton Vickers Type Hydraulic Solenoid Valve Coil 507847 12VDC 507848 24VDC 30W
Eaton Vickers Type Hydraulic Solenoid Valve Coil 507847 12VDC 507848 24VDC 30W
Eaton Vickers Type Hydraulic Solenoid Valve Coil 507847 12VDC 507848 24VDC 30W
Eaton Vickers Type Hydraulic Solenoid Valve Coil 507847 12VDC 507848 24VDC 30W
Eaton Vickers Type Hydraulic Solenoid Valve Coil 507847 12VDC 507848 24VDC 30W
Eaton Vickers Type Hydraulic Solenoid Valve Coil 507847 12VDC 507848 24VDC 30W
Eaton Vickers Type Hydraulic Solenoid Valve Coil 507847 12VDC 507848 24VDC 30W
Specifications
Model Number :
BB23660411
Brand Name :
Brando
MOQ :
300pcs
Delivery Time :
4-8 days
Payment Terms :
L/C, T/T, Western Union,Paypal, MoneyGram
Voltages :
12VDC, 24VDC
Insulation Class :
F
Price :
Negotiation
Power :
30W
Certification :
CE
Place of Origin :
China
Packaging Details :
Inner Box, Carton, Pallet
Supply Ability :
300000 set per month
Reference NO :
507847, 507848
Description

Eaton Vickers Type Hydraulic Solenoid Valve Coil 507847 12VDC 507848 24VDC 30W

Vickers solenoid coil, also called Vickers coil, Eaton Vickers solenoid coil or Eaton solenoid coil. Just like Rexroth solenoid coil and Yuken solenoid coil, Vickers solenoid coil is a necessary part of Vickers solenoid or Vickers solenoid valve. By the voltage, Vickers solenoid coil can be divided into AC and DC type.

Replacement solenoid coils are needed in hydraulic systems when the solenoid coil used to control a hydraulic solenoid valve wears out or stops functioning. A solenoid is an electromagnet that consists of a tightly wrapped metal coil around a solid metal core. They produce a controlled, uniform magnetic field, and the metal coil can be inserted or removed which creates a method of control for various devices, including a hydraulic valve.

How do solenoid coils work in a hydraulic system?
In a hydraulic solenoid valve, solenoids are used to control the flow of fluid. Most commonly, they are used as a low-power switch that opens and closes a pilot valve, which in turns controls the main valve by applying pressure to a connected piston or diaphragm.

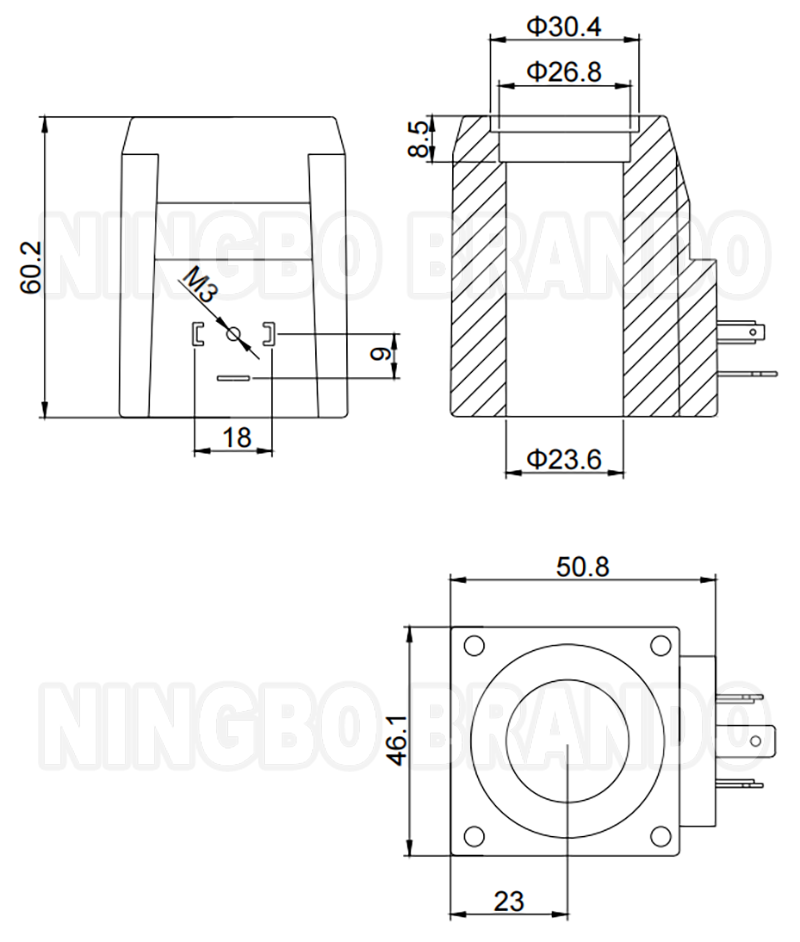

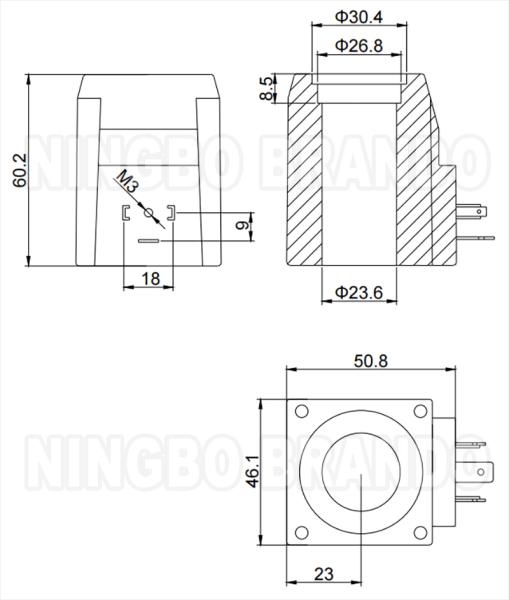

Dimension & Data of Hydraulic Solenoid Valve Coil:

Eaton Vickers Type Hydraulic Solenoid Valve Coil 507847 12VDC 507848 24VDC 30W

Model
BB23660411
Ref. No
507847 (12V)
507848 (24V)
Voltage
12VDC, 24VDC
Power
30W
Connector Type
DIN43650A
Insulation Class
F
Protection Class
IP65

Brando Factory Production of Solenoid Valve Coil:



Other hydraulic solenoid valve coil fo you to choose:

Rexroth Type Hydraulic Solenoid Valve Coil:

Eaton Vickers Type Hydraulic Solenoid Valve Coil 507847 12VDC 507848 24VDC 30WEaton Vickers Type Hydraulic Solenoid Valve Coil 507847 12VDC 507848 24VDC 30WEaton Vickers Type Hydraulic Solenoid Valve Coil 507847 12VDC 507848 24VDC 30WEaton Vickers Type Hydraulic Solenoid Valve Coil 507847 12VDC 507848 24VDC 30W

Yuken Type Hydraulic Solenoid Valve Coil:

Eaton Vickers Type Hydraulic Solenoid Valve Coil 507847 12VDC 507848 24VDC 30WEaton Vickers Type Hydraulic Solenoid Valve Coil 507847 12VDC 507848 24VDC 30WEaton Vickers Type Hydraulic Solenoid Valve Coil 507847 12VDC 507848 24VDC 30WEaton Vickers Type Hydraulic Solenoid Valve Coil 507847 12VDC 507848 24VDC 30W
