C131618 ASCO Type SCE238D003 SCE238D008 Solenoid Valve Diaphragm Kit
C131618 ASCO Type SCE238D003 SCE238D008 Solenoid Valve Diaphragm Kit
C131618 ASCO Type SCE238D003 SCE238D008 Solenoid Valve Diaphragm Kit
C131618 ASCO Type SCE238D003 SCE238D008 Solenoid Valve Diaphragm Kit
Specifications
Payment Terms :
T/T,Western Union,PayPal
Fitted Solenoid Valve Model No :
SCE238D003, SCE238D008
Model Number :
C131618
MOQ :
20sets
Supply Ability :
100000sets per month
Delivery Time :
4 to 5 working days
Fitted Solenoid Valve Port Size :
1/2''
Diaphragm Material :
NBR
Certification :
None
Place of Origin :
Ningbo, China
Brand Name :
BRANDO
Packaging Details :
Plastic bag, Carton, Pallet
Product Name :
Solenoid Valve Diaphragm
Price :
Negotiation
Description

C131618 ASCO Type SCE238D003 SCE238D008 Solenoid Valve Diaphragm Kit


C131618 diaphragm is used in ASCO SCE238D003, SCE238D008 solenoid valves. The diaphragm is the most important part of the solenoid valve. When the solenoid valve is energised, the trapped air above solenoid valve diaphragm is quickly exhausted causing fast opening of main diaphragm valve. When the solenoid valve is de-energised, air escapes through bleed hole of main solenoid valve to balance the diaphragm pressure and instantly closes the solenoid valve.

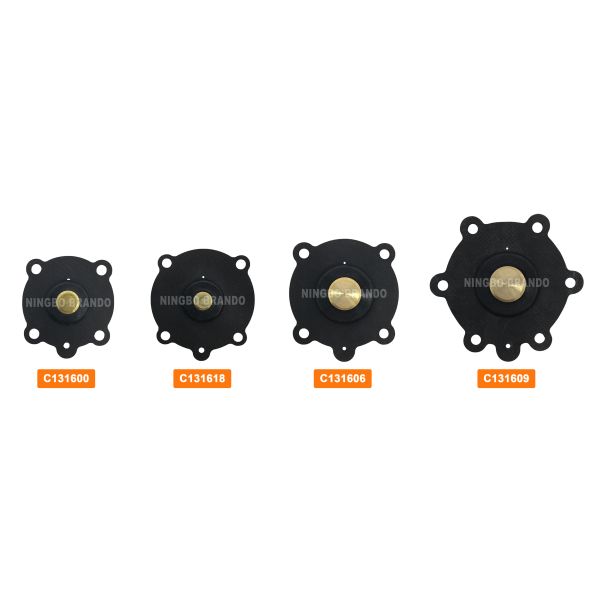

Reference No:
C131618 ASCO Type SCE238D003 SCE238D008 Solenoid Valve Diaphragm Kit
BRANDO
Model No
Ref No
Fitted Solenoid Valve
Model NO
Fitted Solenoid Valve
Port Size
Diaphragm Material
238D
C131600
SCE238D001, SCE238D002, SCE238D006, SCE238D007
3/8'', 1/2''
(DN12mm)
NBR (Standard)
EPDM (Optional)
FKM (Optional)
238D15
C131618
SCE238D003, SCE238D008
1/2''
(DN15mm)
238C
C131606
SCE238D004, SCE238D009
3/4''
(DN20mm)
238E
C131609
SCE238D005, SCE238D010
1''
(DN25mm)

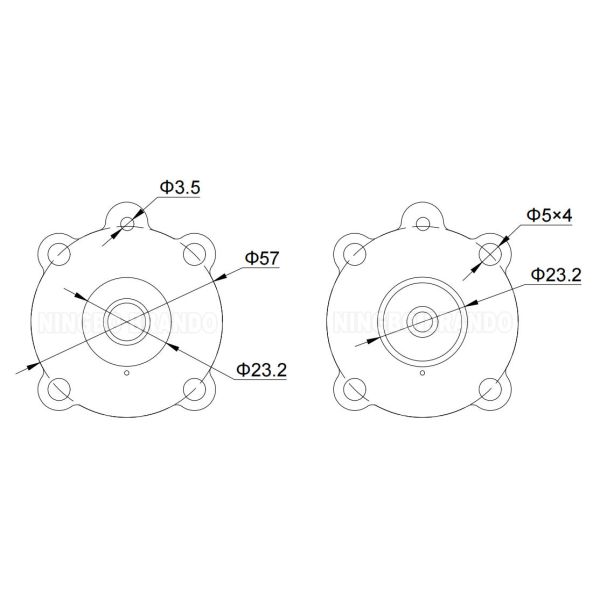

C131618 Dimension:
C131618 ASCO Type SCE238D003 SCE238D008 Solenoid Valve Diaphragm Kit

BRANDO Production:
C131618 ASCO Type SCE238D003 SCE238D008 Solenoid Valve Diaphragm Kit

Related Products:

C131618 ASCO Type SCE238D003 SCE238D008 Solenoid Valve Diaphragm Kit
C131618 ASCO Type SCE238D003 SCE238D008 Solenoid Valve Diaphragm Kit
C131618 ASCO Type SCE238D003 SCE238D008 Solenoid Valve Diaphragm Kit

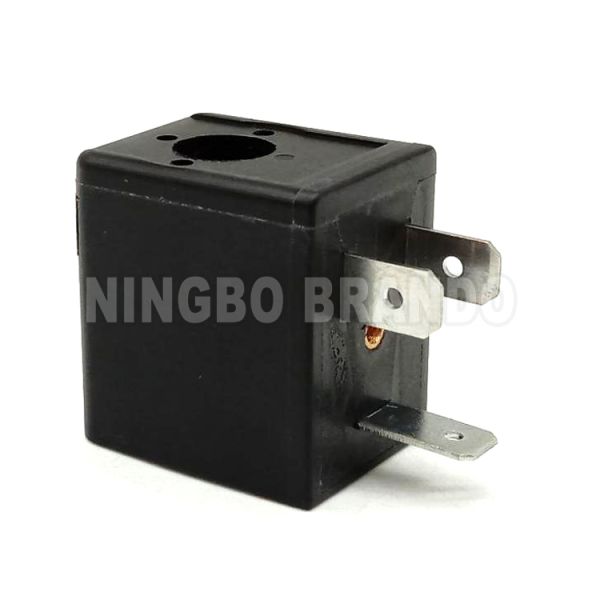

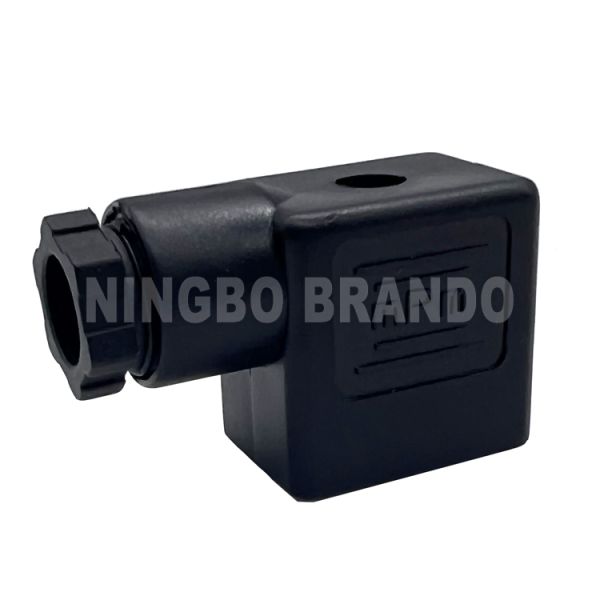

Brass Solenoid Valve Solenoid Valve Coil DIN43650B Connector
