GC Type Valves Solenoid Coil HS4GN01A24 HS4GN02A24 HS4GN03A24 HS4GN04A24 HS4GN07A24
GC Type Valves Solenoid Coil HS4GN01A24 HS4GN02A24 HS4GN03A24 HS4GN04A24 HS4GN07A24
GC Type Valves Solenoid Coil HS4GN01A24 HS4GN02A24 HS4GN03A24 HS4GN04A24 HS4GN07A24
GC Type Valves Solenoid Coil HS4GN01A24 HS4GN02A24 HS4GN03A24 HS4GN04A24 HS4GN07A24
Specifications
Brand Name :
BRANDO
Delivery Time :
Negotiation
Voltage :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Payment Terms :
T/T,PayPal,Western Union
Supply Ability :
250000 pieces per month
Code No :
HS4GN01A24, HS4GN02A24, HS4GN03A24, HS4GN04A24, HS4GN07A24, HS4GN13A24, HS4GN14A24, HS4GN15A24, HS4GN16A24, HS4GN17A24, HS4GN18A24, HS4GN19A24, HS4GN24A24, HS4GN33A24
Price :
Negotiation
Connector :
Flying Leads
Power :
13VA, 10W, 14W
Certification :
None
Place of Origin :
Ningbo, China
Product Name :
Solenoid Coil
Model Number :
BB13241286
MOQ :
200
Packaging Details :
Inner Box,Carton,Pallet
Description

GC Type Valves Solenoid Coil HS4GN01A24 HS4GN02A24 HS4GN03A24 HS4GN04A24 HS4GN07A24




This HS4GN solenoid coil is popularly used in GC solenoid valves; the standard coil voltage is 12VDC, 24VDC, 24VAC, 110VAC, 220VAC, and the standard coil power is 13VA, 10W, 14W, other voltage and power can be customized. The reference number of this coil is HS4GN01A24, HS4GN02A24, HS4GN03A24, HS4GN04A24, HS4GN07A24, HS4GN13A24, HS4GN14A24, HS4GN15A24, HS4GN16A24, HS4GN17A24, HS4GN18A24, HS4GN19A24, HS4GN24A24, HS4GN33A24.

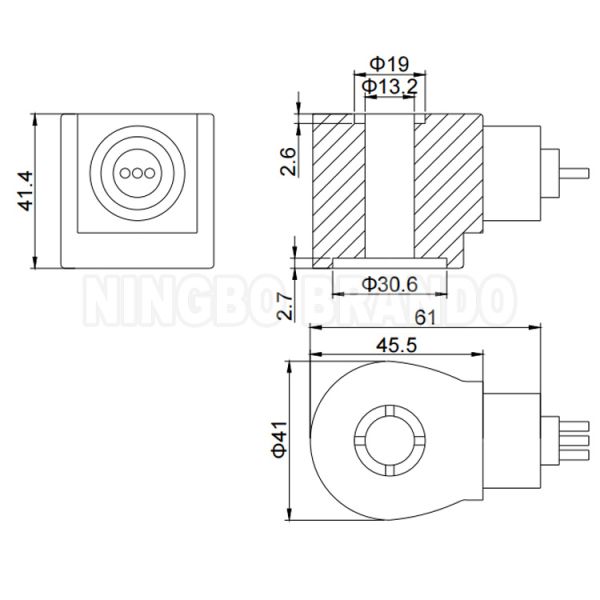

Technical Data:

GC Type Valves Solenoid Coil HS4GN01A24 HS4GN02A24 HS4GN03A24 HS4GN04A24 HS4GN07A24 BRANDO Model BB13241286
Voltage

12VDC, 24VDC,

24VAC, 110VAC, 220VAC
Power 13VA, 10W, 14W
Other voltage and power can be customized
Connection Type Flying Leads

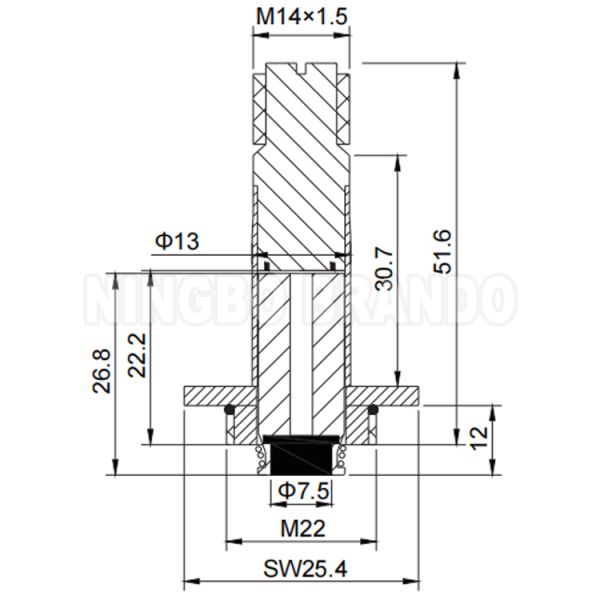

Fitted Armature:

GC Type Valves Solenoid Coil HS4GN01A24 HS4GN02A24 HS4GN03A24 HS4GN04A24 HS4GN07A24 BRANDO Model BAPC2130344103
Guide Tube Material SS304
Seal Material

NBR (standard)

EPDM, FKM (available)
Function 2 Way Normally Closed

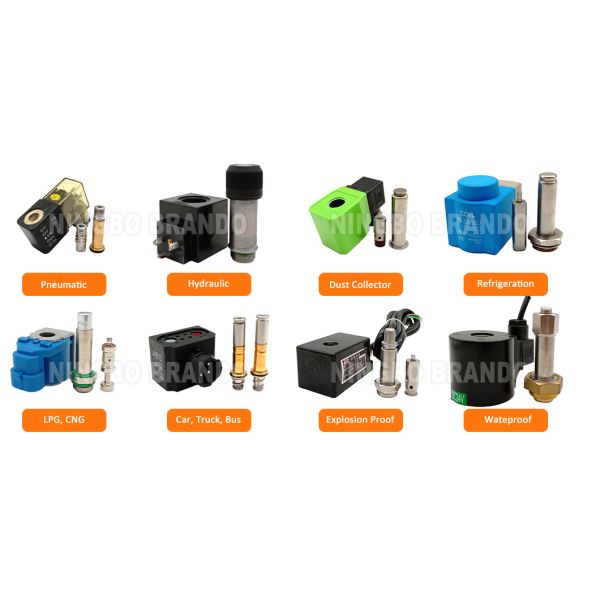

More Solenoid Coils and Armatures:

GC Type Valves Solenoid Coil HS4GN01A24 HS4GN02A24 HS4GN03A24 HS4GN04A24 HS4GN07A24
