DL15 Pneumatic Fluidizer Aerator Aeration Fluidizing Pad for Bin Silo Hopper
DL15 Pneumatic Fluidizer Aerator Aeration Fluidizing Pad for Bin Silo Hopper
DL15 Pneumatic Fluidizer Aerator Aeration Fluidizing Pad for Bin Silo Hopper
DL15 Pneumatic Fluidizer Aerator Aeration Fluidizing Pad for Bin Silo Hopper
Specifications
Model Number :
DL15
Disk and O-ring Material :
Silicone (Food Grade, Standard), FKM (High Temperature, Customizable)
MOQ :
70pcs
Delivery Time :
Negotiation
Payment Terms :
T/T, Western Union, PayPal
Brand Name :
BRANDO
Product Name :
Pneumatic Fluidizer
Packaging Details :
Box, Carton, Pallet
Price :
Negotiation
Supply Ability :
100000pcs per month
Certification :
None
Washer, Locknut and Stem Material :
SS304 (Standard) or Aluminum (Customizable)
Place of Origin :
Ningbo, China
Disk Color :
White, Yellow, Blue, Green (Silicone) Red, Brown (FKM)
Description
DL15 Pneumatic Fluidizer

Pneumatic fluidizer is an essential part for maintaining the quality and flowability of bulk materials stored in silos, bins, and hoppers. As compressed air passes between the fluidizing pad boot and the bin wall, the airflow causes the hopper wall to vibrate slightly while simultaneously fluidizing the stored material, to prevent compaction, eliminate moisture buildup, and maintain consistent material flow during discharge.

Without aeration, powders and finely ground materials can settle, compact, and cling to silo walls. This can lead to bridging, rat-holing, uneven flow, and costly downtime.

Technical Data:

Working Pressure
2 bar
4 bar
6 bar
Max Air Consumption
280 l/min
660 l/min
1200 l/min

DL15 Pneumatic Fluidizer Aerator Aeration Fluidizing Pad for Bin Silo Hopper

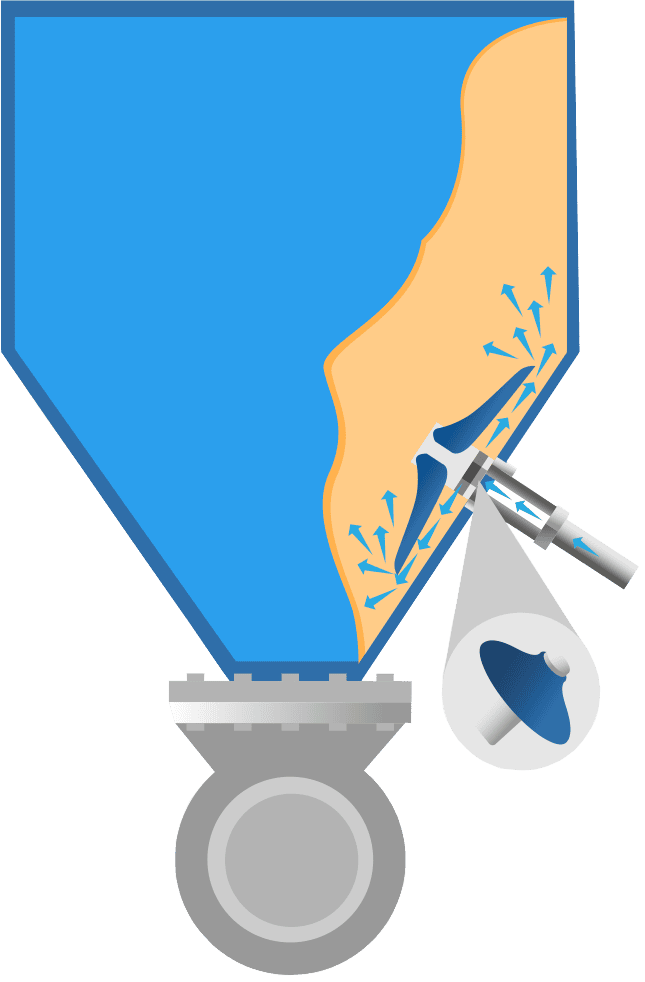

Working Principle:

DL15 Pneumatic Fluidizer Aerator Aeration Fluidizing Pad for Bin Silo Hopper

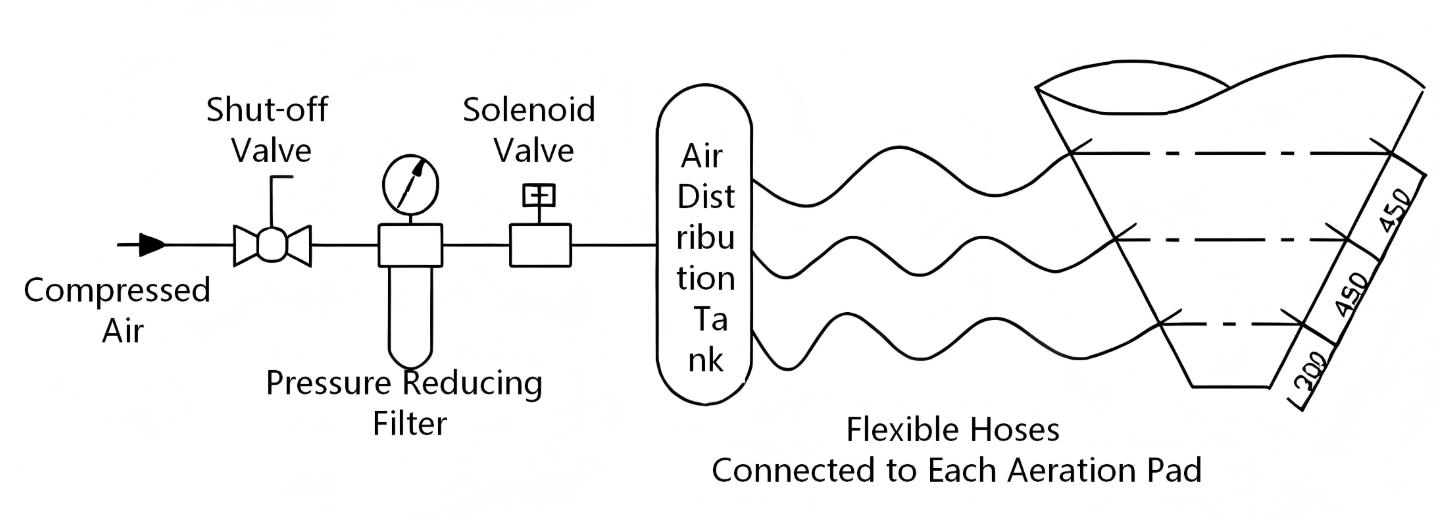

Installation:

DL15 Pneumatic Fluidizer Aerator Aeration Fluidizing Pad for Bin Silo Hopper

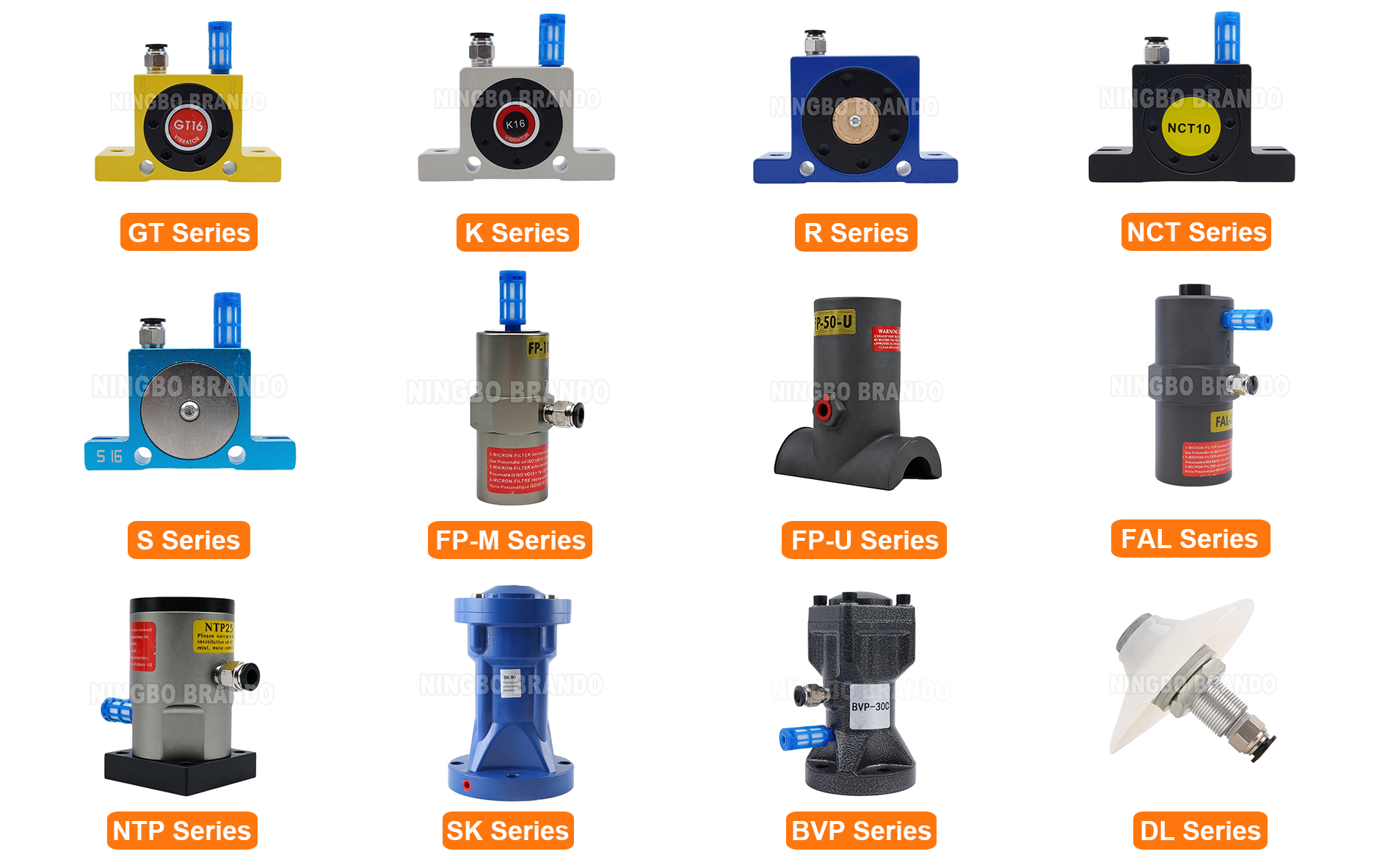

More Pneumatic Vibrators:

DL15 Pneumatic Fluidizer Aerator Aeration Fluidizing Pad for Bin Silo Hopper

Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
