Diaphragm Repair Kit For 2'' SBFEC Pulse Valve DMF-Z-50S DMF-Y-50S DMF-T-50S
Diaphragm Repair Kit For 2'' SBFEC Pulse Valve DMF-Z-50S DMF-Y-50S DMF-T-50S
Specifications
Brand Name :
Brando
Model Number :
D50
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
100000 sets per month
Delivery Time :
4 to 7 days
Packaging Details :
Plastic Bag, Inner Box, Carton, Pallet
Diaphragm Materia :
Rubber, Nylon
1 Set :
1PC Big Diaphragm, 1PC Small Diaphragm, 2PCS Springs
Fitted Pulse Valve Port Size :
2"
Product Name :
Pulse Valve Diaphragm
Diaphragm Material :
NBR, FKM
Fitted Pulse Valve Model :
DMF-Z-50S, DMF-Y-50S, DMF-T-50S
Description

Diaphragm Repair Kit For 2'' SBFEC Pulse Valve DMF-Z-50S DMF-Y-50S DMF-T-50S

The structure of diaphragm valve is simple, fluid resistance is small, flow capacity is larger than other types of valves with the same specifications; No leakage, can be used for high viscosity and suspended particle medium adjustment. The diaphragm isolates the media from the stem cavity, so no packing media will leak out. However, due to the limitation of diaphragm and lining materials, the pressure resistance and temperature resistance are poor, which are generally only applicable to the nominal pressure of 1.6mpa and 1500 below.

Ordering Number of Diaphragm For SBFEC Pulse Valve:

Diaphragm For New Version BFEC Pulse Valves
Diaphragm Order Code
Fitted Pulse Valve Model
Valve Port Size
DTY
(Secondary Diaphragm)
All Double Diaphragm Pulse Valves
/
D20A
DMF-Z20
3/4''
DMF-ZM-20
D20B
DMF-ZL-B
3/4''
D25
DMF-Z-25
1''
DMF-ZM-25
DMF-Y-25
DMF-T-20
3/4''
D40
DMF-Z-40S
1-1/2''
DMF-Y-40S
DMF-ZF-40S
DMF-ZM-40S
DMF-T-25S
1''
D50
DMF-Z-50S
2''
DMF-Y-50S
DMF-T-50S
D62
DMF-Z-62S
2-1/2''
DMF-Y-62S
DMF-T-62S
D76
DMF-Z-76S
3''
DMF-Y-76S
D102
DMF-Z-102S
4''
DMF-Y-102S
D102A
DMF-Y-102SA
4''
D300
DMF-N-300
12''
Diaphragm For Old Version BFEC Pulse Valves
LD50
DMF-Z-50S (Old)
2''
DMF-Y-50S (Old)
DMF-T-50S (Old)
LD62
DMF-Z-62S (Old)
2-1/2''
DMF-Y-62S (Old)
DMF-T-62S (Old)
LD76
DMF-Z-76S (Old)
3''
DMF-Y-76S (Old)

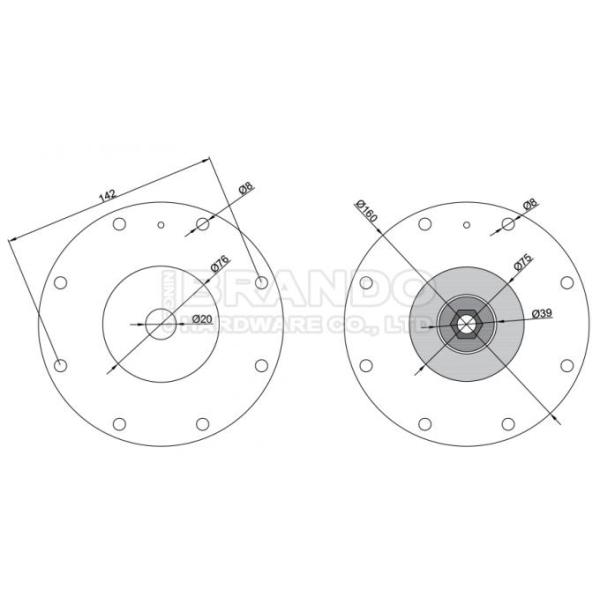

Main Dimension of D50 Diaphragm For BFEC Pulse Valve:

Diaphragm Repair Kit For 2'' SBFEC Pulse Valve DMF-Z-50S DMF-Y-50S DMF-T-50S

Video of D50 Membrane For SBFEC Pulse Jet Valve:

Pictures of Pulse Valve Diaphragm Production:

Diaphragm Repair Kit For 2'' SBFEC Pulse Valve DMF-Z-50S DMF-Y-50S DMF-T-50S

More Related Products For you to choose:

Diaphragm Repair Kit For 2'' SBFEC Pulse Valve DMF-Z-50S DMF-Y-50S DMF-T-50S Diaphragm Repair Kit For 2'' SBFEC Pulse Valve DMF-Z-50S DMF-Y-50S DMF-T-50S Diaphragm Repair Kit For 2'' SBFEC Pulse Valve DMF-Z-50S DMF-Y-50S DMF-T-50S Diaphragm Repair Kit For 2'' SBFEC Pulse Valve DMF-Z-50S DMF-Y-50S DMF-T-50S
Right Angle Type Quick Mount Type Straight Through Type Submerged Type
Diaphragm Repair Kit For 2'' SBFEC Pulse Valve DMF-Z-50S DMF-Y-50S DMF-T-50S Diaphragm Repair Kit For 2'' SBFEC Pulse Valve DMF-Z-50S DMF-Y-50S DMF-T-50S Diaphragm Repair Kit For 2'' SBFEC Pulse Valve DMF-Z-50S DMF-Y-50S DMF-T-50S Diaphragm Repair Kit For 2'' SBFEC Pulse Valve DMF-Z-50S DMF-Y-50S DMF-T-50S
Diaphragm Solenoid Coil Solenoid Armature Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
