Compact Brass Water Air Electric Solenoid Valve 1/4 3/8 1/2 Inch 24V 220V
Compact Brass Water Air Electric Solenoid Valve 1/4 3/8 1/2 Inch 24V 220V
Specifications
Brand Name :
Brando
Model Number :
5AA-B
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
4-8 days
Packaging Details :
Inner boxes, Carton, Pallet
Port Size :
1/4'', 3/8'', 1/2''
Orifice Size :
6mm
Operation Mode :
2 Way, Normally Closed
Operation :
Direct Acting
Body Material :
Brass
Working Medium :
Air, Water, etc
Seal Material :
NBR, FKM, EPDM, PTFE
Pressure Range :
0 to 1.0 MPa
Voltages :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Description

Compact Brass Water Air Electric Solenoid Valve 1/4 3/8 1/2 Inch 24V 220V​


Product Features of Brass Solenoid Valve:

1. Working Medium: Air, Water, etc.
2. Working Pressure Range: 0 to 1.0 MPa (See the parameter table below for details)
3. Medium Temperature Range: NBR (-10 to +80℃), EPDM (-30 to +120℃), FKM (-30 to +150℃), PTFE (-60 to +200℃)
4. Port Size: 1/4'', 3/8'', 1/2''
5. Orifice Size: 6mm
6. Body Material: Brass, Stainless Steel
7. Seal Material: NBR, EPDM, FKM, PTFE
8. Function: 2 Way Normally Closed, 2 Way Normally Open
9. Operation: Direct Acting
10. Voltage Option: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data of Brass Solenoid Valve:

2 Way Normally Closed

Model
Port Size
Orifice Size
Cv
Min Pressure
Max Pressure
Seal Material
Body Material
AC
DC
5AA
1/4''
6mm
0.8
0MPa
1.0MPa
1.0MPa
NBR
EPDM
FKM
PTFE
Brass
Stainless Steel
3/8''
1/2''

2 Way Normally Open

Model
Port Size
Orifice Size
Cv
Min Pressure
Max Pressure
Seal Material
Body Material
AC
DC
5BA
1/4''
6mm
0.8
0MPa
1.0MPa
1.0MPa
NBR
EPDM
FKM
PTFE
Brass
Stainless Steel
3/8''
1/2''


Main Dimension of Brass Solenoid Valve:

Compact Brass Water Air Electric Solenoid Valve 1/4 3/8 1/2 Inch 24V 220V

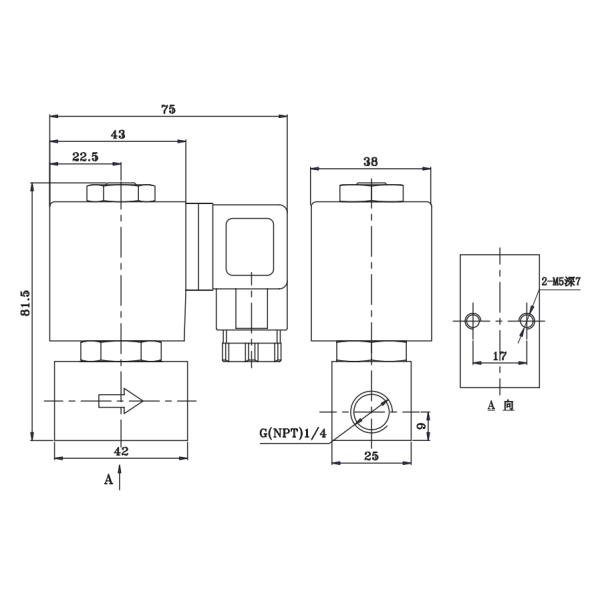

2 Way Normally Closed, 1/4'' Port Size
Compact Brass Water Air Electric Solenoid Valve 1/4 3/8 1/2 Inch 24V 220V

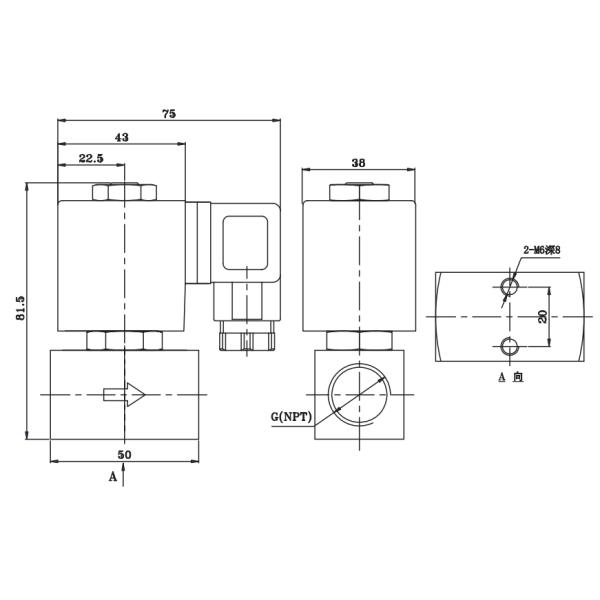

2 Way Normally Closed, 3/8'' & 1/2'' Port Size

Brando Factory Production Video of Solenoid Valves:

BRANDO Factory Production Picture of Solenoid Valves:

Compact Brass Water Air Electric Solenoid Valve 1/4 3/8 1/2 Inch 24V 220V

Packaging and Shiping of Brando Solenoid Valves:

Compact Brass Water Air Electric Solenoid Valve 1/4 3/8 1/2 Inch 24V 220V Compact Brass Water Air Electric Solenoid Valve 1/4 3/8 1/2 Inch 24V 220V Compact Brass Water Air Electric Solenoid Valve 1/4 3/8 1/2 Inch 24V 220V
Internal Box Carton Pallet
