2 Way Miniature Plastic Solenoid Air Valve 12V Normally Closed
2 Way Miniature Plastic Solenoid Air Valve 12V Normally Closed
Specifications
Brand Name :
Brando
Model Number :
SV117
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
4-8 days
Packaging Details :
Inner boxes, Carton, Pallet
Product Name :
Miniature Solenoid Valve
Rated Voltage :
3.8V, 7.2V
Working Current :
≤260, ≤500
Power Consumption :
≤0.988, ≤3.6
Working Voltage Range :
3-4.5V, 6.5-7.9V
DC Resistance :
18±2
Leakage :
≤15mmHg / Min
Exhaust Speed :
1500CC /＜10S
Description

Miniature Air Electric Plastic Solenoid Valve 12V For Massage Chair

Miniature Solenoid Valves Application Examples:
1. Medical Equipments: Blood Pressure Monitor, Air Pressure Massage, Patient Monitor, etc.
2. Massage Health Care Equipments: Foot Massage, Massage Chair, Head and Eye Massage, Massage Bed, etc.
3. Household Appliances: Anti-snore Apparatus, Memory Pillow, Coffee Machine, Water Purifier, etc.
4. Other Applications: Kitchen and Bathroom Parts, Body Beauty Cares, Gas Detection and Analysis, Agricultural Application, and Scent Diffuse Machine, etc.

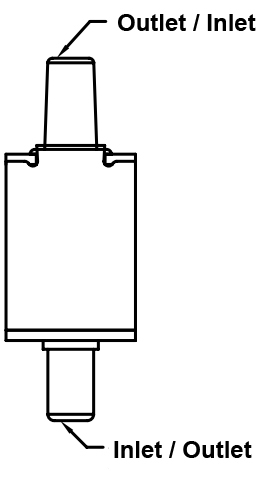

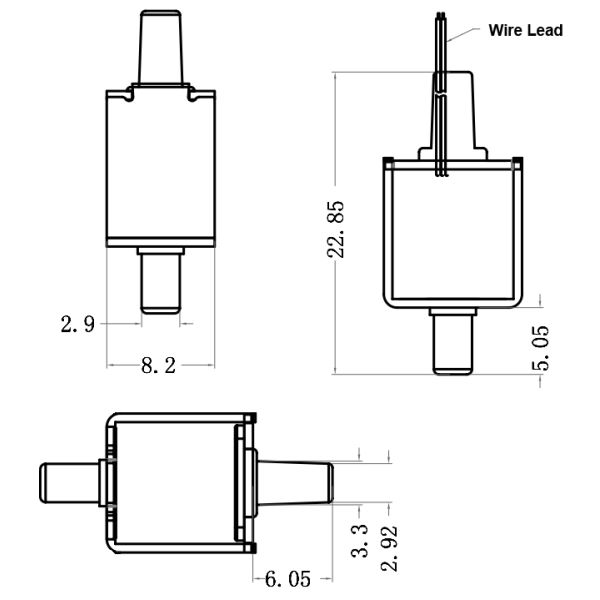

Dimension and Data of Miniature Plastic Solenoid Valve:

2 Way Miniature Plastic Solenoid Air Valve 12V Normally Closed 2 Way Miniature Plastic Solenoid Air Valve 12V Normally Closed 2 Way Miniature Plastic Solenoid Air Valve 12V Normally Closed

Model

Rated

Voltage

Working

Current

Power

Consumption

Working

Voltage Range

DC

Resistance

 Leakage Exhaust Speed Service Life
SV117-3.8 3.8 ≤260 ≤0.988 3-4.5V 18±2 ≤15mmHg / Min 500CC /＜10S ≥180000
SV117-7.2 7.2 ≤500 ≤3.6 6.5-7.9V 18±2 ≤15mmHg / Min 500CC /＜10S ≥180000

Brando Solenoid Valve Factory Production Video:

More Miniature Plastic Solenoid Valves for you to choose:

2 Way Miniature Solenoid Valve
2 Way Miniature Plastic Solenoid Air Valve 12V Normally Closed 2 Way Miniature Plastic Solenoid Air Valve 12V Normally Closed 2 Way Miniature Plastic Solenoid Air Valve 12V Normally Closed 2 Way Miniature Plastic Solenoid Air Valve 12V Normally Closed
2 Way Miniature Plastic Solenoid Air Valve 12V Normally Closed 2 Way Miniature Plastic Solenoid Air Valve 12V Normally Closed 2 Way Miniature Plastic Solenoid Air Valve 12V Normally Closed 2 Way Miniature Plastic Solenoid Air Valve 12V Normally Closed

3 Way Miniature Solenoid Valve
2 Way Miniature Plastic Solenoid Air Valve 12V Normally Closed 2 Way Miniature Plastic Solenoid Air Valve 12V Normally Closed 2 Way Miniature Plastic Solenoid Air Valve 12V Normally Closed
2 Way Miniature Plastic Solenoid Air Valve 12V Normally Closed 2 Way Miniature Plastic Solenoid Air Valve 12V Normally Closed 2 Way Miniature Plastic Solenoid Air Valve 12V Normally Closed

Combination
2 Way Miniature Plastic Solenoid Air Valve 12V Normally Closed 2 Way Miniature Plastic Solenoid Air Valve 12V Normally Closed 2 Way Miniature Plastic Solenoid Air Valve 12V Normally Closed


Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
