PTFE Body Anti Corrosion Solenoid Valve 1/4'' 3/8'' 24VDC 220VAC
PTFE Body Anti Corrosion Solenoid Valve 1/4'' 3/8'' 24VDC 220VAC
Specifications
Brand Name :
Brando
Model Number :
PTFE
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
4-8 days
Packaging Details :
Inner boxes, Carton, Pallet
Product Name :
Anti Corrosion Solenoid Valve
Function :
2 Way, Normally Closed
Port Size :
1/4'', 3/8''
Orifice Size :
1.2mm to 10mm
Voltages :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Fluids :
Acid & Alkali (Gas, Liquid)
Valve Body Material :
PTFE ()
Seal Material :
FKM, EPDM
Working Pressure :
0.01 to 0.6 MPa
Description

PTFE Body Anti Corrosion Solenoid Valve 1/4'' 3/8'' 24VDC 220VAC

2-way normally closed anti corrosion solenoid valve is to control On/Off of air, liquid. Valve stays close when the coil is de-energized, and it opens when energized. Our unique piston design allows the fluid completely separate with the valve metal components. No corrosive fluid contacts the metal parts. Our anti corrosion solenoid valve can be mounted in any position, it is ideal for acid, alkali and salt water application.

Technical Data of Body Solenoid Valve:

Model
PTFE-1.2~6
PTFE-8
PTFE-10
Port Size
1/4''
3/8''
3/8''
Orifice Size
1.2-6mm
8mm
10mm
Medium
Weak Acid & Alkali (Gas, Liquid)
Working Pressure
0 to 0.02 Bar
Working Temperature
Max. +180℃
Seal
FKM, EPDM
Voltage
12VDC, 24VDC, 24VAC, 110VAC, 220VAC

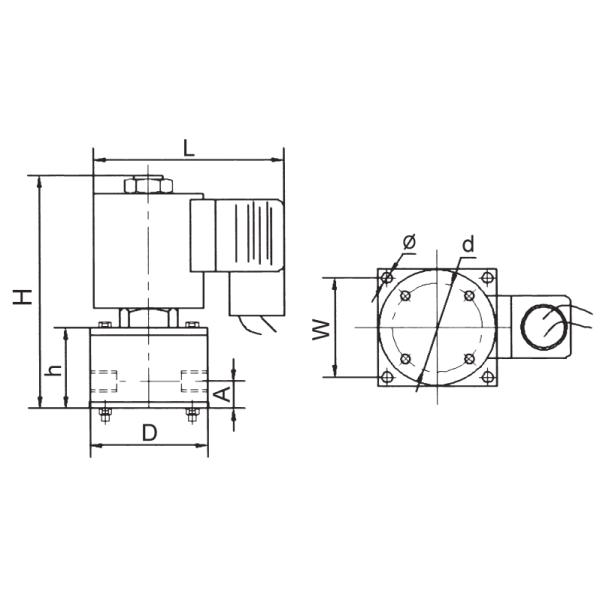

Main Dimension of PTFE Body Solenoid Valve:

PTFE Body Anti Corrosion Solenoid Valve 1/4'' 3/8'' 24VDC 220VAC

Model
Dimension
H
h
A
D
d
L
φ
M
PTFE-1.2~6
88
34
12.5
44.5
34
72
4.5
M4
PTFE-8
88
31.5
10
50
34
72
without manifold
M4
PTFE-10
88
31.5
10
50
34
72
without manifold
M4

Brando Solenoid Valve Factory Production Video:

More PTFE Body Solenoid Valves for you to choose:

PTFE Body Anti Corrosion Solenoid Valve 1/4'' 3/8'' 24VDC 220VAC PTFE Body Anti Corrosion Solenoid Valve 1/4'' 3/8'' 24VDC 220VAC PTFE Body Anti Corrosion Solenoid Valve 1/4'' 3/8'' 24VDC 220VAC

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
