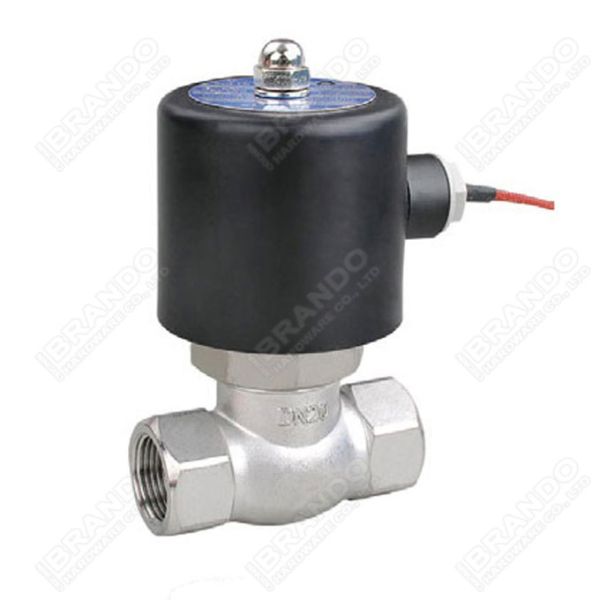

1/2'' Steam Hot Water Stainless Steel Solenoid Valve 2 Way Normally Closed 24V 220V
1/2'' Steam Hot Water Stainless Steel Solenoid Valve 2 Way Normally Closed 24V 220V
1/2'' Steam Hot Water Stainless Steel Solenoid Valve 2 Way Normally Closed 24V 220V
1/2'' Steam Hot Water Stainless Steel Solenoid Valve 2 Way Normally Closed 24V 220V
1/2'' Steam Hot Water Stainless Steel Solenoid Valve 2 Way Normally Closed 24V 220V
1/2'' Steam Hot Water Stainless Steel Solenoid Valve 2 Way Normally Closed 24V 220V
Specifications
Brand Name :
BRANDO
Model Number :
26320BA06
Certification :
CE, ISO
Place of Origin :
Ningbo, China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
10000pcs per month
Delivery Time :
4 to 7 working days
Packaging Details :
Box, Carton, Pallet
Product Name :
Solenoid Valve
Port Size :
1/2''
Orifice Size :
5mm
Function :
2 Way Normally Closed
Operation :
Piston Pilot Operated
Body Material :
Stainless Steel 304
Seal Material :
PTFE, FKM
Working Temperature :
PTFE: -60 to +200℃, FKM: -30 to +150℃
Working Pressure :
0.1 to 10 bar
Working Medium :
Steam, Hot Water, Oil, etc
Voltage :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Description

1/2'' Steam Hot Water Stainless Steel Solenoid Valve 2 Way Normally Closed 24V 220V


Product Features:

1. Port Size: 1/2'', 3/4'', 1''
2. Orifice Size: 5mm, 15mm, 20mm, 25mm
3. Function: 2 Way Normally Closed
4. Operation: Piston Pilot Operated
5. Body Material: Stainless Steel 304
6. Seal Material: PTFE, FKM
7. Working Temperature: PTFE: -60 to +200℃, FKM: -30 to +150℃
8. Working Medium: Hot Water, Steam, Oil, etc
9. Working Pressure: 0.01 to 1 MPa
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data:

Model No
Port Size
Orifice Size
Cv
Min Pressure
Max Pressure
Seal Material
Body Material
AC
DC
26320BA06
1/2''
5mm
0.5
0.1bar
10bar
10bar
PTFE
FKM
Stainless Steel
26320BA15
1/2''
15mm
2.8
26320BA20
3/4''
20mm
2.8
26320BA25
1''
25mm
2.8

Main Dimension:

1/2'' Steam Hot Water Stainless Steel Solenoid Valve 2 Way Normally Closed 24V 220V 1/2'' Steam Hot Water Stainless Steel Solenoid Valve 2 Way Normally Closed 24V 220V

Model No
23620BA06
23620BA15
23620BA20
23620BA25
Port
1/2''
1/2''
3/4''
1''
A
50
80
80
80
B
30
40
40
40
C
75
92
92
92
D
16
19
19
19

Our Production:
1/2'' Steam Hot Water Stainless Steel Solenoid Valve 2 Way Normally Closed 24V 220V

More Steam Solenoid Valves:

Brass Solenoid Valve
1/2'' Steam Hot Water Stainless Steel Solenoid Valve 2 Way Normally Closed 24V 220V 1/2'' Steam Hot Water Stainless Steel Solenoid Valve 2 Way Normally Closed 24V 220V 1/2'' Steam Hot Water Stainless Steel Solenoid Valve 2 Way Normally Closed 24V 220V 1/2'' Steam Hot Water Stainless Steel Solenoid Valve 2 Way Normally Closed 24V 220V

Stainless Steel Solenoid Valve
1/2'' Steam Hot Water Stainless Steel Solenoid Valve 2 Way Normally Closed 24V 220V 1/2'' Steam Hot Water Stainless Steel Solenoid Valve 2 Way Normally Closed 24V 220V 1/2'' Steam Hot Water Stainless Steel Solenoid Valve 2 Way Normally Closed 24V 220V 1/2'' Steam Hot Water Stainless Steel Solenoid Valve 2 Way Normally Closed 24V 220V

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of applications.


Question 2: How can you tell if your solenoid is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out coil, you need to troubleshoot the valve solenoids.


Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, orifice size, temperature, pressure, voltage, response time and certification required for your application.


Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
