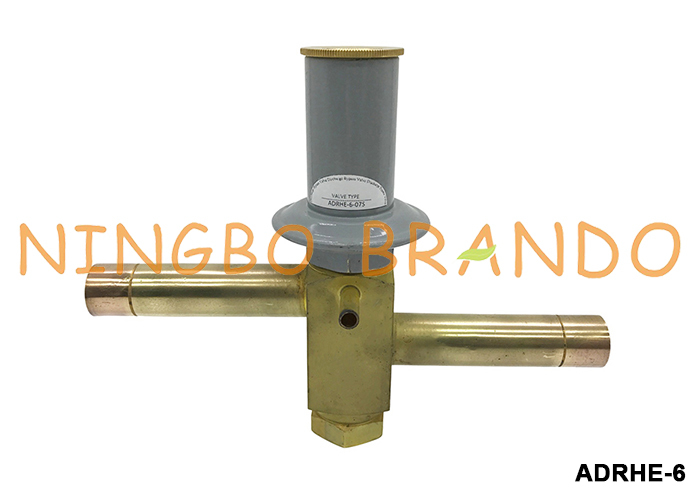

ADRHE-6 Sporlan Type Discharge Hot Gas Bypass Valve ADRHE-6-0/80 ADRHE-6-0/30
ADRHE-6 Sporlan Type Discharge Hot Gas Bypass Valve ADRHE-6-0/80 ADRHE-6-0/30
Specifications
Product Name :
Hot Gas Bypass Valve
External Equalizer Connection :
1/4'' (ODF)
Refrigerant :
R134a, R401A, R22, R402A, R404A, R407C, R507
Connection Size :
5/8'', 7/8'', 1-1/8'' (ODF)
Equalization :
Externally Equalized
Brand Name :
BRANDO
Model Number :
ADRHE-6
Certification :
None
Place of Origin :
Ningbo, China
MOQ :
50pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
50000pcs per month
Delivery Time :
Negotiation
Packaging Details :
Box, Carton, Pallet
Adjustment Range :
0/30, 0/80 (psig)
Description

ADRHE-6 Sporlan Type Hot Gas Bypass Valve

The primary function of ADR discharge hot gas bypass valves, referred to as DBV valves, is to limit the minimum evaporating pressure during periods of low load either to prevent coil icing or avoid operating the compressor at a lower suction pressure than it was designed to operate. Each valve is factory tested to ensure positive leak-free performance.

Technical Data:

Model No
Valve Type
Equalized Size
Inlet & Outlet Size
Adjustment Range
(psig)
Standard Setting
(psig)
ADRSE-2
Externally
Equalized
1/4'' ODF
3/8'' ODF
0 to 30
0 to 80
20
60
1/2'' ODF
5/8'' ODF
ADRPE-3
1/2'' ODF
5/8'' ODF
ADRHE-6
5/8'' ODF
7/8'' ODF
1-1/8'' ODF

Cooling Capacity (KW):

R22

Min Evaporator Temperature
Adjustment Range
ADRIE-1-1/4
ADRSE-2
ADRPE-3
ADRHE-6
0/55psig
0/75psig
0/100psig
0/30psig
0/80psig
0/30psig
0/80psig
0/30psig
0/80psig
0/3.79bar
0/5.17bar
0/6.9bar
0/2.07bar
0/5.52bar
0/2.07bar
0/5.52bar
0/2.07bar
0/5.52bar
5℃
-
2.04
1.86
-
12.3
-
21.1
-
32.2
-5℃
1.55
2.25
1.9
-
12.5
-
22
-
34.8
-15℃
2.22
2.11
1.72
13.7
12.9
26
23.2
48.9
38.3
-25℃
2.08
1.76
1.55
13.2
12.8
26.2
23.4
49.6
38.7

R134a

Min Evaporator Temperature
Adjustment Range
ADRIE-1-1/4
ADRSE-2
ADRPE-3
ADRHE-6
0/55psig
0/75psig
0/100psig
0/30psig
0/80psig
0/30psig
0/80psig
0/30psig
0/80psig
0/3.79bar
0/5.17bar
0/6.9bar
0/2.07bar
0/5.52bar
0/2.07bar
0/5.52bar
0/2.07bar
0/5.52bar
5℃
1.41
1.51
1.19
-
9.4
-
17.4
-
32.9
-5℃
1.44
1.37
1.12
9.15
8.59
17.4
15.5
32.9
25.5
-15℃
1.34
1.09
0.98
8.66
-
17.2
-
33.1
-

R404A

Min Evaporator Temperature
Adjustment Range
ADRIE-1-1/4
ADRSE-2
ADRPE-3
ADRHE-6
0/55psig
0/75psig
0/100psig
0/30psig
0/80psig
0/30psig
0/80psig
0/30psig
0/80psig
0/3.79bar
0/5.17bar
0/6.9bar
0/2.07bar
0/5.52bar
0/2.07bar
0/5.52bar
0/2.07bar
0/5.52bar
5℃
-
-
1.94
-
-
-
-
-
-
-5℃
-
2.36
2.11
-
13.7
-
23.6
-
36.6
-15℃
2.35
2.5
1.97
-
14.1
-
25.2
-
41.2
-25℃
2.39
2.15
1.79
14.7
14.1
28.4
25.6
53.8
42.6

R407C

Min Evaporator Temperature
Adjustment Range
ADRIE-1-1/4
ADRSE-2
ADRPE-3
ADRHE-6
0/55psig
0/75psig
0/100psig
0/30psig
0/80psig
0/30psig
0/80psig
0/30psig
0/80psig
0/3.79bar
0/5.17bar
0/6.9bar
0/2.07bar
0/5.52bar
0/2.07bar
0/5.52bar
0/2.07bar
0/5.52bar
5℃
-
2.74
2.29
-
14.9
-
26.4
-
42.6
-5℃
2.15
2.74
2.22
-
14.9
-
26.4
-
42.6
-15℃
2.6
2.39
1.97
15.9
15.2
30.4
27.5
57.3
45.7
-25℃
2.39
1.97
1.76
15.2
14.9
30.4
27.1
58
45.4

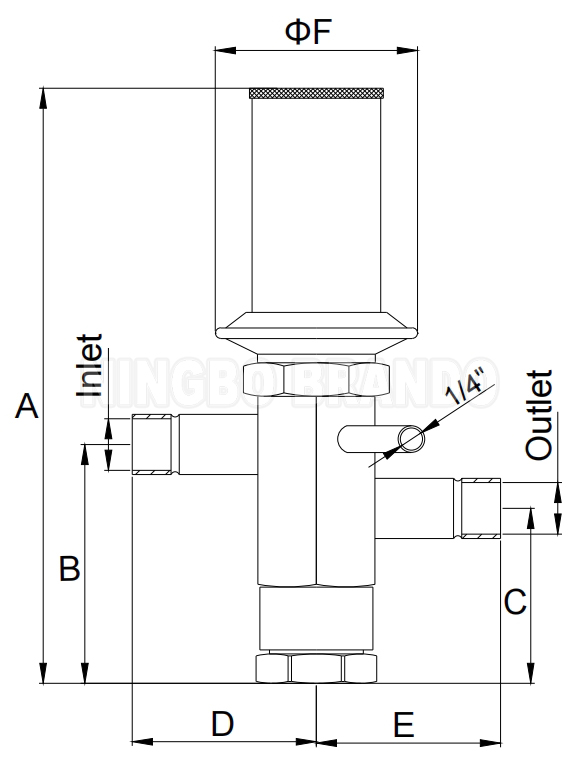

Main Dimension:

ADRHE-6 Sporlan Type Discharge Hot Gas Bypass Valve ADRHE-6-0/80 ADRHE-6-0/30

Model No
Inlet & Outlet
A
B
C
D
E
F
ADRSE-2
3/8'' ODF
164
64
50
37
37
61
1/2'' ODF
35
35
5/8'' ODF
38
38
ADRPE-3
1/2'' ODF
178
72
53
43
41
61
5/8'' ODF
55
55
ADRHE-6
5/8'' ODF
180
73
48
117
117
70
7/8'' ODF
1-1/8'' ODF

Our Production:

ADRHE-6 Sporlan Type Discharge Hot Gas Bypass Valve ADRHE-6-0/80 ADRHE-6-0/30

Related Products:

ADRHE-6 Sporlan Type Discharge Hot Gas Bypass Valve ADRHE-6-0/80 ADRHE-6-0/30 ADRHE-6 Sporlan Type Discharge Hot Gas Bypass Valve ADRHE-6-0/80 ADRHE-6-0/30 ADRHE-6 Sporlan Type Discharge Hot Gas Bypass Valve ADRHE-6-0/80 ADRHE-6-0/30 ADRHE-6 Sporlan Type Discharge Hot Gas Bypass Valve ADRHE-6-0/80 ADRHE-6-0/30
Solenoid Valve 4 Way Reversing Valve Expansion Valve Pressure Regulator
ADRHE-6 Sporlan Type Discharge Hot Gas Bypass Valve ADRHE-6-0/80 ADRHE-6-0/30 ADRHE-6 Sporlan Type Discharge Hot Gas Bypass Valve ADRHE-6-0/80 ADRHE-6-0/30 ADRHE-6 Sporlan Type Discharge Hot Gas Bypass Valve ADRHE-6-0/80 ADRHE-6-0/30 ADRHE-6 Sporlan Type Discharge Hot Gas Bypass Valve ADRHE-6-0/80 ADRHE-6-0/30

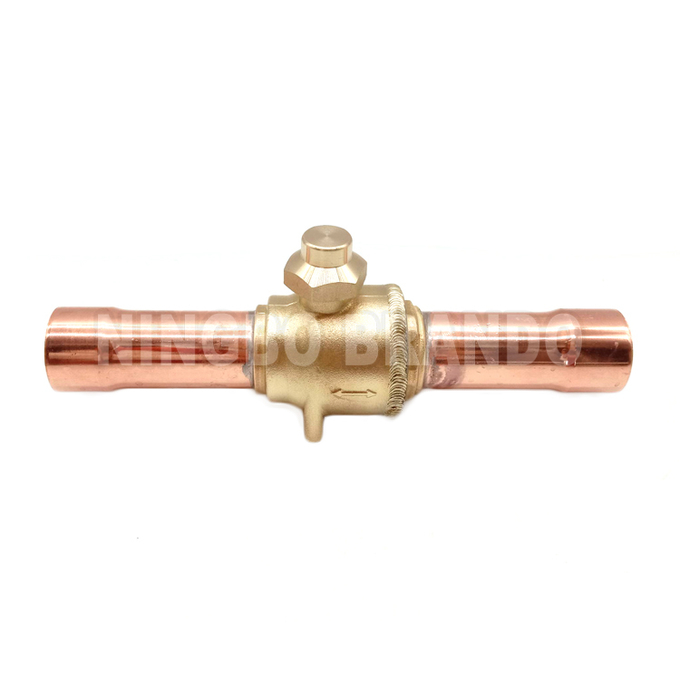

Ball Valve Check Valve Sight Glass Access Valve
