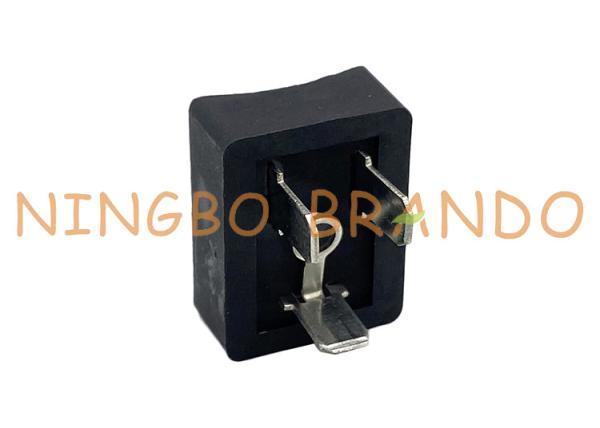

GSN 2P+E DIN 43650 B Male Solenoid Valve Connector and Bases 622201
GSN 2P+E DIN 43650 B Male Solenoid Valve Connector and Bases 622201
GSN 2P+E DIN 43650 B Male Solenoid Valve Connector and Bases 622201
GSN 2P+E DIN 43650 B Male Solenoid Valve Connector and Bases 622201
GSN 2P+E DIN 43650 B Male Solenoid Valve Connector and Bases 622201
GSN 2P+E DIN 43650 B Male Solenoid Valve Connector and Bases 622201
GSN 2P+E DIN 43650 B Male Solenoid Valve Connector and Bases 622201
GSN 2P+E DIN 43650 B Male Solenoid Valve Connector and Bases 622201
GSN 2P+E DIN 43650 B Male Solenoid Valve Connector and Bases 622201
GSN 2P+E DIN 43650 B Male Solenoid Valve Connector and Bases 622201
Specifications
Brand Name :
Brando
Model Number :
DIN43650B+Bases
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
7 working days
Packaging Details :
inner boxes,cartons,pallets
Product Family :
Valve Connectors
Connector Type :
Receptacle
Type of Contact / Gender :
Male
Connector Design :
Straight
Number of Pins :
2+PE
Coding :
B
Contact Resistance :
≤ 10 mOhm
Type of Connection :
Solder / PE Screw
Attachment Type :
Central Screw
Description

GSN 2P+E DIN 43650 B Male Solenoid Valve Connector and Bases 622201

DIN EN 175301-803 type B Base: 20.8 x 28.6

A comprehensive range of cable sockets and appliance connector bases typically for use with solenoid valves on pneumatic and hydraulic equipment. Housing material is glass-filled nylon making them impact resistant.,All Hirschmann appliance connectors feature terminals that can be screwed onto bare or ferruled conductors, or will accept crimp ring/fork terminals under the head of the screw.

2P+E
Ambient temperature: -40°C to +90°C

The bases range is used extensively together with connectors to provide electrical connections in a wide range of applications. The most common application for mPm bases is in conjunction with hydraulic, pneumatic or electromagnetic devices. Other applications include, for example:

pressure transducers,

proximity switches,

level sensors,

limit switches,

thermostats and low energy motors.

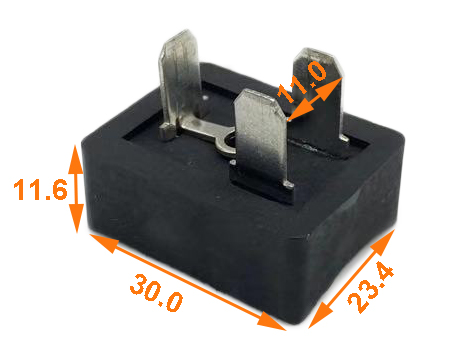

Diemension:

GSN 2P+E DIN 43650 B Male Solenoid Valve Connector and Bases 622201

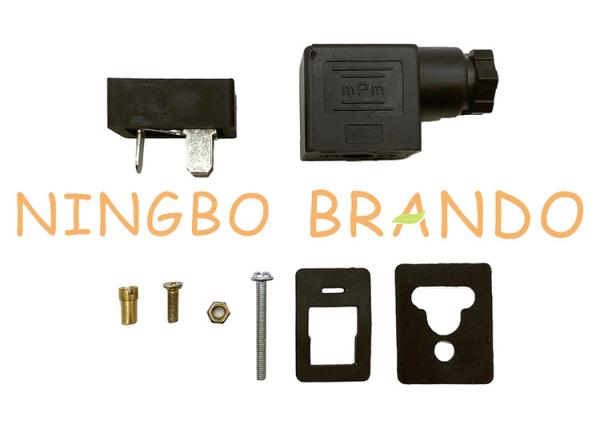

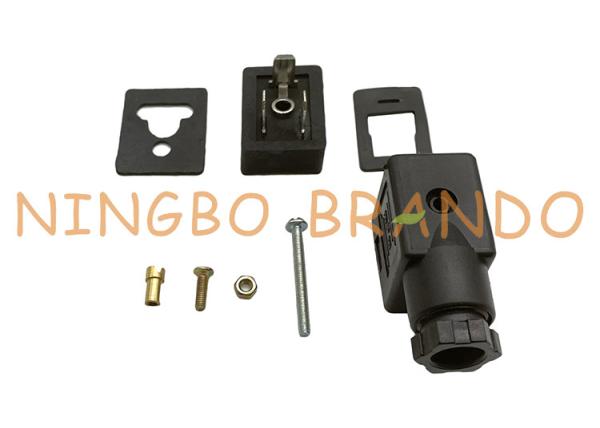

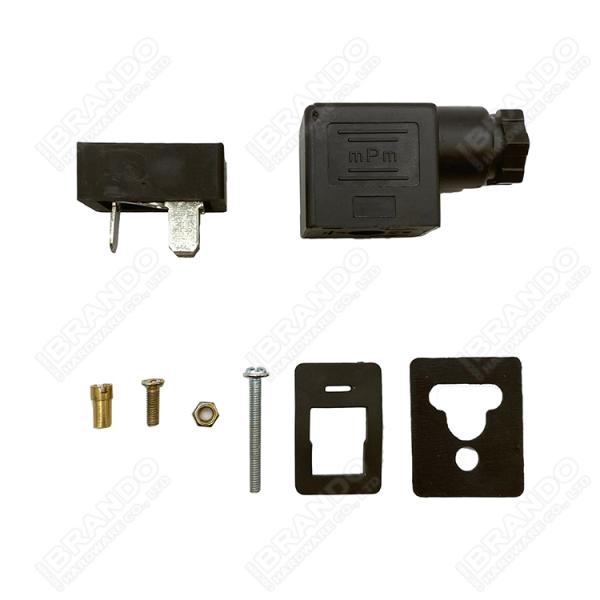

DIN43650B Plug Kit:

GSN 2P+E DIN 43650 B Male Solenoid Valve Connector and Bases 622201

Technical Data:

Contact Spacing 11mm
Rated Voltage 250VAC/300VDC
Operating Current 10A
Max. current 16A
Max. wire gauge 1,0 mm2
Termination Solder
Housingmaterial PA+30%GF
Temperature Range –40 °C to +125 °C
With/without PE-screw Available

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
