MN1H-2-1/4-MS 161725 Festo Type Brass Solenoid Valve 1/4'' 24VDC
MN1H-2-1/4-MS 161725 Festo Type Brass Solenoid Valve 1/4'' 24VDC
Specifications
Brand Name :
Brando
Model Number :
MN1H-2-1/4-MS
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability :
300000 sets per month
Delivery Time :
4-8 days
Packaging Details :
Inner Box, Carton, Pallet
Port Size :
1/4''
Orifice Size :
13mm
Function :
2 Way, Normally Closed
Operation :
Diaphragm Pilot Operated
Body Material :
Brass
Seal Material :
NBR
Voltages :
24VDC, 110VAC, 220VAC
Working Pressure Range :
0.05 to 1.0 MPa
Description

MN1H-2-1/4-MS 161725 Festo Type Brass Solenoid Valve 1/4'' 24VDC

MN1H solenoid valve features:
1. Piloted diaphragm valve
2. Brass body design
3. Can only be used for gaseous media
4. Adjustable closing cushioning, in-line mounting or through-hole
5. Operating voltage 24VDC, 110VAC, 120VAC, 220VAC, 230VAC (50/60 Hz)

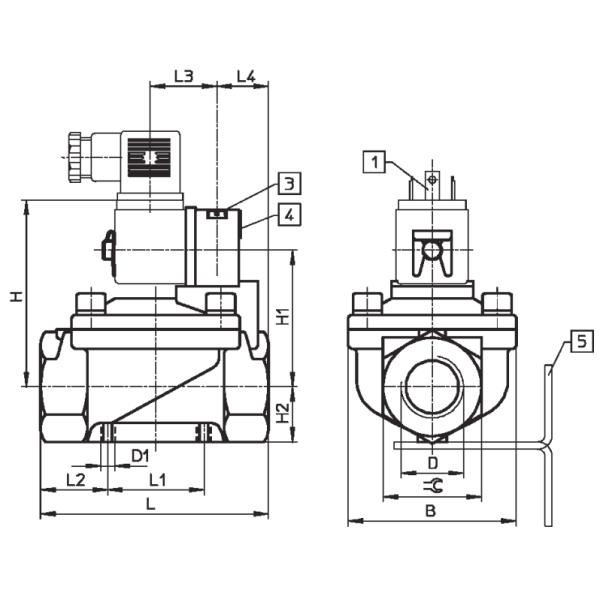

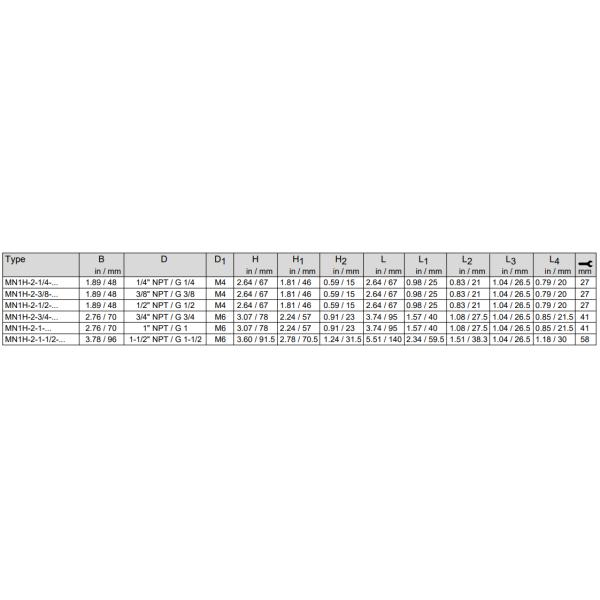

Main Dimension of MN1H series Solenoid Valve:

MN1H-2-1/4-MS 161725 Festo Type Brass Solenoid Valve 1/4'' 24VDC

MN1H-2-1/4-MS 161725 Festo Type Brass Solenoid Valve 1/4'' 24VDC


Technical Data of MN1H series Solenoid Valve:

Port Size
1/4''
3/8''
1/2''
3/4''
1''
1 1/2''
Orifice Size (mm)
13
13
13
20
25
40
Cv value (L/min)
2000
2900
3100
10000
11500
30500
Function
2 Way 2 Position, Normally Closed
Action
Diaphragm Pilot Operated
Body Material
Brass
Seal Material
NBR
Working Pressure
0.05 to 1.0 MPa
Medium Temperature
-10 to +80℃
Voltages
12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Brando Solenoid Valve Factory Production Video:

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
