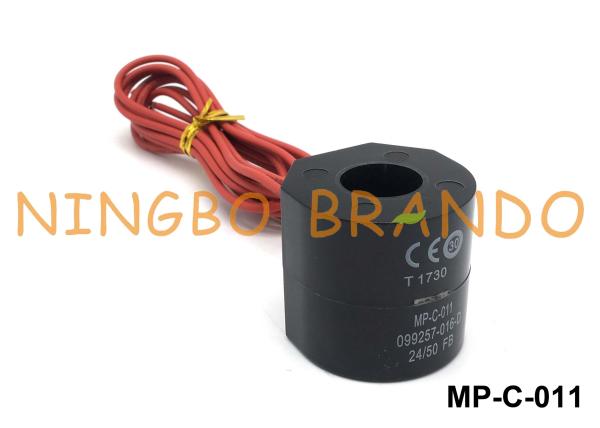

Henny Penny Solenoid Valve Coil MP-C-011 099257-016-G 24V 50Hz
Henny Penny Solenoid Valve Coil MP-C-011 099257-016-G 24V 50Hz
Specifications
Brand Name :
BRANDO
Model Number :
MP-C-011
Certification :
None
Place of Origin :
Ningbo, China
MOQ :
50pcs
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
300000 set per month
Delivery Time :
Negotiation
Packaging Details :
Inner Box, Carton, Pallet
Product Name :
MP-C-011 Solenoid Coil
Voltage :
24VAC, 110VAC, 120VAC, 220VAC, 240VAC (50/60Hz)
Reference No :
099257-009-D, 099257-016-D, 099257-005-D, 099257-008-D, 099257-001-D 099257-004G, 099257-014G, 099257-006G
Connection Type :
Flying Leads
Insulation Class :
F, H
Temperatrue Class :
T, B
Repair Solenoid Valve Model :
29515, 29547, 29698, 18724, 18721, 17120, 17121
Application :
Henny Penny Fryer
Description

Henny Penny Solenoid Valve Coil MP-C-011 099257-016-G 24V 50Hz

Since solenoid coils are necessary for such a wide range of applications, they can come in standard designs or they can be customized coils in order to better-suit the intended application.

Solenoid coils consist of two main parts: the coiled wire and the metallic core. The coiled wire is most commonly formed from insulated or enameled copper or copper alloys, whereas the metallic core is typically formed from solid or powdered iron but can also be formed from steel or stainless steel. It is crucial that the metallic core is made from ferromagnetic materials, substances that are able to concentrate the magnetic lines of flux and increase the inductance of the coil.

Dimension & Data of MP-C-011 Solenoid Coil:

Henny Penny Solenoid Valve Coil MP-C-011 099257-016-G 24V 50Hz

Model
MP-C-011
Connection Type
Flying Leads
Voltage
24VAC, 110VAC, 120VAC, 220VAC, 240VAC (50/60Hz)
Insulation Class
H, F
Temperature Class
T, B

Henny Penny Solenoid Valve Coil MP-C-011 099257-016-G 24V 50Hz

Model
BAPC216049003
Function
2/2 Way, Normally Closed
Tube Material
Stainless Steel
Shading Ring Material
Copper
Seat Type
Thread
Fitted Coil
MP-C-011
Application Example
Henny Penny Fryer

Multi-angle display of MP-C-011 solenoid coil:

Henny Penny Solenoid Valve Coil MP-C-011 099257-016-G 24V 50Hz

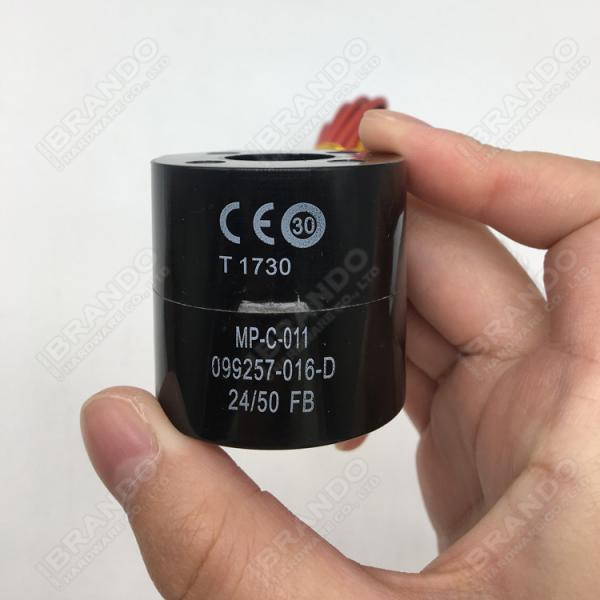

MP-C-011 Coil surface parameter printing display:

Henny Penny Solenoid Valve Coil MP-C-011 099257-016-G 24V 50Hz

Product Video of MP-C-011 Solenoid Coil:

Brando Factory Production Video of Solenoid Coils:

Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
