C113443 C113444 K200262 K238866 ASCO Type Diaphragm Valve Repair Kit For 1 SCG353A044 3/4 SCG353A043
C113443 C113444 K200262 K238866 ASCO Type Diaphragm Valve Repair Kit For 1 SCG353A044 3/4 SCG353A043
C113443 C113444 K200262 K238866 ASCO Type Diaphragm Valve Repair Kit For 1 SCG353A044 3/4 SCG353A043
C113443 C113444 K200262 K238866 ASCO Type Diaphragm Valve Repair Kit For 1 SCG353A044 3/4 SCG353A043
Specifications
Brand Name :
Brando
Model Number :
C113443
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability :
200000 pcs per month
Delivery Time :
4-7 Days
Packaging Details :
Plastic Bags, Cartons, Pallet
Product Name :
C113443 ASCO Type Diaphragm Repair Kit
Mounting Hole Size :
6.5mm
Diaphragm Material :
TPE
Diaphragm OD :
76.5mm
Center Distance :
78mm
Bleed Hole :
1
Spring :
1
Suitable Valves :
SCG353A043, SCG353A044, G353A041, G353A042, SCG353-052, SCG353-053
Packaging :
Individual Plastic Bag Sealed
Net Weight (1 Set) :
27g
Description

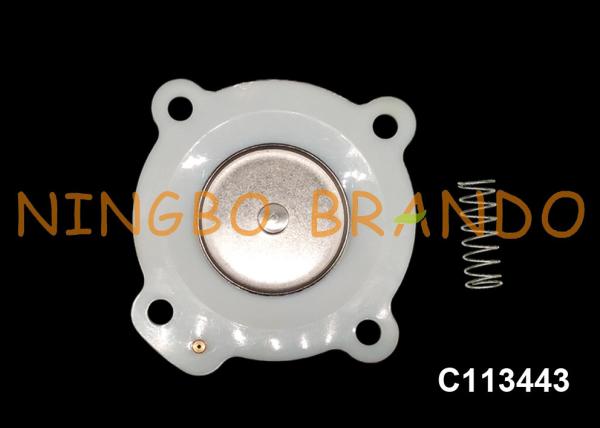

C113443 C113444 K200262 K238866 ASCO Type Diaphragm Valve Repair Kit For 1'' SCG353A044 3/4'' SCG353A043

Brando has more than 10 years experiences in manufacturing and exporting dust collector diaphragm valve repair kits for almost brands, like Goyen, ASCO, Joil, Norgern, Turbo, Mecair, and so on. The shown is C113443 / C113444 / K200262 / K238866 diaphragm repair kit for ASCO 3/4'' SCG353A043 / G353A041 / SCG353-052, 1'' SCG353A044 / G353A042 / SCG353-053 diaphragm valves.

1. Reference Number: C113443 / C113444 / K200262 / K238866
2. Diaphragm Material: TPE
3. Diaphragm Outer Distance: 76.5mm
4. Center Distance: 78mm
5. Mounting Hole Size: 6.5mm
6. Applicable Valves: SCG353A043, SCG353A044, G353A041, G353A042, SCG353-052, SCG353-053
7. Spring: 1
8. Bleed Hole: 1
9. Packaging: Individual Plastic Bag Sealed


YouTube video of C113443 C113444 ASCO Type Diaphragm Repair Kit:

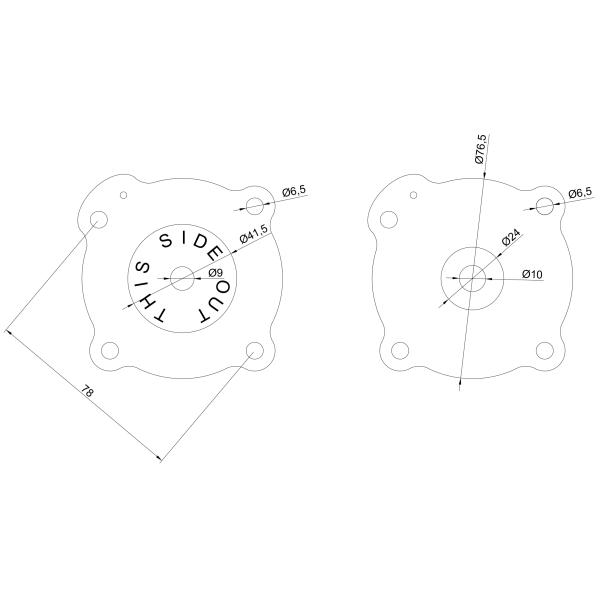

Main dimension of K200262 K238866 ASCO Type Diaphragm Repair Kit:
C113443 C113444 K200262 K238866 ASCO Type Diaphragm Valve Repair Kit For 1

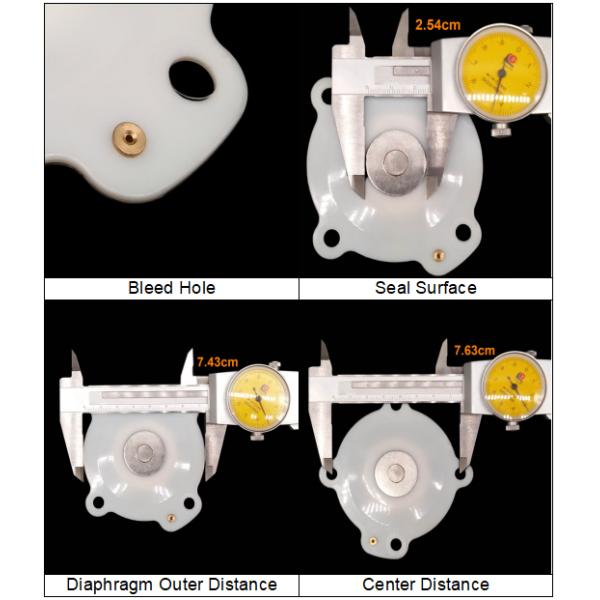

Product details of 3/4'' & 1'' ASCO Type Diaphragm Valve Repair Kit:
C113443 C113444 K200262 K238866 ASCO Type Diaphragm Valve Repair Kit For 1

Available Models of ASCO Solenoid Valve Spare Part Kits:

Ordering Code
Fitted Valve Code
Valve Port Size
Material
C113443
G353A041, G353A042
3/4'', 1''
TPE/NBR
C113444
SCG353A043, SCG353A044,
SCG353-052, SCG353-053
3/4'', 1''
C113825
G353A045
1-1/2''
NBR
C113826
G353A046
1-1/2''
C113827
SCG353A047, SCG353A065
1-1/2''
C113685
SCG353A050, SCG353A051
2'', 2-1/2''
C113686
C113928
SCEX353.060
3''
C123432
SCG353D060, G353.060
C123433
K096875 (K238864)
8353C033
3/4''
K200262 (K238866)
G353A041, G353A042,
SCG353A043, SCG353A044,
SCG353-052, SCG353-053
1''
K276886 (K238870)
G353A045, G353A046,
SCG353A047, SCG353A065
1-1/2''
K276886B
K276887
VITON
Tips: EPDM, VITON All Available.

Tips: The valves mentioned, related solenoid coils and armature assembly are all supplied.
