24VDC 24VAC 230VAC Class H Waterproof Solenoid Valve Coil IP67 IP68

This is a waterproof solenoid valve coil, coil inner hole diameter is 10.2mm, coil height is 31.5mm, coil width is 22mm, coil protection class is IP67, IP68, coil insulation class is H, coil connection type is DIN43650B, 24VDC 24VAC 230VAC voltages, 5VA, 3.5VA, 6W power, other voltages and power can be customized.

Product features of solenoid valve coil:
1. Using high quality wire which has UL approved;
2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.

Technical data of solenoid valve coil:

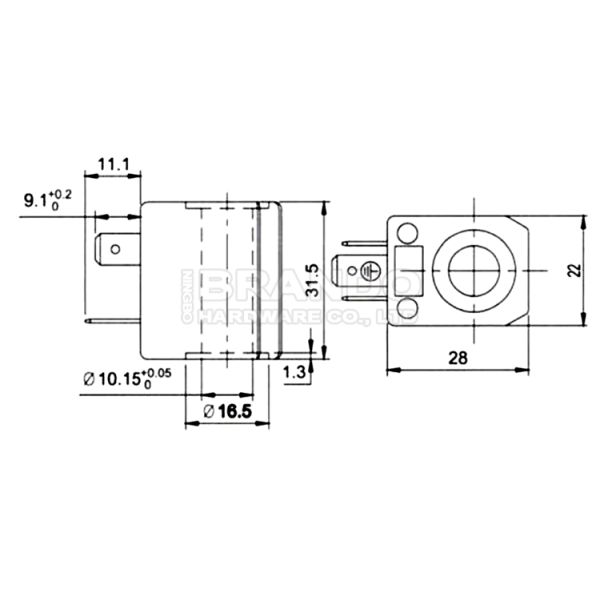

Main dimension of solenoid valve coil:

Brando factory production of solenoid valve coil:

More Solenoid Valve Coil for you to choose:

*Connector Options: DIN 43650 Form A, DIN 43650 Form B, DIN 43650 Form C, Wire Leads, DEUTSCH, AMP, KOSTAL .......

*Application Options: Pneumatic Solenoid Valve Coil, Refrigeration Solenoid Valve Coil, Pulse Solenoid Valve Coil, Hydraulic Solenoid Valve Coil, Solenoid Coil For Excavator / Truck / Auto, Injector Rail Solenoid Coil, Solenoid Coil For Home Appliances, LPG CNG Solenoid Coil.........

*Hole Diameter Options: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
