Electric Stainless Steel Solenoid Valve 1/2'' SPU225A-08 1/2'' SPU225A-12 24V DC 220V AC
Electric Stainless Steel Solenoid Valve 1/2'' SPU225A-08 1/2'' SPU225A-12 24V DC 220V AC
Specifications
Brand Name :
Brando
Model Number :
SPU225A-08
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
4-8 days
Packaging Details :
Inner boxes, Carton, Pallet
Product Name :
SPU225A Solenoid Valve
Working Fluids :
Water, Light Oil, Compressed Air
Port Size (inch) :
3/8'', 1/2'', 1'', 1 1/4'', 1 1/2'', 2''
Orifice Size (mm) :
13, 25, 38, 50
Voltages :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
Operation :
Pilot Acting
Operation Mode :
2/2 Way, Normally Closed
Body Material :
Stainless Steel
Seal Material :
NBR, VITON, EPDM
Pressure Range :
0.5 to 15.0 bar
Description

Electric Stainless Steel Solenoid Valve 1/2'' SPU225A-08 1/2'' SPU225A-12 24V DC 220V AC

1. SPU225A Stainless Steel pilot / servo General purpose 2/2 Way normally closed solenoid valve.

2. Port sizes: 3/8" SPU225A-03, 1/2" SPU225A-04, 3/4" SPU225A-06, 1" SPU225A-08, 1 1/4" SPU225A-12, 1 1/2" SPU225A-14, 2" SPU225A-20.

3. Port Options: G, BSP, NPT.

4. Construction: Body die cast stainless steel, stainless steel internals one piece core tube, AISI430F armature and AISI302 springs that extend valve life.

5. Seal options: NBR, EPDM or FKM all metal disc reinforced for longer life.

6. Pressure Range: 0.5 to 10 Bar differential, Max working 15 Bar

7. Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC, 240vAC, 380vAC and 415vAC

8. SPU225A solenoid valves are all 15 Bar pressure, function and leak tested prior to despatch.

9. Includes SPU225A-03, SPU225A-04, SPU225A-06, SPU225A-08, SPU225A-12, SPU225A-14 and SPU225A-20.

Main Dimension of SPU225A Series Stainless Steel Solenoid Valve:

Electric Stainless Steel Solenoid Valve 1/2'' SPU225A-08 1/2'' SPU225A-12 24V DC 220V AC

SPU225A Series
A
B
C
R
SPU225A-03
66.5
106.5
48.0
3/8''
SPU225A-04
66.5
106.5
48.0
1/2''
SPU225A-06
96.0
126.0
70.0
3/4''
SPU225A-08
96.0
126.0
70.0
1''
SPU225A-12
131.0
145.5
96.0
1-1/4''
SPU225A-14
131.0
145.5
96.0
1-1/2''


Technical Data of SPU225A Series Stainless Steel Solenoid Valve:

Model PU225A-03 PU225A-04 PU225A-06 PU225A-08 PU225A-12 PU225A-14 PU225A-20
SPU225A-03 SPU225A-04 SPU225A-06 SPU225A-08 SPU225A-12 SPU225A-14 SPU225A-20
Working Medium Compressed Air, Water, Light Oil
Operation Pilot Acting
Function 2 Way, Normally Closed
Orifice Size (mm) 13 13 25 25 38 38 50
Port Size 3/8'' 1/2'' 3/4'' 1'' 1 1/4'' 1 1/2'' 2''
Body Material Brass, Stainless Steel
Diaphragm Material NBR, VITON, EPDM
Working Pressure 0.5 to 10bar
Max. Pressure Resistance 15bar
Wokring Temperature -5 to +80℃
Voltages 220VAC, 110VAC, 24VDC, the other voltage is optional

Brando Factory Production of Solenoid Valves:

As a solenoid valve supplier, BRANDO supplys general purpose solenoid valve for general mediums control. Such as water, air, gas, oil. Offering the cost-effective solution for your projects. Available in brass, stainless steel and PVC material for your projects.


● Size Range: 1/4" to 2" (1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4")
● Voltage: 12 Volt DC, 24 Volt DC, 24 Volt AC, 110 Volt AC, 220 Volt AC
● Pressure: 0-10 bar / 0.3-16 bar
● Temperature: -10℃~180℃
● Material: Brass, Stainless Steel and PVC
● Structure: Direct Acting / Diaphragm / Pilot Operated
● Function: Normally Closed / Normally Open
● Connection Type: Threaded, Flanged, Tri Clamp
● Tolerance: ±10%

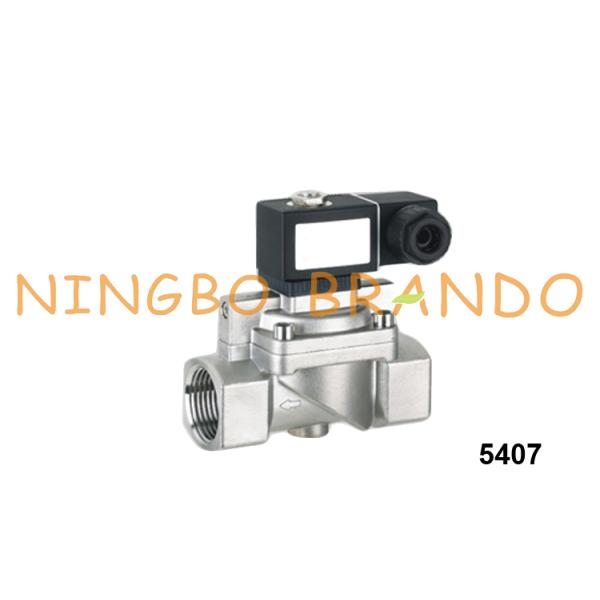

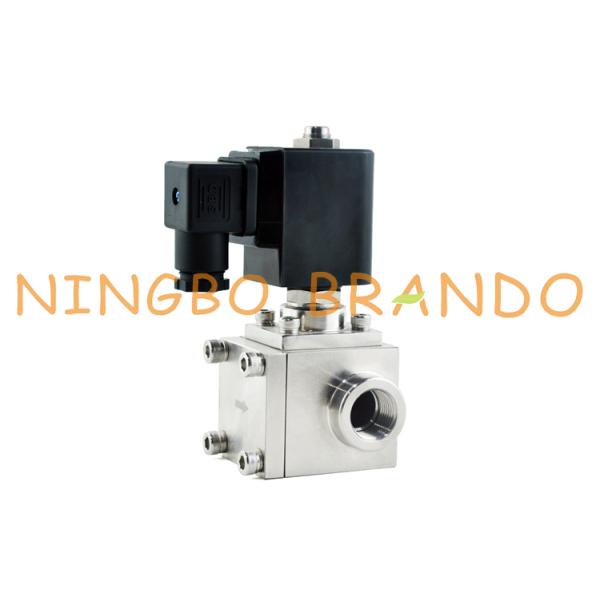

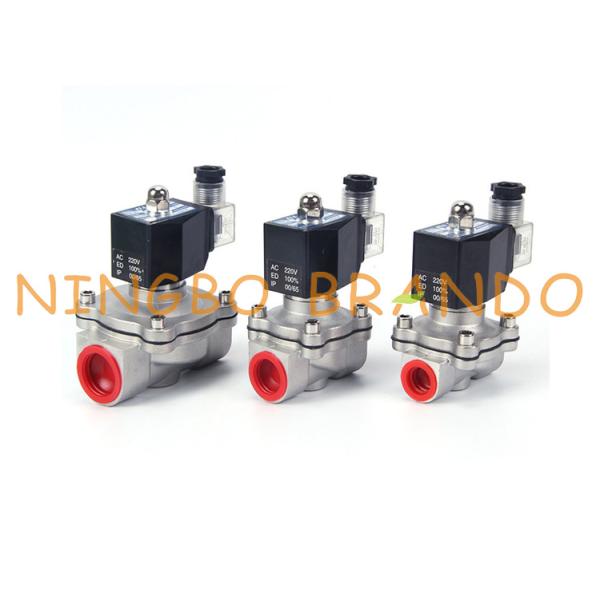

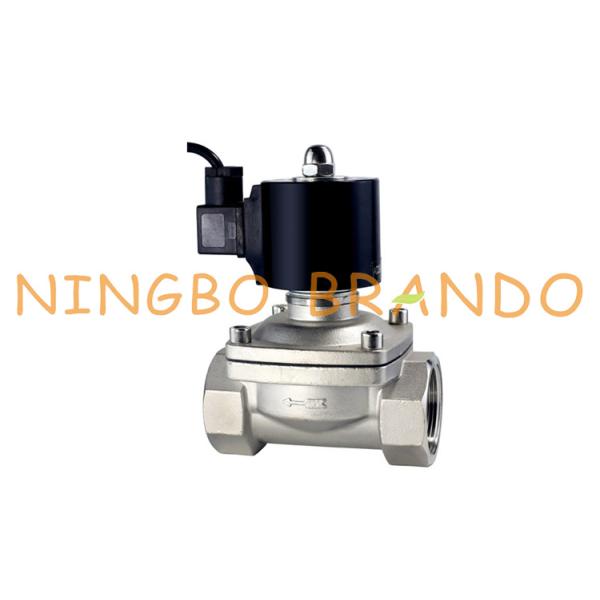

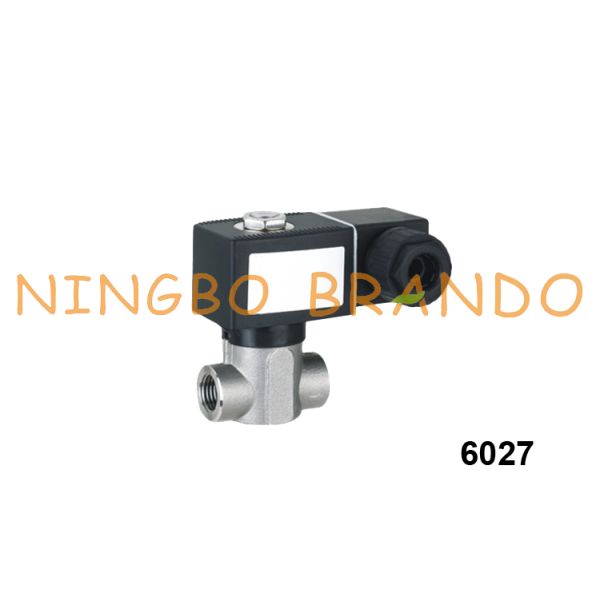

More Solenoid Valves for you to choose:

Electric Stainless Steel Solenoid Valve 1/2'' SPU225A-08 1/2'' SPU225A-12 24V DC 220V ACElectric Stainless Steel Solenoid Valve 1/2'' SPU225A-08 1/2'' SPU225A-12 24V DC 220V ACElectric Stainless Steel Solenoid Valve 1/2'' SPU225A-08 1/2'' SPU225A-12 24V DC 220V AC

Electric Stainless Steel Solenoid Valve 1/2'' SPU225A-08 1/2'' SPU225A-12 24V DC 220V ACElectric Stainless Steel Solenoid Valve 1/2'' SPU225A-08 1/2'' SPU225A-12 24V DC 220V ACElectric Stainless Steel Solenoid Valve 1/2'' SPU225A-08 1/2'' SPU225A-12 24V DC 220V AC

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
