Anti Corrosion Isolation PTFE Solenoid Valve Group For Chemical Acid Alkali
Anti Corrosion Isolation PTFE Solenoid Valve Group For Chemical Acid Alkali
Specifications
Brand Name :
BRANDO
Model Number :
6.16EAP010BM6, 6.16EAP015BM6
Certification :
CE, ISO
Place of Origin :
Ningbo, China
MOQ :
5pcs
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
10000pcs per month
Delivery Time :
7 working days
Packaging Details :
Box, Carton, Pallet
Product Name :
Solenoid Valve
Port Size :
M6
Orifice Size :
1mm, 1.5mm
Body Material :
PTFE
Seal Material :
FFKM, FKM
Working Temperature :
FFKM (-40 to +180ºC), FKM (-30 to +150ºC)
Working Media :
Chemical, Acid, Alkali, Corrosive Liquids, etc
Working Pressure :
0 to 3 bar
Operation :
Direct Acting
Function :
2 Way Normally Closed
Voltage :
12VDC, 24VDC
Description

Anti Corrosion Isolation PTFE Solenoid Valve Group For Chemical Acid Alkali

Product Features:

1. Working Medium: Chemical, Acid, Alkali, Corrosive Liquids, etc
2. Working Pressure: 0 to 3 bar
3. Working Temperature: FFKM (-40 to +180ºC), FKM (-30 to +150ºC)
4. Port Size: M6
5. Orifice Size: 1mm, 1.5mm
6. Body Material: PTFE
7. Seal Material: FFKM, FKM
8. Function: 2 Way Normally Closed
9. Operation: Direct Acting
10. Voltage: 12VDC, 24VDC
11. Application Examples: Analytical Instruments, Clinical Diagnostic Analyzers, Bio-Instrumentation, etc

Technical Data:

Model No
Port Size
Orifice Size
Working Pressure
Body
Seal
Function
Voltage
6.16EAP010BM6
M6
1.0mm
0 to 3 bar
PTFE
FFKM
FKM
2 Way NC
12VDC
24VDC
6.16EAP015BM6
M6
1.5mm
0 to 2 bar

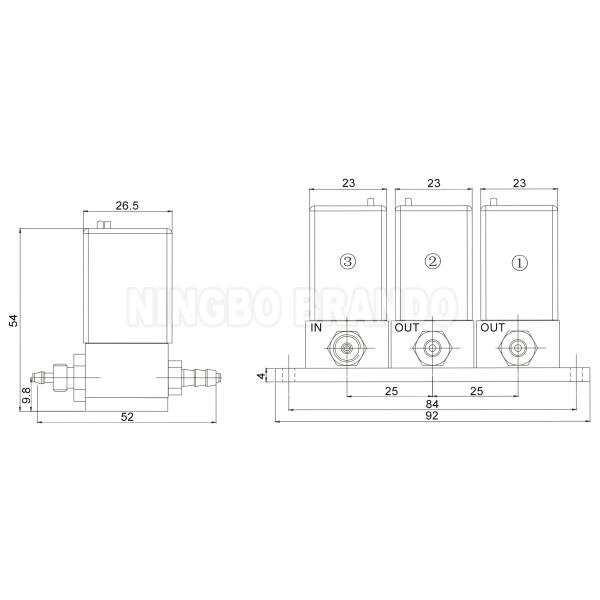

Main Dimension:

Anti Corrosion Isolation PTFE Solenoid Valve Group For Chemical Acid Alkali

Our Production:

Anti Corrosion Isolation PTFE Solenoid Valve Group For Chemical Acid Alkali

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of applications.

Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.

Similar Products:

Anti Corrosion Isolation PTFE Solenoid Valve Group For Chemical Acid Alkali Anti Corrosion Isolation PTFE Solenoid Valve Group For Chemical Acid Alkali Anti Corrosion Isolation PTFE Solenoid Valve Group For Chemical Acid Alkali

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
