170 bar Water Air Gas Brass High Pressure Solenoid Valve 1/8'' 1/4'' 3/8'' 220V 24V
170 bar Water Air Gas Brass High Pressure Solenoid Valve 1/8'' 1/4'' 3/8'' 220V 24V
Specifications
Brand Name :
BRANDO
Model Number :
H7B
Certification :
CE, ISO
Place of Origin :
Ningbo, China
MOQ :
4pcs
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
10000pcs per month
Delivery Time :
7 working days
Packaging Details :
Box, Carton, Pallet
Product Name :
High Pressure Solenoid Valve
Port Size :
1/8'', 1/4'', 3/8''
Thread Type :
G, NPT
Orifice Size :
1mm, 1.2mm, 1.5mm, 2mm, 2.5mm, 3mm, 4mm
Body Material :
Brass
Seal Material :
NBR, EPDM, FKM, PTFE, PEEK
Working Media :
Air, Water, Gas, Liquid, Light Oil, etc
Max Working Pressure :
170 bar
Operation :
Direct Operated
Function :
2/2 Way Normally Closed
Voltage :
220VAC, 110VAC, 24VAC, 24VDC, 12VDC
Description

170 bar Water Air Gas Brass High Pressure Solenoid Valve 1/8'' 1/4'' 3/8'' 220V 24V

Product Features:

1. Working Medium: Water, Air, Gas, Oil, Liquid, etc
2. Max Working Pressure: 170 bar
3. Body Material: Brass
4. Seal Material: NBR, EPDM, FKM, PTFE, PEEK
5. Port Size: 1/8'', 1/4'', 3/8''
6. Orifice Size: 1mm, 1.2mm, 1.5mm, 2mm, 2.5mm, 3mm, 4mm
7. Function: 2 Way Normally Closed
8. Operation: Direct Acting
9. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data:

Model No
Port
Orifice
CV
Min Pressure
(bar)
Max Pressure
(bar)
Body
Seal
Function
AC
DC
H7B010B01
1/8''
1mm
0.04
0
170
110
Brass
NBR
EPDM
FKM
PTFE
PEEK
2 Way NC
H7B012B01
1.2mm
0.05
150
100
H7B015B01
1.5mm
0.08
130
86
H7B020B01
2mm
0.14
90
60
H7B025B01
2.5mm
0.23
60
40
H7B030B01
3mm
0.25
30
20
H7B010B02
1/4''
1mm
0.04
170
110
H7B012B02
1.2mm
0.05
150
100
H7B015B02
1.5mm
0.08
130
86
H7B020B02
2mm
0.14
90
60
H7B025B02
2.5mm
0.23
60
40
H7B030B02
3mm
0.25
30
20
H7B025B03
3/8''
2.5mm
0.23
60
40
H7B030B03
3mm
0.25
30
20
H7B040B03
4mm
0.5
12
8

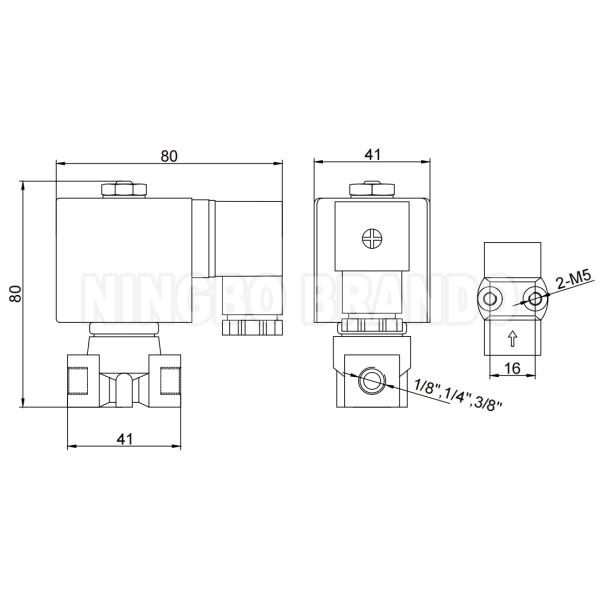

Main Dimension:

170 bar Water Air Gas Brass High Pressure Solenoid Valve 1/8'' 1/4'' 3/8'' 220V 24V

Our Production:

170 bar Water Air Gas Brass High Pressure Solenoid Valve 1/8'' 1/4'' 3/8'' 220V 24V

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of
applications.

Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.
