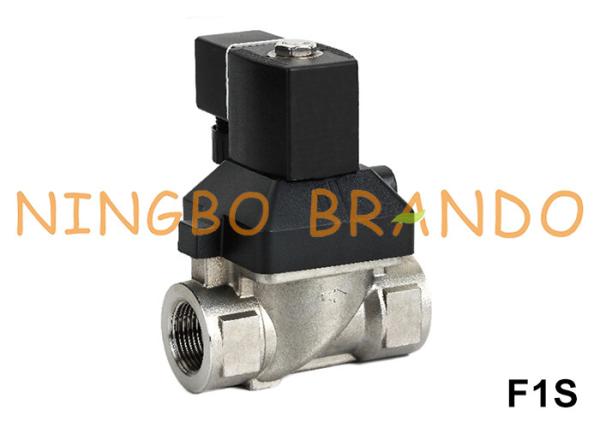

16 bar 316 Stainless Steel Solenoid Valve For Water Air Gas 3/8'' to 2'' 24V 110V 220V
16 bar 316 Stainless Steel Solenoid Valve For Water Air Gas 3/8'' to 2'' 24V 110V 220V
Specifications
Brand Name :
BRANDO
Model Number :
F1S
Certification :
CE, ISO
Place of Origin :
Ningbo, China
MOQ :
2pcs
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
10000pcs per month
Delivery Time :
7 working days
Packaging Details :
Box, Carton, Pallet
Product Name :
Solenoid Valve
Port Size :
3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
Orifice Size :
14mm, 25mm, 32mm, 40mm, 50mm
Body Material :
Stainless Steel 316
Diaphragm Material :
NBR, EPDM, FKM
Working Temperature :
NBR (-10 to +80℃), EPDM (-30 to +120℃), FKM (-30 to +150℃)
Working Media :
Water, Air, Gas, Liquid, etc
Working Pressure :
0.3 to 16 bar
Operation :
Diaphragm Pilot Operated
Function :
2 Way Normally Closed
Voltage :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Description

16 bar 316 Stainless Steel Solenoid Valve For Water Air Gas 3/8'' to 2'' 24V 110V 220V

This is a 316 stainless steel solenoid valve, 3/8'' to 2'' female threaded port size, 14 to 50mm orifice size, 2 way normally closed, diaphragm pilot operated, 0.3 to 16 bar working pressure, standard NBR diaphragm, can be customized as EPDM or FKM diaphragm to suit different working mediums, various voltages for your choice, such as 12VDC, 24VDC, 24VAC, 110VAC and 220VAC, etc. It is used for a wide arrange of industrial applications to control fluids.

Technical Data:

Model No
Port Size
Orifice Size
Kv
Working Pressure
Body
Seal
Function
Voltage
F1S14B03
3/8''
14mm
3
0.3 to 16 bar
SS316
NBR
EPDM
FKM
2 Way NC
12VDC
24VDC
24VAC
110VAC
220VAC
F1S14B04
1/2''
14mm
3.8
F1S14B06
3/4''
14mm
4.2
F1S25B06
3/4''
25mm
9
F1S25B25
1''
25mm
11
F1S32B32
1-1/4''
32mm
18
F1S40B32
1-1/4''
40mm
23
F1S32B40
1-1/2''
32mm
18
F1S40B40
1-1/2''
40mm
24
F1S40B50
2''
40mm
28
F1S50B50
2''
50mm
40

Main Dimension:

16 bar 316 Stainless Steel Solenoid Valve For Water Air Gas 3/8'' to 2'' 24V 110V 220V

Model No
Port
L
K
H
F1S14B03
3/8''
65
41
102
F1S14B04
1/2''
65
41
102
F1S14B06
3/4''
69
41
108
F1S25B06
3/4''
92
60
122
F1S25B25
1''
92
60
122
F1S32B32
1-1/4''
114
80
135
F1S40B32
1-1/4''
125
92
143
F1S32B40
1-1/2''
114
80
135
F1S40B40
1-1/2''
125
92
143
F1S40B50
2''
129
92
155
F1S50B50
2''
150
109
161

Our Production:

16 bar 316 Stainless Steel Solenoid Valve For Water Air Gas 3/8'' to 2'' 24V 110V 220V

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of
applications.

Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.
