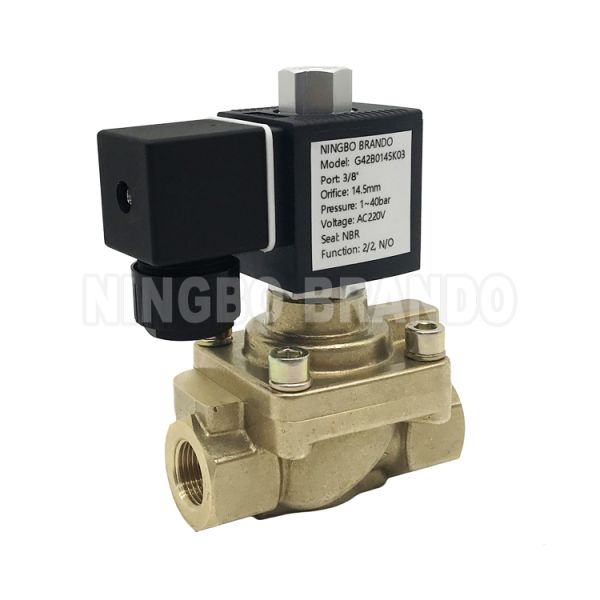

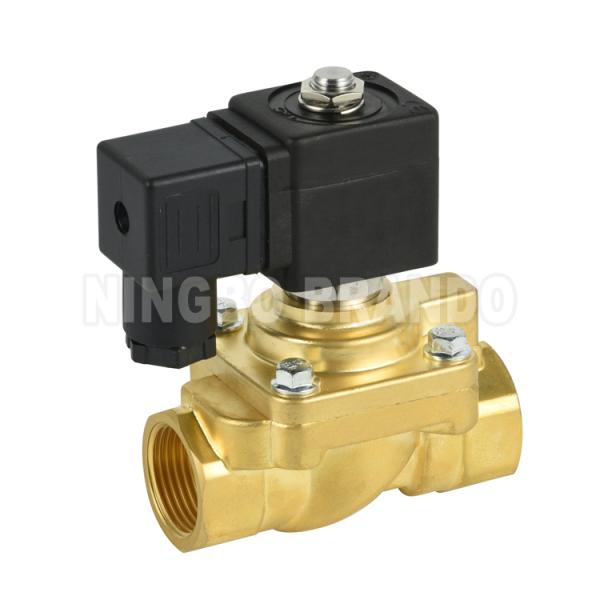

322H75 1/2'' 40 bar Parker Type Normally Open Solenoid Valve 24V 110V 220V
322H75 1/2'' 40 bar Parker Type Normally Open Solenoid Valve 24V 110V 220V
Specifications
Brand Name :
BRANDO
Model Number :
322H75
Certification :
CE, ISO
Place of Origin :
Ningbo, China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
50000pcs per month
Delivery Time :
10 to 15 working days
Packaging Details :
Box, Carton, Pallet
Product Name :
Solenoid Valve
Port Size :
1/2''
Orifice Size :
15mm
Body Material :
Brass
Seal Material :
NBR
Working Medium :
Air, Water, Neutral Gases & Liquids, etc
Working Pressure :
0.3 to 40 bar
Operation :
Diaphragm Pilot Operated
Function :
2 Way Normally Open
Voltage :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Application Examples :
Bottle Blowing Machine, Laser Cutting Machine, Air Compressor, etc
Description

322H75 1/2'' 40 bar Parker Type Normally Open Solenoid Valve 24V 110V 220V

Product Features:
1. Working Media: Air, Water, Neutral Gases & Liquids, etc
2. Working Pressure: 0.3 to 40 bar
3. Media Temperature: -5 to +80℃
4. Port Size: 1/4'', 3/8'', 1/2''
5. Orifice Size: 15mm
6. Body Material: Brass
7. Diaphragm Material: NBR
8. Function: 2 Way Normally Open
9. Operation: Diaphragm Pilot Operated
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
11. Application Examples: Bottle Blowing Machine, Laser Cutting Machine, Air Compressor, etc

Technical Data:​

Model No
322H71
322H73
322H75
Port Size
1/4''
3/8''
1/2''
Orifice Size
15mm
Kv
3.6
Function
2 Way Normally Open
Operation
Diaphragm Pilot Operated
Working Medium
Air, Water, Neutral Gases & Liquids, etc
Working Pressure
0.3 to 40 bar
Voltage
12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

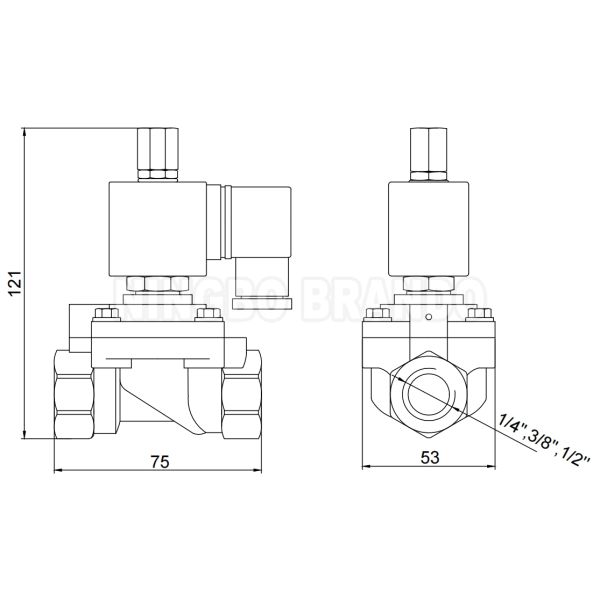

Main Dimension:

322H75 1/2'' 40 bar Parker Type Normally Open Solenoid Valve 24V 110V 220V

Our Production:

322H75 1/2'' 40 bar Parker Type Normally Open Solenoid Valve 24V 110V 220V

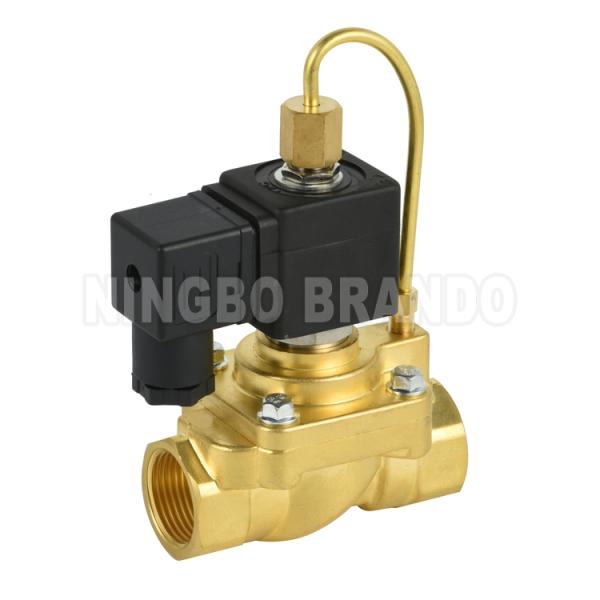

Similar Items:

322H75 1/2'' 40 bar Parker Type Normally Open Solenoid Valve 24V 110V 220V 322H75 1/2'' 40 bar Parker Type Normally Open Solenoid Valve 24V 110V 220V 322H75 1/2'' 40 bar Parker Type Normally Open Solenoid Valve 24V 110V 220V 322H75 1/2'' 40 bar Parker Type Normally Open Solenoid Valve 24V 110V 220V

1/2'' 40 bar

2 Way NC

1/2'' 40 bar

2 Way NO

1/2'' 40 bar

2 Way NC

1/2'' 40 bar

2 Way NO


Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
