SCG551A001MS 3/2 NC - 5/2 NAMUR Solenoid Valve 24VDC 115VAC 230VAC
SCG551A001MS 3/2 NC - 5/2 NAMUR Solenoid Valve 24VDC 115VAC 230VAC
SCG551A001MS 3/2 NC - 5/2 NAMUR Solenoid Valve 24VDC 115VAC 230VAC
SCG551A001MS 3/2 NC - 5/2 NAMUR Solenoid Valve 24VDC 115VAC 230VAC
SCG551A001MS 3/2 NC - 5/2 NAMUR Solenoid Valve 24VDC 115VAC 230VAC
SCG551A001MS 3/2 NC - 5/2 NAMUR Solenoid Valve 24VDC 115VAC 230VAC
Specifications
Brand Name :
BRANDO
Model Number :
SCG551A001MS
Certification :
CE, ISO
Place of Origin :
Ningbo, China
MOQ :
50pcs
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
200000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Box, Carton, Pallet
Product Name :
NAMUR Solenoid Valve
Working Media :
Air, Gas
Port Size :
1/4''
Orifice Size :
6mm
Body Material :
Aluminum
Function :
3/2 NC or 5/2
Pressure Range :
2 to 10 bar
Voltage :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Description

SCG551A001MS 3/2 NC - 5/2 NAMUR Solenoid Valve 24VDC 115VAC 230VAC

Product Features:
1. The solenoid operated spool valves have threaded port connections and NAMUR interface.
2. The same spool valve can be adapted for 3/2 NC or 5/2 functions for controlling double-acting and single-acting actuators.
3. All the exhaust ports of the spool valve are connectable, providing better environmental protection. Particularly recommended for sensitive areas, such as clean rooms, and applications in the pharmaceutical and food processing sectors.

Technical Data:

Pipe
Size
Orifice
Size
Flow
Coefficient
Kv
Operating Pressure Differential (bar)
Coil
Model No
Option
Min
Max
Manual Operator
(G)
(mm)
(m³/h)
(l/min)
3/2 NC - 5/2 - Solenoid air pilot operated - Spring Return (Single Solenoid, Monostable)
1/4''
6
0.6
10
2
10
IP65
SCG551A001
MS
3/8''
12
2.49
41.5
2
10
IP65
SCG552A001
MS
1/2''
13
2.49
41.5
2
10
IP65
SCG553A001
MS
3/2 NC - 5/2 - Solenoid air pilot operated and return (Double Solenoid, Bistable)
1/4''
6
0.6
10
2
10
IP65
SCG551A002
MS
3/8''
12
2.49
41.5
2
10
IP65
SCG552A002
MS
1/2''
13
2.49
41.5
2
10
IP65
SCG553A002
MS

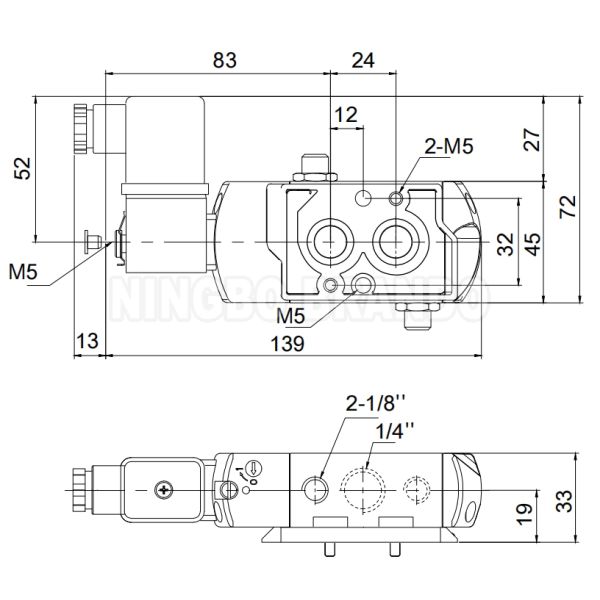

SCG551A001MS Dimension:

SCG551A001MS 3/2 NC - 5/2 NAMUR Solenoid Valve 24VDC 115VAC 230VAC

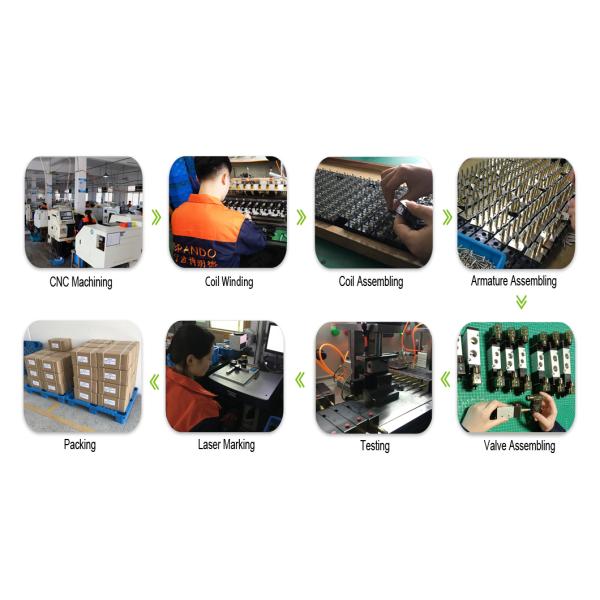

Our Production:

SCG551A001MS 3/2 NC - 5/2 NAMUR Solenoid Valve 24VDC 115VAC 230VAC


Related Products:

SCG551A001MS 3/2 NC - 5/2 NAMUR Solenoid Valve 24VDC 115VAC 230VAC SCG551A001MS 3/2 NC - 5/2 NAMUR Solenoid Valve 24VDC 115VAC 230VAC SCG551A001MS 3/2 NC - 5/2 NAMUR Solenoid Valve 24VDC 115VAC 230VAC

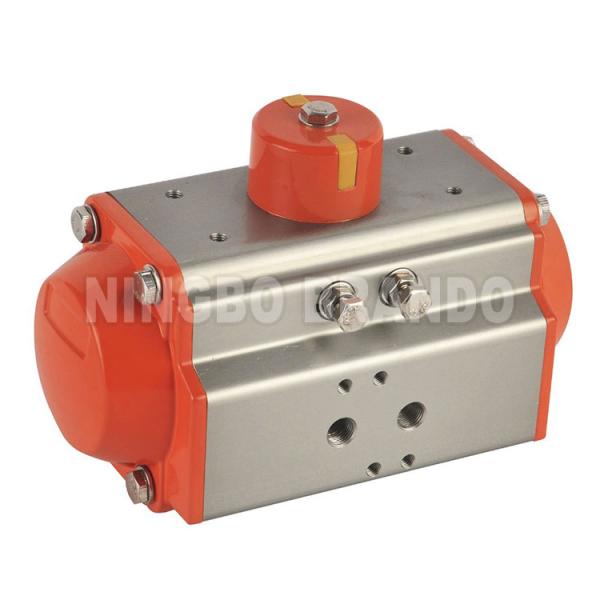

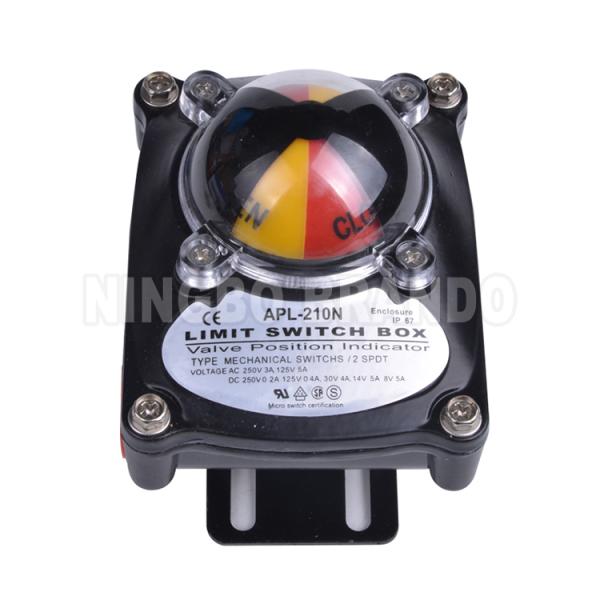

Pneumatic Actuator Pneumatic Limit Switch Pneumatic Positioner
SCG551A001MS 3/2 NC - 5/2 NAMUR Solenoid Valve 24VDC 115VAC 230VAC SCG551A001MS 3/2 NC - 5/2 NAMUR Solenoid Valve 24VDC 115VAC 230VAC SCG551A001MS 3/2 NC - 5/2 NAMUR Solenoid Valve 24VDC 115VAC 230VAC

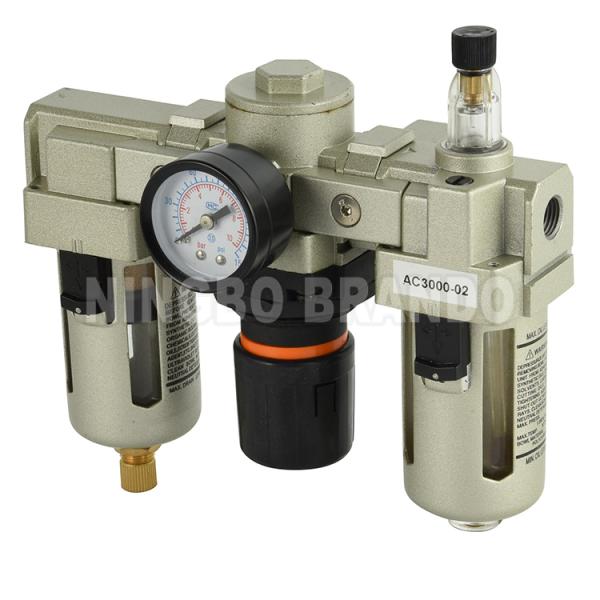

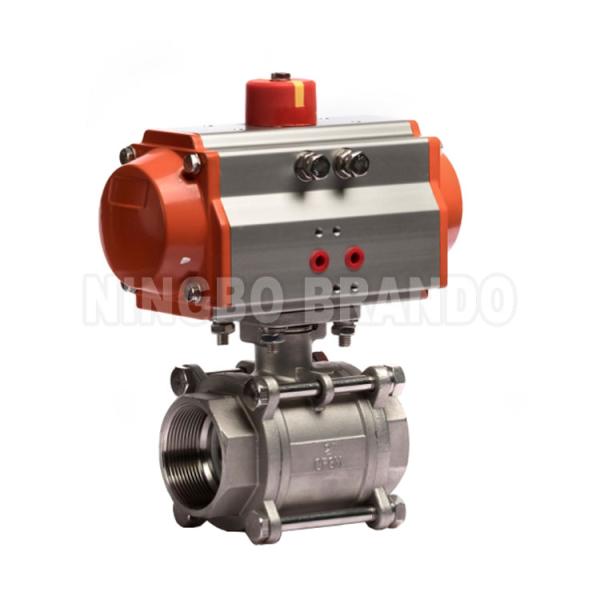

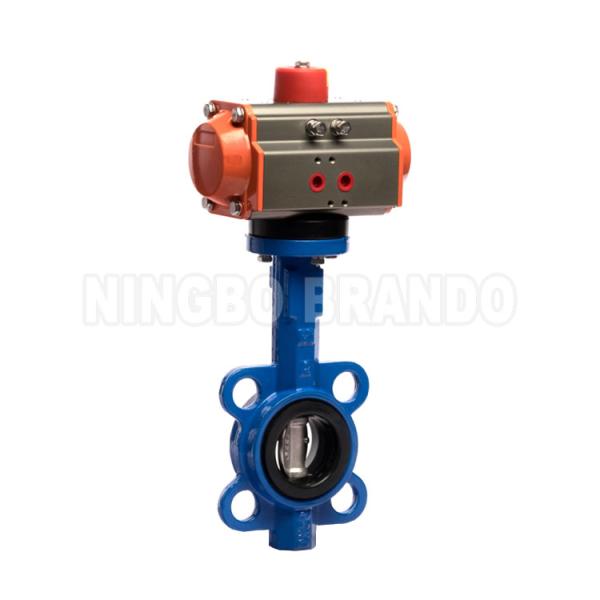

Pneumatic FRL Unit Pneumatic Ball Valve Pneumatic Butterfly Valve

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
