Pulse Valve Repair Kit Solenoid Valve Diaphragm With Center Distance 98mm
Pulse Valve Repair Kit Solenoid Valve Diaphragm With Center Distance 98mm
Pulse Valve Repair Kit Solenoid Valve Diaphragm With Center Distance 98mm
Pulse Valve Repair Kit Solenoid Valve Diaphragm With Center Distance 98mm
Specifications
Brand Name :
BRANDO
Model Number :
D40
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 pc
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
50k pcs per month
Delivery Time :
1 day
Packaging Details :
pvc bag and carton
Size :
1.5 Inch
Match for :
Pulse valve DMF-Z-40S, DMF-ZM-40S, DMF-Y-40S
Material :
NBR or Viton
Center Distance :
98mm
Mounting Hole Number :
6pcs
Mounting Hole ID :
8.5mm
Other size :
could be customized
Spring Holding Board :
Rubber or Nylon
Description

Solenoid Valve Diaphragm Center Distance 98mm Mostly Used for Repair Kit of DMF-Z-40S DMF-Y-40S Pulse Valve

D40 diaphragm is popullar used as repair diaphragm kits for BFEC pulse valve DMF-Z-40S, DMF-Y-40S, DMF-ZM-40S, DMF-ZF-40S, and other type 1.5 inch pulse valve, with good function and long term working life.

Quick details:

1, material: NBR or Viton or customized

2, Center to center distance for mounting is 98mm

3, Mounting hole number: 6pcs

4, Mounting hile ID: 8.5mm

5, Working medium: clean air

6, Working life: over 1 million times or at least 2 years

Application of diaphragm example:

Diaphragm has been widely used in automobiles, controllers, household gas facilities and appliances the form of pressure sensors, actuators ON-OFF switches.

If you need other kinds of diaphragm, we highly welcome your drawing or sample, we can develop for you to satisfy all your requirements.

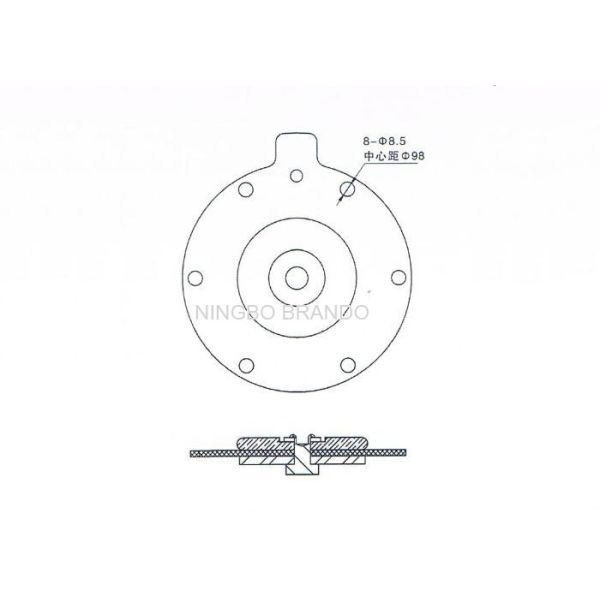

Overall diemsnions of D40 diaphragm for DMF-Z-40S DMF-Y-40S DMF-ZM-40S DMF-ZF-40S pulse valve:

Pulse Valve Repair Kit Solenoid Valve Diaphragm With Center Distance 98mm

More pulse valve diaphragm we have, pls contact us:

Pulse Valve Repair Kit Solenoid Valve Diaphragm With Center Distance 98mm Model Number D40 Diaphragm application pulse valve
Can be used for DMF-Z-40S DMF-Y-40S DMF-ZM-40S DMF-ZF-40S Pulse Valve Repair Kit Solenoid Valve Diaphragm With Center Distance 98mm
Center distance 98mm
Outside diameter /
Mounting hole number 6
Working temperature -20~80℃
Working pressure 0.2Mpa~0.6Mpa
Working medium clean air
Working life More than 1 million times or at least 2 years

Pulse Valve Repair Kit Solenoid Valve Diaphragm With Center Distance 98mm Model Number D25 Diaphragm application pulse valve
Can be used for DMF-Z-25 DMF-Y-25 DMF-ZM-25 DMF-ZF-25 Pulse Valve Repair Kit Solenoid Valve Diaphragm With Center Distance 98mm
Center distance 83mm
Outside diameter /
Mounting hole number 5
Working temperature -20~80℃
Working pressure 0.2Mpa~0.6Mpa
Working medium clean air
Working life More than 1 million times or at least 2 years

Pulse Valve Repair Kit Solenoid Valve Diaphragm With Center Distance 98mm Model Number D20B Diaphragm application pulse valve
Can be used for DMF-ZL-B Pulse Valve Repair Kit Solenoid Valve Diaphragm With Center Distance 98mm
Center distance 74mm
Outside diameter /
Mounting hole number 6
Working temperature -20~80℃
Working pressure 0.2Mpa~0.6Mpa
Working medium clean air
Working life More than 1 million times or at least 2 years

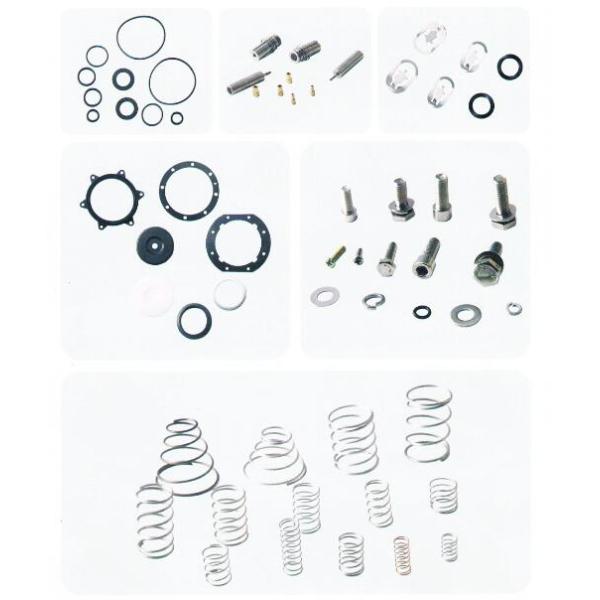

Welcome your any question, we also produce and supply other kits for all brands pulse valve:

Pulse Valve Repair Kit Solenoid Valve Diaphragm With Center Distance 98mm
