DAIRYMASTER Milk Pulsator Norgren Type Solenoid Valve Coil P206 12VDC 7W 7.5W
DAIRYMASTER Milk Pulsator Norgren Type Solenoid Valve Coil P206 12VDC 7W 7.5W
DAIRYMASTER Milk Pulsator Norgren Type Solenoid Valve Coil P206 12VDC 7W 7.5W
DAIRYMASTER Milk Pulsator Norgren Type Solenoid Valve Coil P206 12VDC 7W 7.5W
Specifications
Brand Name :
BRANDO
Model Number :
BB09029048
Certification :
None
Place of Origin :
Ningbo, China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
Negotiation
Packaging Details :
Box, Carton, Pallet
Product Name :
Solenoid Valve Coil
Reference Number 1 :
12J, 13J, 14J, 18J, 19J, 82J, 83J, 84J, 88J, 89J
Reference Number 2 :
QM/48/12J/21, QM/48/13J/21, QM/48/14J/21, QM/48/18J/21, QM/48/19J/21, QM/48/82J/21, QM/48/83J/21, QM/48/84J/21, QM/48/88J/21, QM/48/89J/21
Voltage :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Power :
2W, 6W, 7.5W, 2.5VA, 5VA, 8VA
Connector :
DIN43650B
Protection Class :
IP65
Duty :
100% ED
Description

DAIRYMASTER Milk Pulsator Solenoid Valve Coil

This solenoid coil is popularly used in DAIRYMASATER milk pulsator, same with norgren solenoid coil 12J, 13J, 14J, 18J, 19J, 82J, 83J, 84J, 88J, 89J, QM/48/12J/21, QM/48/13J/21, QM/48/14J/21, QM/48/18J/21, QM/48/19J/21, QM/48/82J/21, QM/48/83J/21, QM/48/84J/21, QM/48/88J/21, QM/48/89J/21. Solenoid Coil Standard Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC. Solenoid Coil Standard Power: 2W, 3W, 6W, 7W, 7.5W, 9W, 2.5VA, 5VA, 7VA. The solenoid coil is integral in the operation of a solenoid valve. It is what converts the electric current into a magnetic field which in turn allows the operation of the solenoid valve.

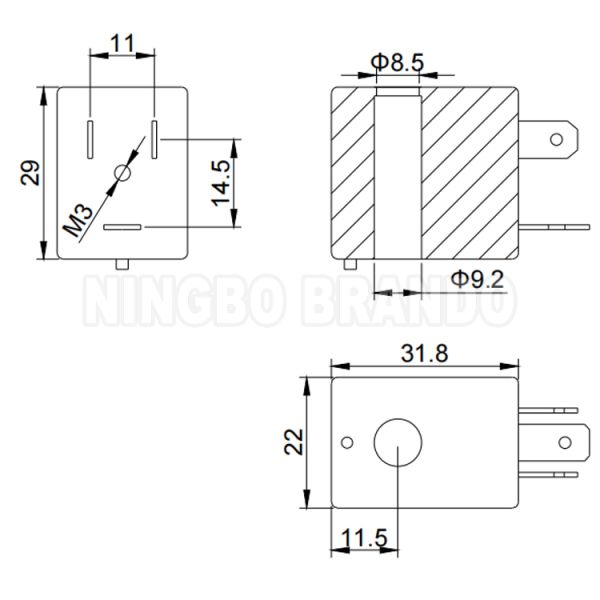

Technical Data:

DAIRYMASTER Milk Pulsator Norgren Type Solenoid Valve Coil P206 12VDC 7W 7.5W
BRANDO Model
BB09029048
Voltage
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Power
2W, 3W, 6W, 7W, 7.5W,
2.5VA, 5VA, 7VA, 8VA
Other voltage and power can be customized
Connector
DIN43650B

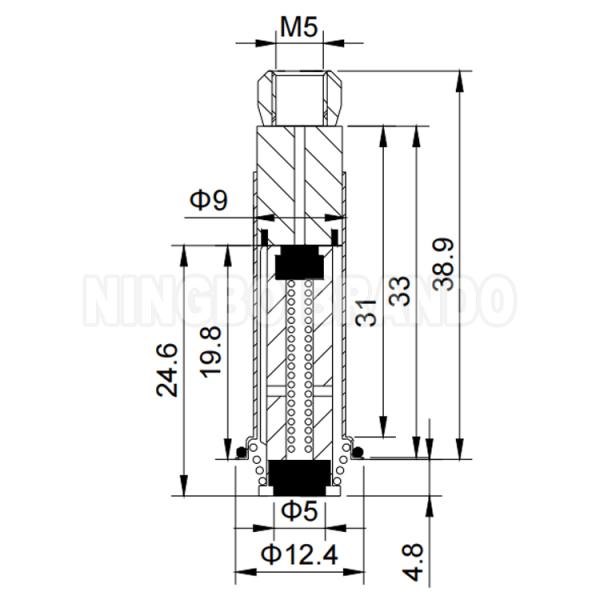

Fitted Armature:

DAIRYMASTER Milk Pulsator Norgren Type Solenoid Valve Coil P206 12VDC 7W 7.5W
BRANDO Model
BAPC309031025
Function
3 Way Normally Closed
Plunger Tube Material
Stainless Steel
Seal Material
NBR
Connection
Flange with Oring Groove

Our Production:

DAIRYMASTER Milk Pulsator Norgren Type Solenoid Valve Coil P206 12VDC 7W 7.5W

Related Products:

DAIRYMASTER Milk Pulsator Norgren Type Solenoid Valve Coil P206 12VDC 7W 7.5W DAIRYMASTER Milk Pulsator Norgren Type Solenoid Valve Coil P206 12VDC 7W 7.5W DAIRYMASTER Milk Pulsator Norgren Type Solenoid Valve Coil P206 12VDC 7W 7.5W DAIRYMASTER Milk Pulsator Norgren Type Solenoid Valve Coil P206 12VDC 7W 7.5W
DAIRYMASTER Milk Pulsator Norgren Type Solenoid Valve Coil P206 12VDC 7W 7.5W DAIRYMASTER Milk Pulsator Norgren Type Solenoid Valve Coil P206 12VDC 7W 7.5W DAIRYMASTER Milk Pulsator Norgren Type Solenoid Valve Coil P206 12VDC 7W 7.5W DAIRYMASTER Milk Pulsator Norgren Type Solenoid Valve Coil P206 12VDC 7W 7.5W

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
